Product info:

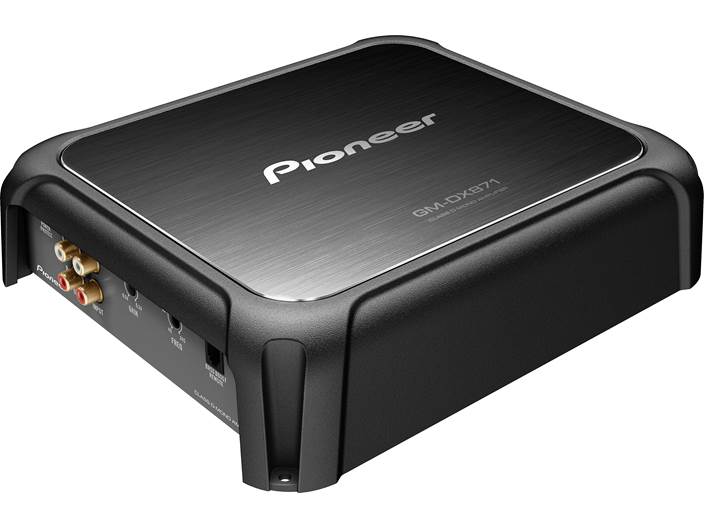

- mono subwoofer amplifier
- 300 watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)
- 800 watts RMS x 1 at 1 ohm
- CTA-2006 compliant
- Class D amp technology
- frequency response: 10-240 Hz
- variable low-pass filter (40-240 Hz, 12 dB per octave)
- wired remote variable bass boost (0-18 dB at 50 Hz)
More Features:

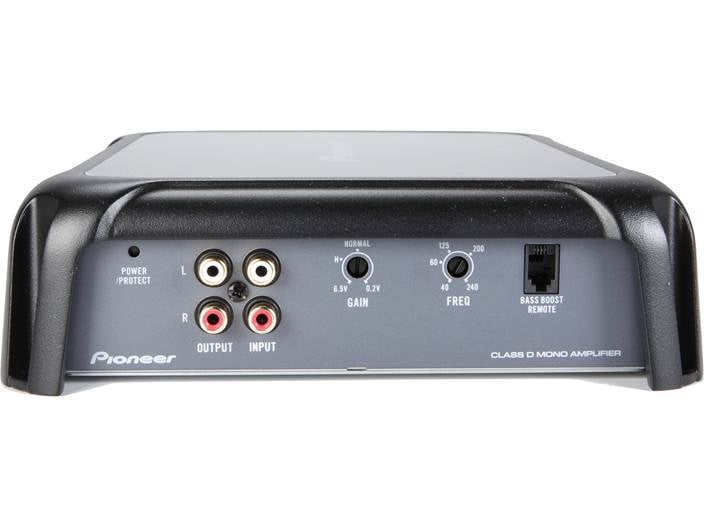

- preamp inputs and outputs
- gold-plated RCA connections
- speaker-level inputs via supplied RCA-type adapters
- signal-sensing turn-on with speaker-level inputs
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended

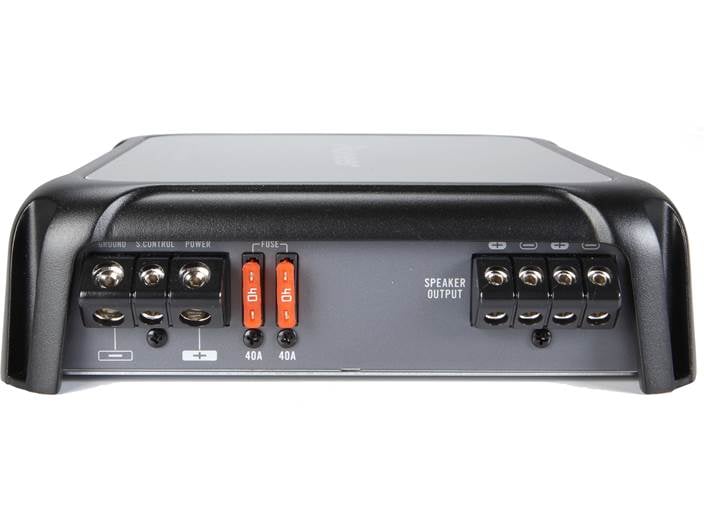

- fuse rating: 40A x 2
- dimensions: 10-3/8"W x 2-3/8"H x 7-7/8"D
- warranty: 1 year
- MFR # GM-DX871
- Item # 130GMDX871
-
Pioneer GM-DX871 owner's manual

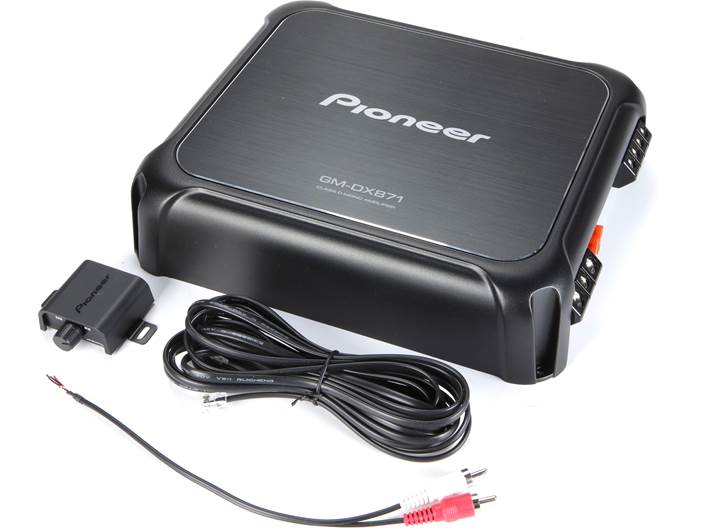

- Mono subwoofer amplifier
- Two 40-amp ATO fuses (installed)
- 8" Speaker wire to RCA input adapter

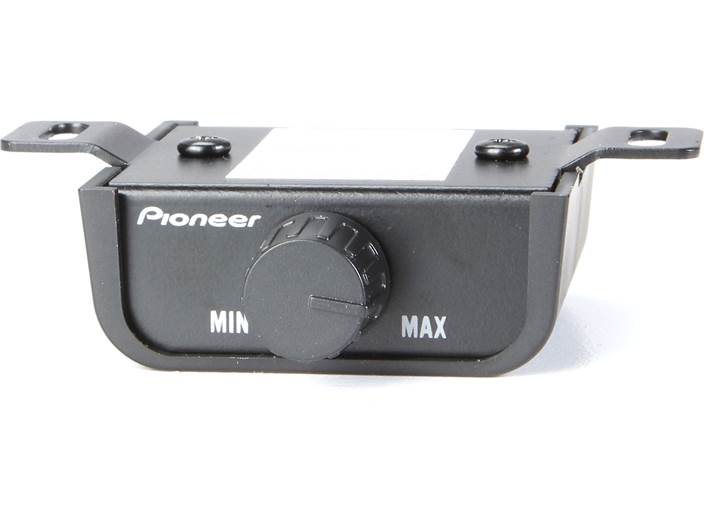

- Wired Bass Boost Remote
- 16' Bass Boost Remote cable (RJ-14 plug on both ends)
- Four 3/4" Screws
- Two 3/8" Screws
- 3mm Allen wrench
- Owner's manual (English/ French)
- Owner's manual (Spanish)
- Warranty information
| Performance | ||
|---|---|---|
|
|
300 x 1 |
|
|
|
1600 x 1 | |
|
|
500 x 1 | |
| Power at 1 Ohm (Watts x Channels) | 800 x 1 | |
|
|
N/A | |
|
|
N/A | |
|
|
1 | |
|
|
10-240 Hz | |
|
|
1% | |
|
|
75 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
Yes | |
|
|
40-240 Hz | |
|
|
12 dB/octave | |
|
|
N/A | |
|
|
N/A | |
|
|
0-18 dB | |
|
|
50 Hz | |
|
|
No | |
|
|
80 | |
|
|
Yes | |
|
|
2 | |
|
|
10-7/8 | |
|
|
2-3/8 | |
|
|
8-1/2 | |
|
|
1 Year | |
|
|
1 Year | |
