Product info:
General features:

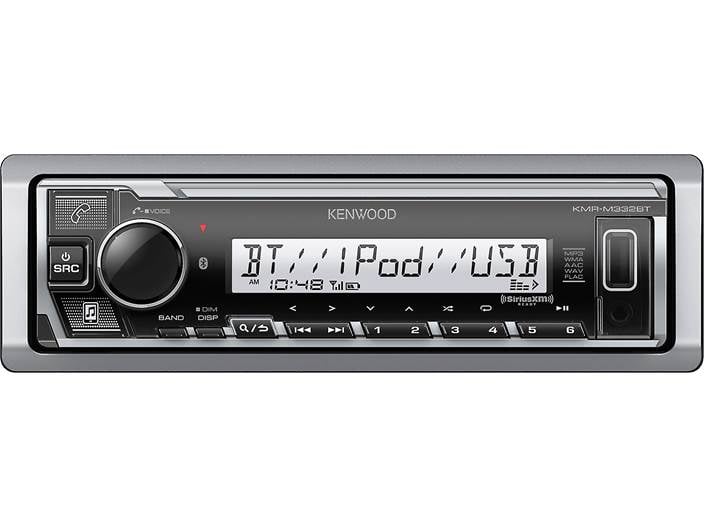

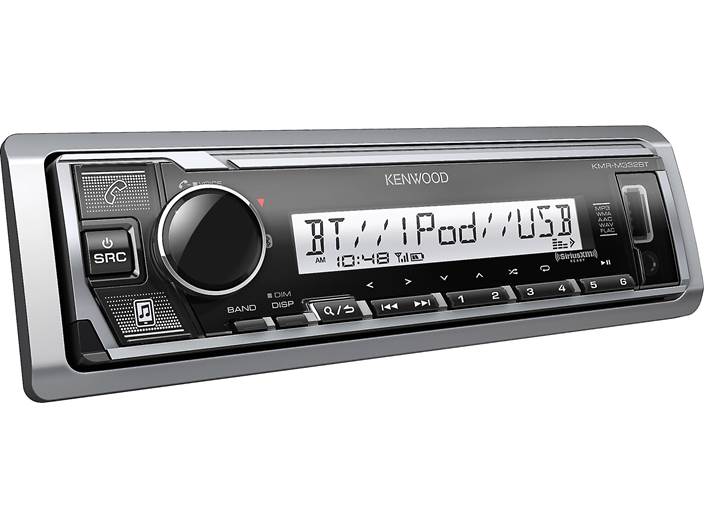

- marine digital media receiver (does not play CDs)
- built-in Bluetooth with dual phone connection
- variable-color illumination
- plays MP3, AAC, WAV, WMA, and FLAC music files
- control your music and audio settings with Kenwood's remote app
- anti-glare positive backlit LCD display with variable color settings
Marine-Specific features:
- conformal-coated PCB circuit board
- water-resistant, but not waterproof; a universal marine stereo cover is still recommended
- covered USB and AUX inputs
- compatible with Kenwood KCA-RC35M or KCA-RC55M wired marine remotes
Smartphone features:
- enjoy and control music via USB from Pandora and Apple Music (iPhone® only)
Audio features:
- Drive EQ adjusts sound to compensate for exterior noise
- digital time alignment to ensure a "sweet spot"
- 13-band EQ
- low-pass filter and sub level control
Expandability:
- compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
- inputs: front USB and AUX inputs

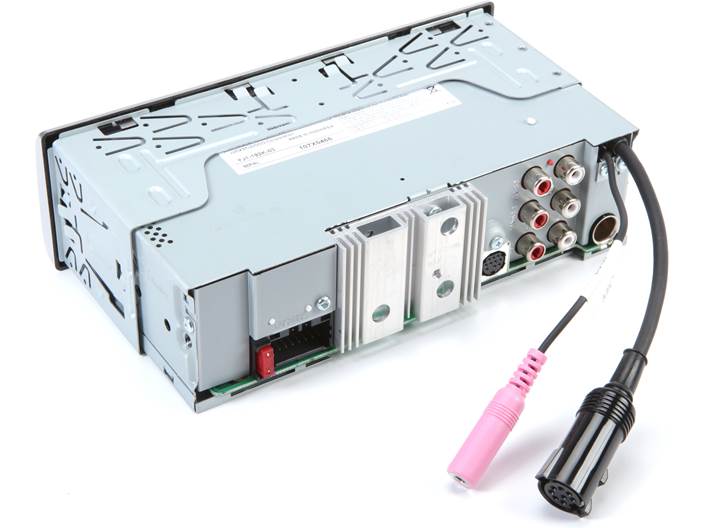

- outputs: 6-channel preamp outputs (4-volt front, rear, sub)
Other features and specs:
- built-in MOSFET amplifier (22 watts RMS/50 peak x 4 channels)
- removable theft-deterrent faceplate
- choose English- or Spanish-language display
- rear-wired Bluetooth microphone included
- chassis width: 7.175"
- chassis height: 2.085
- nose width: 7.405
- nose height: 2.315
- warranty: 1 year
- MFR # KMR-M332BT
- Item # 113M332BT
-
Kenwood KMR-M332BT owner's manual

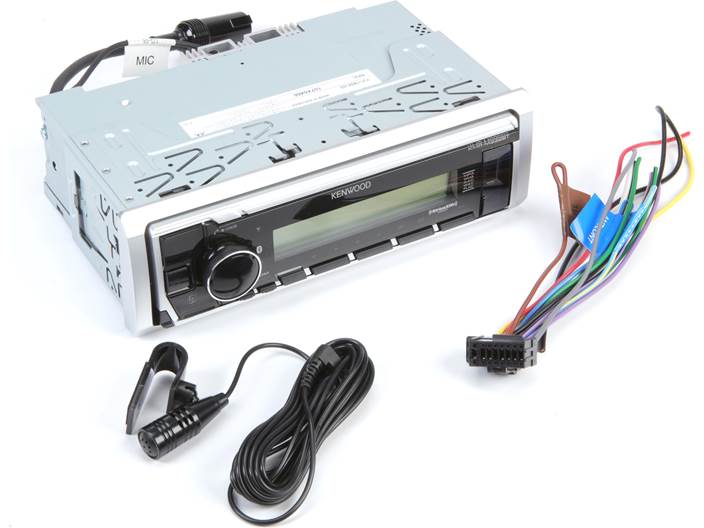

- Marine digital media receiver (10A fuse)
- Face (attached)
- Trim ring (attached)
- Sleeve (installed)

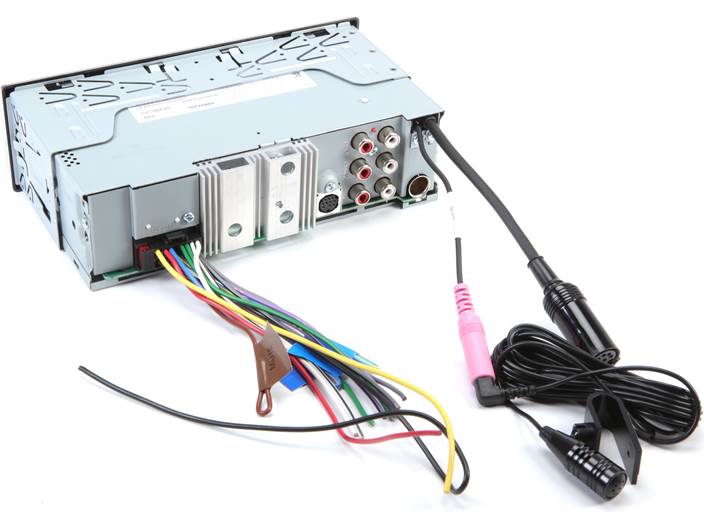

- Wiring harness
- Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- 4 Counter-sunk ISO-screws
- 4 Pan-head ISO-screws
- 2 Removal tools
- Quick Start Gude
- Warranty Card
| General | ||
|---|---|---|
|
|
--- | |
|
|
22 watts | |
| Expandability | ||
|---|---|---|
|
|
Front | |
|
|
--- | |
|
|
Front | |
|
|
1.5A | |
| Backup Camera Input | No | |
|
|
No | |
| Camera Input (Marine) | No | |
|
|
6-channel | |
|
|
Yes | |
|
|
No | |
|
|
USB | |
| Smartphone Control | ||
|---|---|---|
|
|
5S and newer | |
|
|
No | |
|
|
Bluetooth | |
|
|
Yes | |
|
|
No | |
|
|
No | |
| Tuner | ||
|---|---|---|
|
|
8.2 dBf | |
|
|
Yes | |
|
|
Seek | |
|
|
Yes | |
| File Playback | ||
|---|---|---|
|
|
MP3,WMA,AAC,WAV,FLAC | |
|
|
FLAC (96kHz) | |
| Navigation Control | ||
|---|---|---|
|
|
--- | |
|
|
--- | |
|
|
--- | |
| Features & Specs | ||
|---|---|---|
|
|
Built-in | |
|
|
4.2 | |
|
|
SiriusXM 2.0 | |
|
|
N | |
|
|
No | |
|
|
4 | |
| Screen Size | 0 | |
|
|
N/A | |
|
|
Variable | |
|
|
Variable | |
|
|
13 | |
|
|
N | |
|
|
Adapter required | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Dimensions | ||
|---|---|---|
| Chassis Depth | 4.365 | |
| Chassis Width | 7.175 | |
| Chassis Height | 2.085 | |
