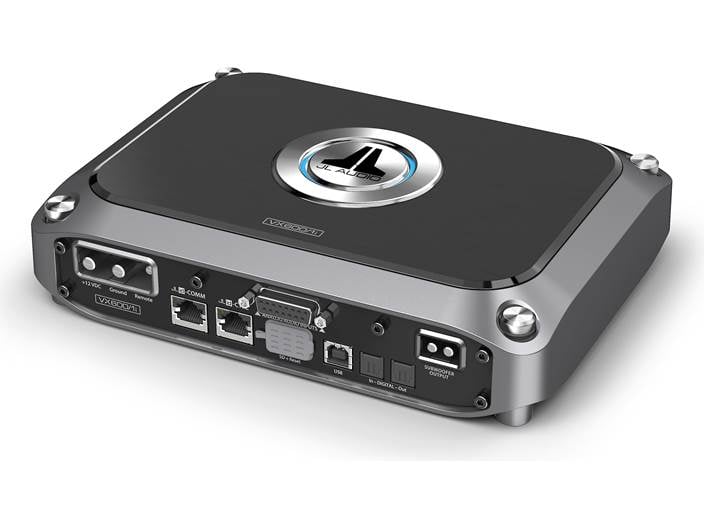

JL Audio VX600/1i Mono subwoofer amplifier with digital signal processing — 600 watts RMS x 1 at 2 ohms

Product info:

• mono subwoofer amplifier
• 400 watts RMS x 1 at 4 ohms (600 watts RMS at 2 ohms)
• Class D amplifier design with NexD2™ switching amp technology

Digital Signal Processing:

• 24-bit 96 kHz digital processing
• DSP adjustments and settings made with JL Audio's TüN app (PC and Mac) via USB
• input routing and mixing
• adjustable gain controls with clip indication
• fully adjustable high-pass, low-pass, and bandpass filters
  • selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
• 10-band EQ
• phase and polarity control
• time alignment in 0.01 ms (1/8") increments

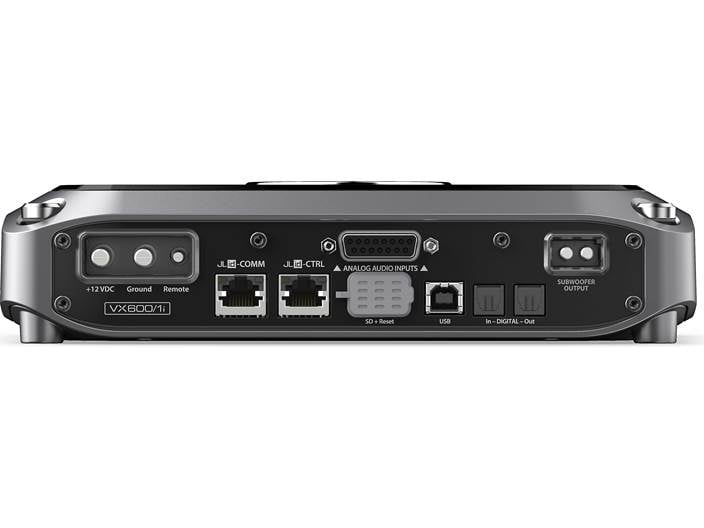

Connection Features

• differential-balanced inputs eliminate noise coming from your vehicle's electrical system
• preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
  • high-level inputs — up to 16 volts RMS (about 60 watts)
  • DC offset or signal sensing auto turn-on eliminates need for remote lead
• 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
• 2-channel analog preamp output (4V RMS)
• JLid™ connections for optional Network Hub and Digital Remote Control
• USB connection for device running TüN app (6-foot cable included)
• wiring, fuse, and hardware not included with amplifier
  • 4-gauge power and ground leads and a 50-amp fuse recommended
• 9-1/16"W x 2-1/8"H x 6-3/4"D
• warranty: 2 years

• MFR # 010-03331-00
• Item # 13698638

• JL Audio VX600/1i owner's manual



• Monoblock amplifier
• Power connector
• 14" Analog Input harness (15-pin D-Sub/4 RCA)
• Subwoofer output connector
• 18" Speaker wire loom
• "Sub" wire label
• 6' USB cable (Type A USB on one end and Type B USB on other end)
• 4 Corner caps
• Corner cap tool
• 2 Silver thumbscrews
• 2 Black hex cap machine screws
• 2.5mm Hex wrench
• 3mm Hex wrench
• JL Audio logo badge
• Connection Guide
• Registration card
