Product info:

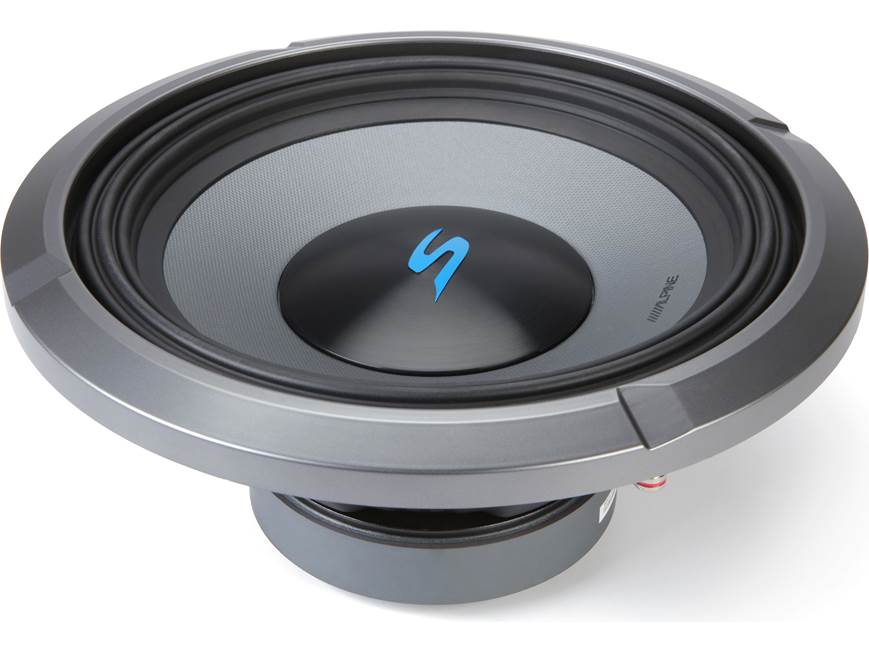

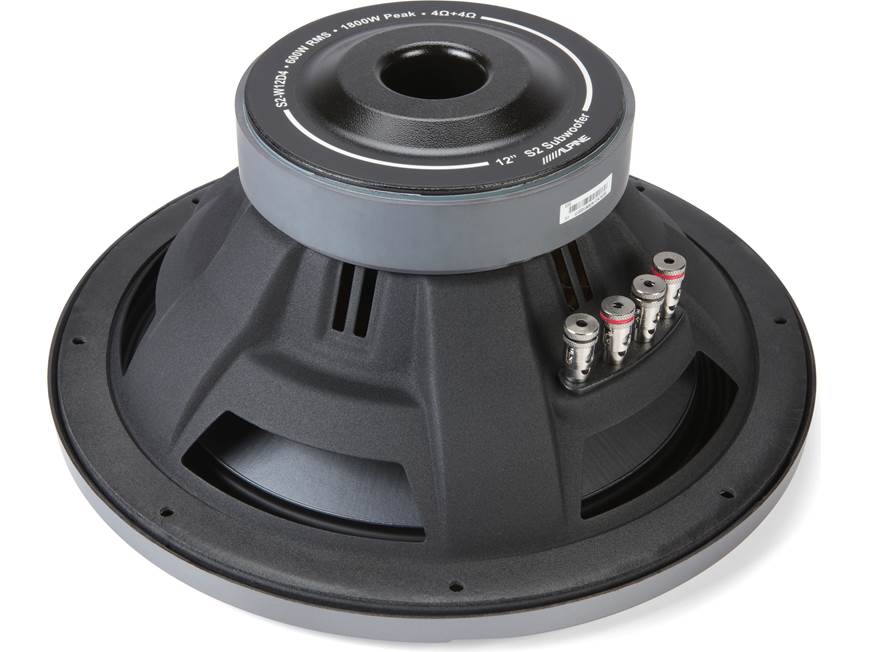

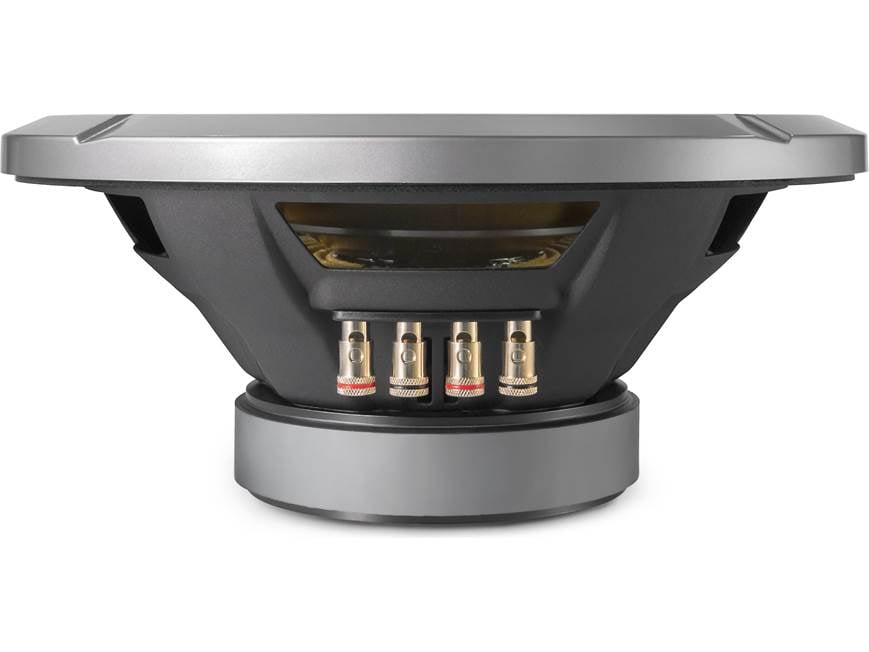

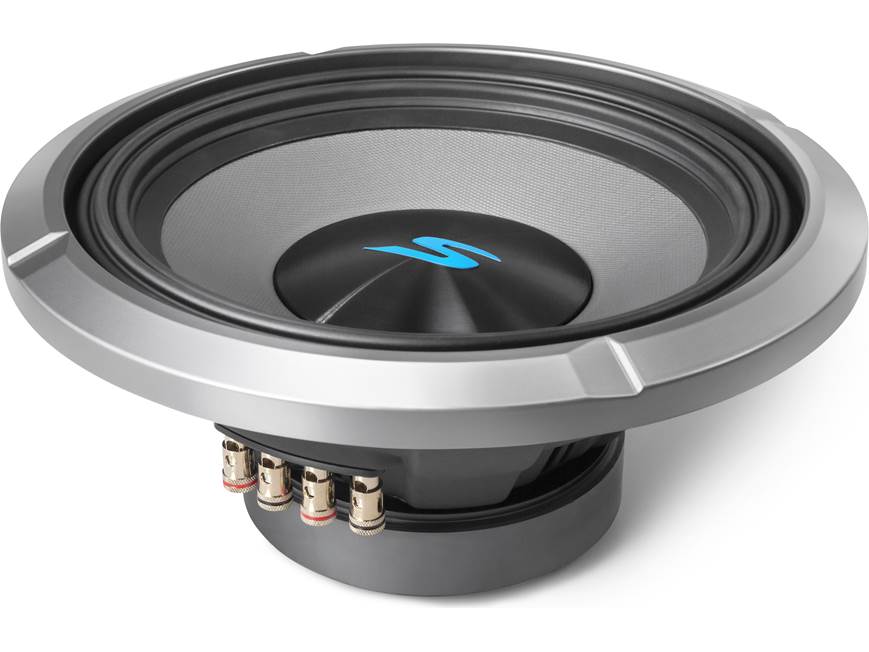

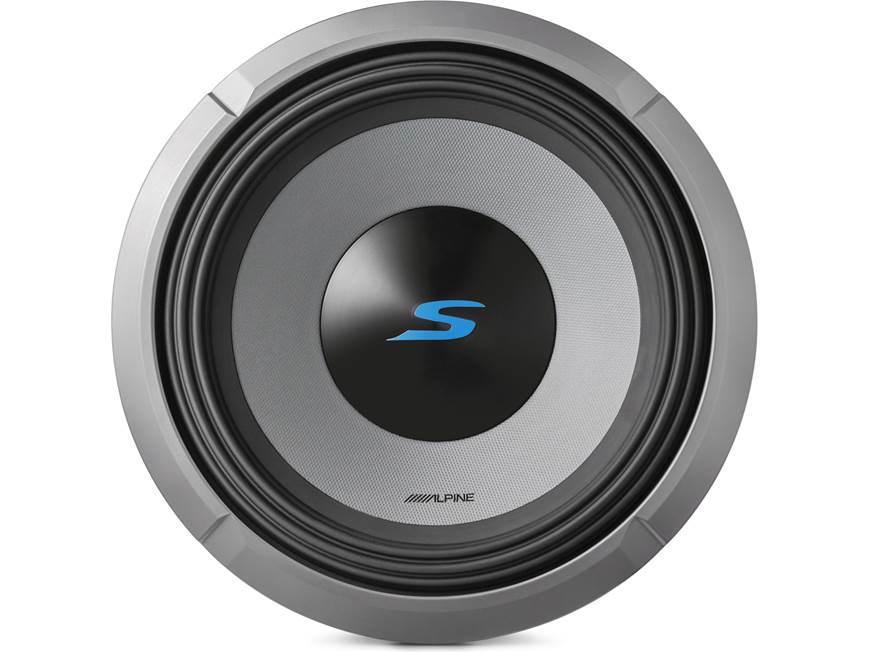

- 12" subwoofer with dual 4-ohm voice coils
- carbon fiber/polypropylene cone with HAMR rubber surround
- frequency response: 23-215 Hz
- power handling: 600 watts RMS (300 watts per coil)
- peak power handling: 1,800 watts
- sensitivity: 86.2 dB
- top-mount depth: 5.05"
- sealed box volume: 0.61-1.2 cubic feet
- ported box volume: 1.06-1.6 cubic feet
- grille not included
- warranty: 1 year
-
Alpine S2-W12D4 owner's manual
- One 12" Dual 4-ohm voice coil subwoofer
- Trim ring (installed)
- Two 3" jumper cables (each has a single banana connector on each end)
- Subwoofer Application Guide (English/ French)
- On-line product registration information (English/ French/ Spanish)
- Warranty information (English/ French)
- Important Notice! (English/ French)
|
|
12-inch |
|---|---|
|
|
2, 8 |
|
|
Carbon Fiber/Polypropylene |
|
|
Rubber |
| Basket Material | Steel |
| Grille | None included |
|
|
No |
|
|
Yes |
|
|
86.2 dB at 1 watt |
|
|
23 - 215 Hz |
|
|
600 |
|
|
1800 |
|
|
5 1/16 |
|
|
N/A |
|
|
10 5/8 |
|
|
12.5 |
|
|
12.5 |
|
|
51.5 |
|
|
28.8 |
|
|
0.44 |
|
|
15 |
|
|
1 Year |
|
|
1 Year |
|
|
0.85 |
|---|---|
|
|
0.61 |
|
|
1.2 |
|
|
1.51 |
|
|
1.06 |
|
|
1.6 |
|
|
N/A |
|
|
N/A |
