Alpine S2-S80C Next-Generation S-Series 8" component speaker system

2-way component speaker system
8" polypropylene/glass-fiber/mica woofer cone with High-Amplitude Multi-Roll surround
1" cloth dome tweeter with threaded removable housing
in-line crossovers for easier installation
handles up to 85 watts RMS (260 watts peak power)
frequency range: 50-40,000 Hz
sensitivity: 89 dB
impedance: 4 ohms
mounting depth: 2.615"
Hi-Res Audio Certified

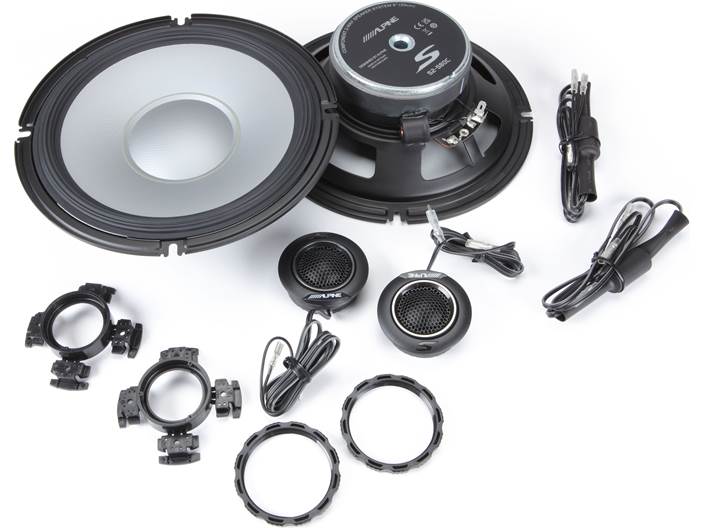

Alpine S2-S80C owner's manual

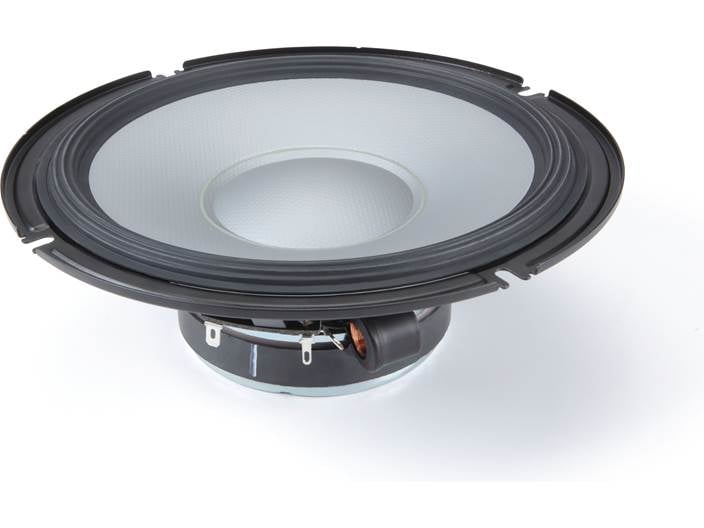

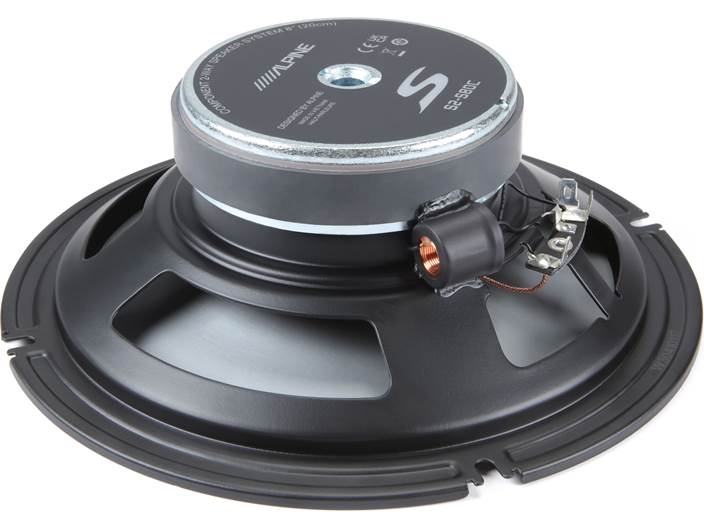

2 Woofers

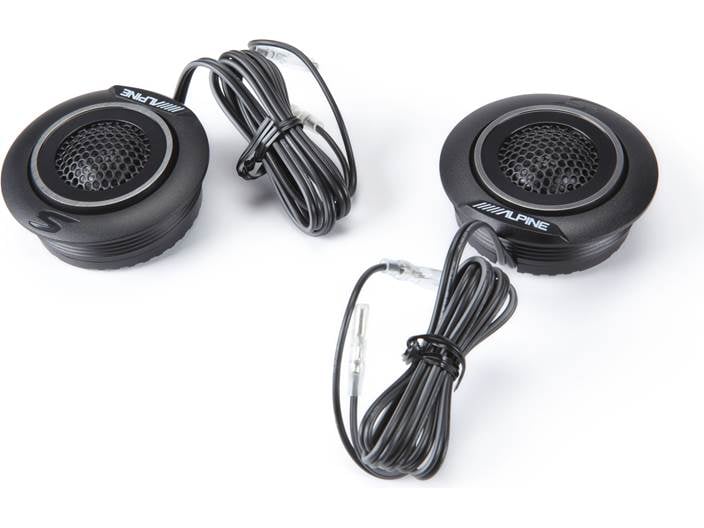

2 Tweeters (each has a 29" length of wire attached)
2 Flush mount housings (with tweeters installed)
2 Tweeter grilles (fixed)
Two 37" Tweeter wires with in-line crossovers (each has quick slides on both ends)

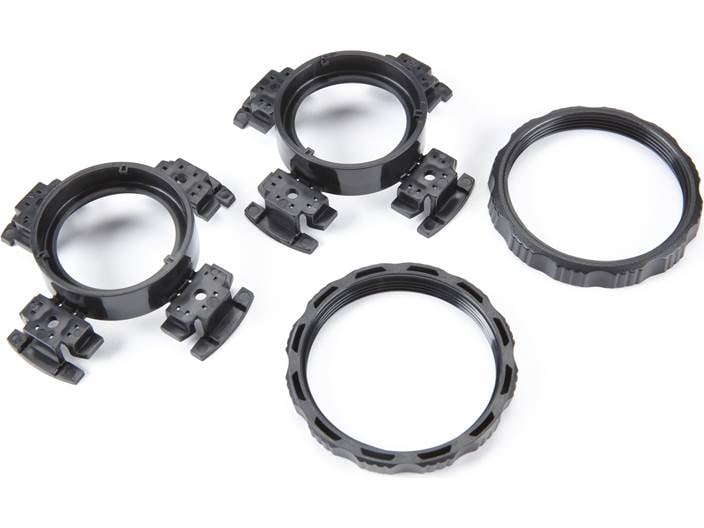

2 Flush mount retention rings
2 Stealth brackets
2 Foam self-adhesive pads
2 Foam self-adhesive rings
Eight 1-1/8" Screws
8 Speed clips
Warranty information
On-line product registration information
Important Notice sheet
Declaration of conformity
Templates and specs on box

General
	8
Driver Design	2-way
Woofer Design	Cone
Woofer Material	Polypropylene/Glass Fiber/Mica
	Rubber
Midrange Design	---
Midrange Material	---
	Dome
Tweeter Material	Cloth
Super Tweeter Design	---
Super Tweeter Material	---
	4
Weather-resistant	No
Grilles Included	No
	1 Year
	1 Year
