Product info:

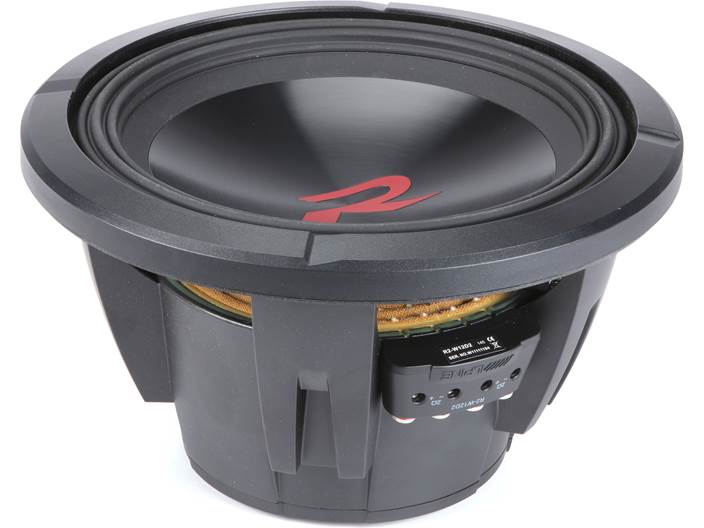

- 12" subwoofer with dual 2-ohm voice coils
- Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
- frequency response: 24-200 Hz
- power handling: 300-750 watts RMS (375 watts per coil)
- peak power: 2250 watts
- sensitivity: 85 dB
- top-mount depth: 6.47"
- sealed box volume: 0.65-1.1 cu. ft.
- ported box volume: 1.1-1.6 cu. ft.
- grille not included
- warranty: 1 year
-
Alpine R2-W12D2 owner's manual
- One 12" Dual 2-ohm voice coil subwoofer
- Plastic trim ring

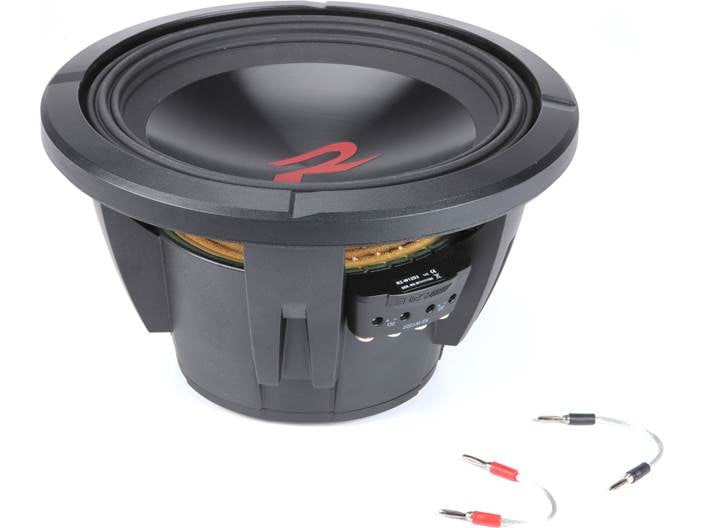

- Two 4.5" jumper wires (each wire has a single banana connector on both ends)
- Application guide (English/ French)
- On-line product registration information
- Warranty information (English/ French)
- Important Notice (English /French)
| Features and Specs | ||
|---|---|---|
|
|
12-inch | |
|
|
1, 4 | |
|
|
Kevlar Reinforced Paper | |
|
|
Santoprene Rubber | |
| Basket Material | Aluminum | |
| Grille | None included | |
|
|
No | |
|
|
Yes | |
|
|
85 dB at 1 watt |
|
|
|
24 - 200 Hz | |
|
|
750 | |
|
|
2250 | |
|
|
6 1/2 | |
|
|
N/A | |
|
|
10 7/8 | |
|
|
12.395 | |
|
|
12.395 | |
|
|
36.9 | |
|
|
29 | |
|
|
0.41 | |
|
|
20 | |
|
|
1 Year | |
|
|
1 Year | |
| Box Requirements | ||
|---|---|---|
|
|
0.85 | |
|
|
0.65 | |
|
|
1.1 | |
|
|
1.55 | |
|
|
1.1 | |
|
|
1.6 | |
|
|
N/A | |
|
|
N/A | |
