Product info:
- Featured in our article: Best high-end car speakers for 2026

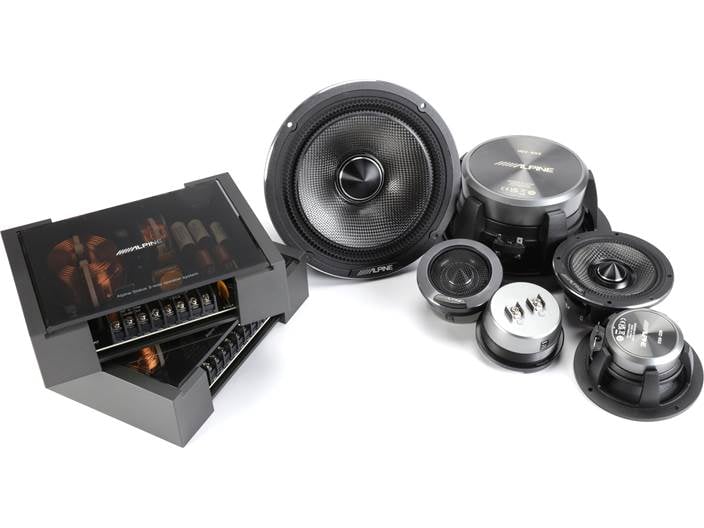

- 3-way component speaker system

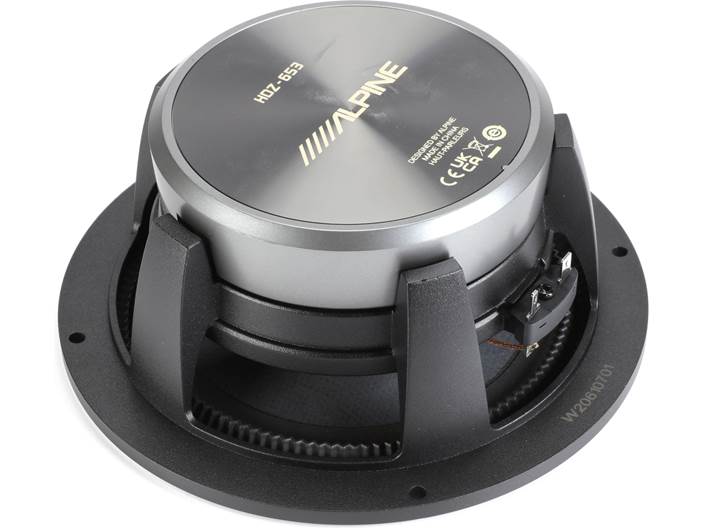

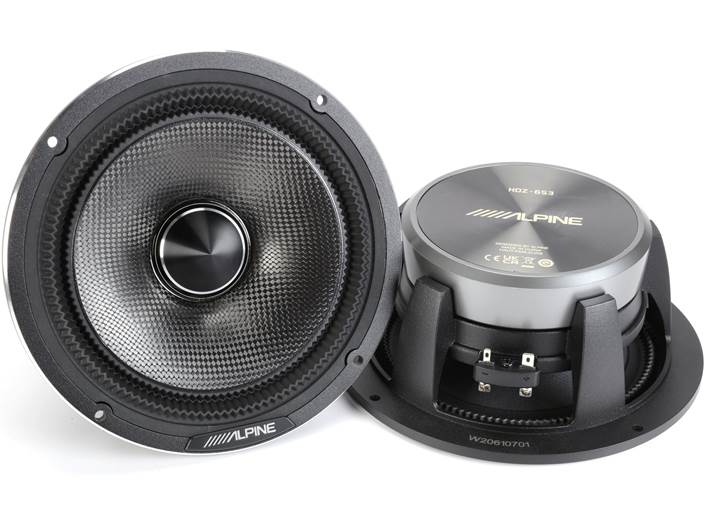

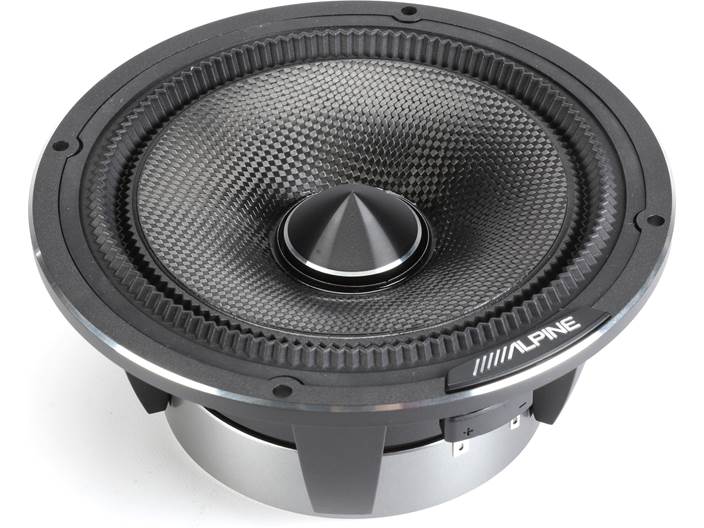

- 6-1/2" carbon composite woofer with double-gathered edge surround
- 3-1/2" carbon composite midrange
- 1-1/4" dome tweeter
- handles up to 100 watts RMS (300 watts peak power)
- frequency range: 55-40,000 Hz
- sensitivity: 88 dB
- warranty: 1 year
- MFR # HDZ-653
- Item # 500HDZ653
-
- Two woofers

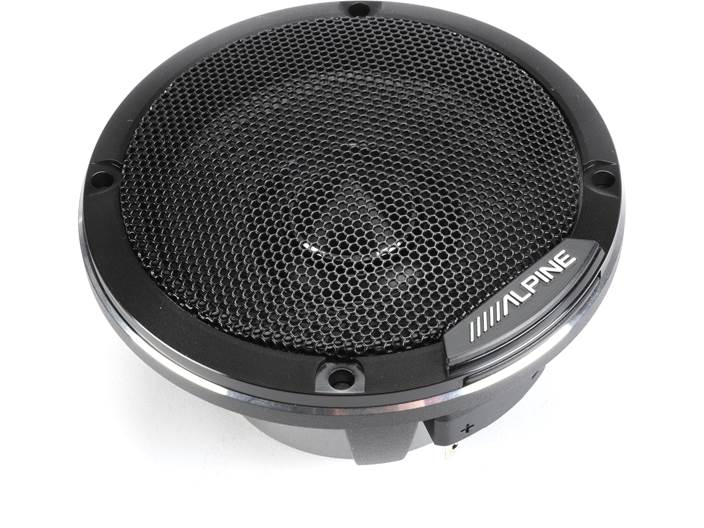

- Two woofer grilles
- Two midrange
- Two midrange grilles
- Two tweeters
- Two threaded tweeter mounting rings

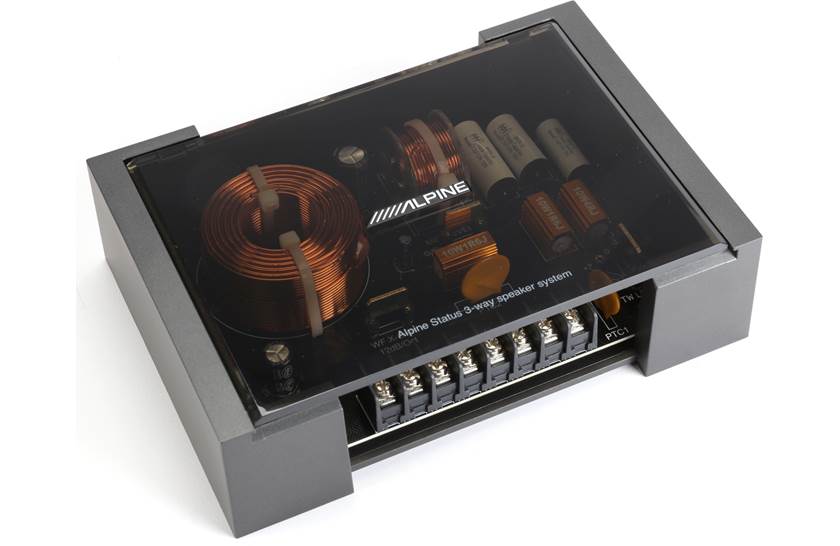

- Two crossovers
- Eight M4 Screws (1-1/8")
- Sixteen M3 Screws (1-1/8")
- Eight speed-clips
- Eight flat washers
- Owner's manual
- Warranty information
- Important Notice
- On-line product registration information
| General | ||
|---|---|---|
|
|
6 1/2 | |
| Driver Design | 3-way | |
| Woofer Design | Cone | |
| Woofer Material | Carbon Composite | |
|
|
Rubber | |
| Midrange Design | Cone | |
| Midrange Material | Carbon Composite | |
|
|
Cone | |
| Tweeter Material | Carbon Composite | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
|
|
4 | |
| Weather-resistant | No | |
| Grilles Included | Black, Steel mesh, Plastic frame | |
|
|
1 Year | |
|
|
1 Year | |
| Specifications | ||
|---|---|---|
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 88 | |
|
|
55 - 40k Hz | |
| Maximum RMS Wattage | 100 | |
|
|
300 | |
|
|
2 11/16 | |
|
|
N/A | |
| Cutout Diameter (Inches) | 5.562 | |
|
|
0.35 | |
|
|
6.696 | |
|
|
6.696 | |
