Product Highlights:
- Featured in our article: Best touchscreen car stereos for 2026
- digital multimedia receiver with AM/FM tuner
- 6.95" resistive touchscreen display with brushed aluminum key terminal
- Bluetooth hands-free calling and audio streaming
- fits double-DIN dash openings
- wireless remote
Smartphone Features:
- works with Apple CarPlay, Android Auto, and WebLink (requires wired connection)
- voice control with Siri and Google Assistant
Audio/Video Features:
- plays media from USB memory devices
- 10-band equalizer
- EXTRA BASS™ for bass enhancement
- Dynamic Stage Organizer (DSO) compensates for low speaker positions
- subwoofer controls
Expandability:
- compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
- inputs: rear USB input, rear-view camera input, rear audio/video input (mini-jack)
- outputs: 5-channel preamp outputs (2-volt front, rear, sub)
Other Info:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in internal amp (20 watts RMS/55 peak x 4 channels)
- CTA-2006 compliant
- compatible with most factory steering wheel audio controls (adapter required)
- warranty: 1 year
- MFR # XAVAX3200
- Item # 158XAV3200
What's in the box:
-
Sony XAV-AX3200 owner's manual
- Digital multimedia receiver (10A fuse)

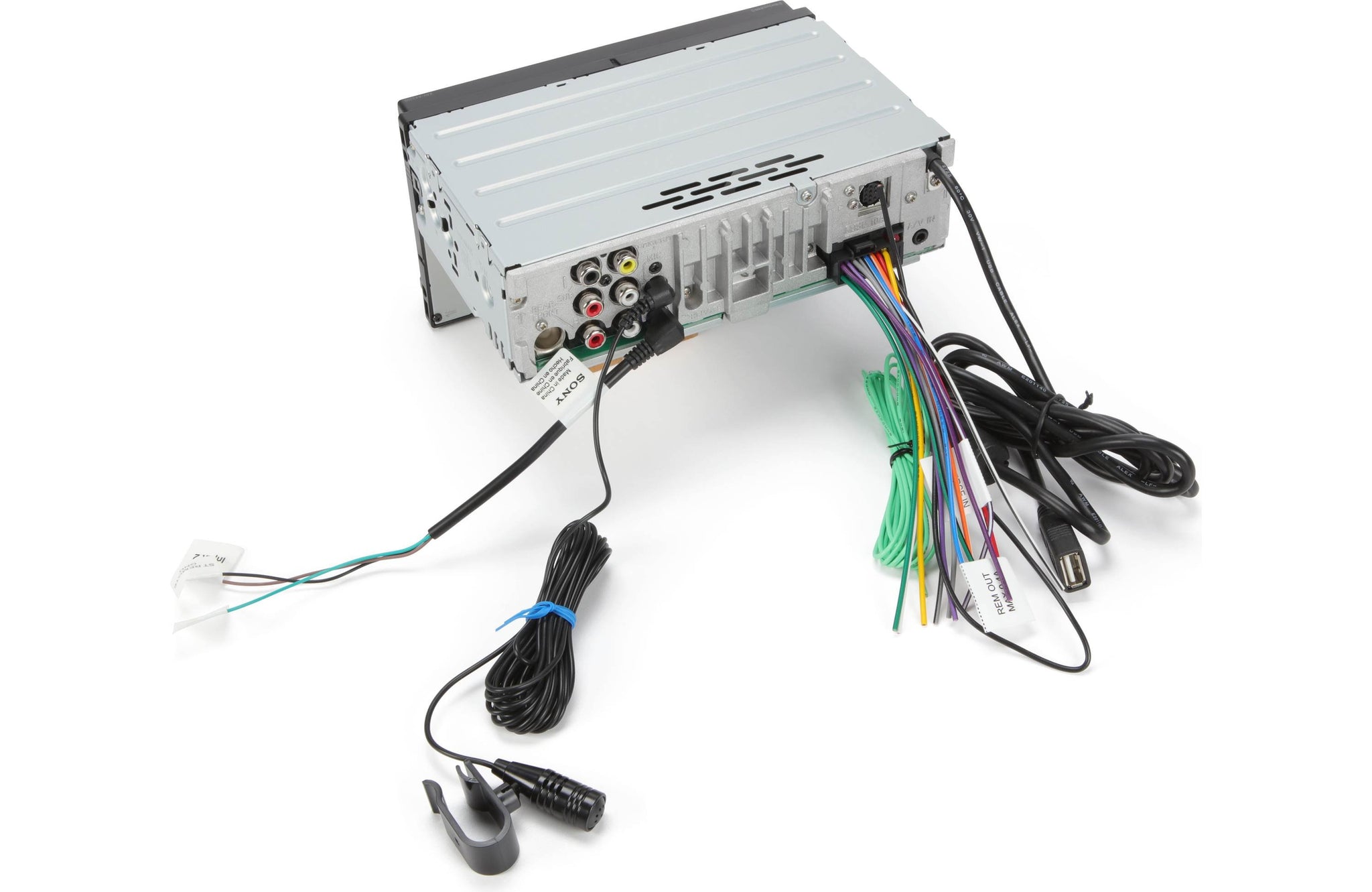

- Wiring harness (6.5' parking brake wire)
- Remote control (RM-X170)
- CR2025 3V battery (installed in remote)
- Microphone w/ bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
- 3-Wire SWC cable
- Two-sided tape
- 4 ISO-screws
- Operating Instructions
- Warranty Sheet
| General | ||
|---|---|---|
|
|
20 watts | |
|
|
20 watts | |
| Expandability | ||
|---|---|---|
|
|
Mini (rear) | |
|
|
Mini (rear) | |
|
|
Rear | |
|
|
1.5A | |
|
|
Yes | |
|
|
No | |
| Camera Input (Marine) | N/A | |
|
|
5-channel | |
|
|
Yes | |
|
|
No | |
|
|
USB memory | |
| Smartphone Control | ||
|---|---|---|
|
|
5S and newer | |
|
|
Wired only | |
|
|
CarPlay only | |
|
|
Yes | |
|
|
Wired only | |
|
|
No | |
| Tuner | ||
|---|---|---|
|
|
7 dBf | |
|
|
No | |
|
|
Seek | |
|
|
Yes | |
| File Playback | ||
|---|---|---|
|
|
MP3, WMA, AAC, FLAC, WAV | |
|
|
N | |
| Navigation Control | ||
|---|---|---|
|
|
CarPlay, Android Auto | |
|
|
Apple, Google, Waze | |
|
|
Google, Waze | |
| Features & Specs | ||
|---|---|---|
|
|
Built-in | |
|
|
3.0 | |
|
|
SiriusXM | |
|
|
N | |
|
|
Yes | |
|
|
2 | |
| Screen Size | 6.95 | |
|
|
Basic (Resistive) | |
|
|
--- | |
|
|
White | |
|
|
10 | |
|
|
Y | |
|
|
Adapter required | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Dimensions | ||
|---|---|---|
| Chassis Depth | 4.995 | |
| Chassis Width | 7.015 | |
| Chassis Height | 3.935 | |
