Product info:

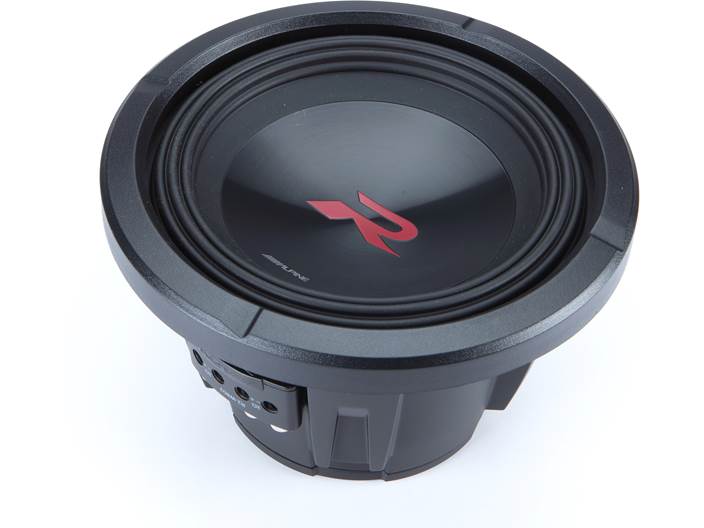

- 8" subwoofer with dual 2-ohm voice coils
- Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
- frequency response: 30-200 Hz
- power handling: 150-350 watts RMS (175 watts per coil)
- peak power: 1,000 watts
- sensitivity: 83.6 dB
- top-mount depth: 4.631"
- mounting height: 0.875"
- sealed box volume: 0.3-0.5 cu. ft.
- ported box volume: 0.3-0.75 cu. ft.
- grille not included
- warranty: 1 year
-
- One 8" Dual 2-ohm voice coil subwoofer
- Plastic trim ring

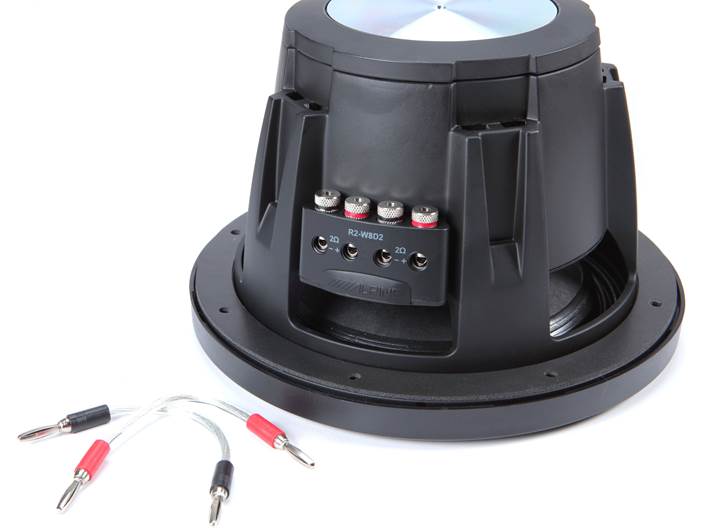

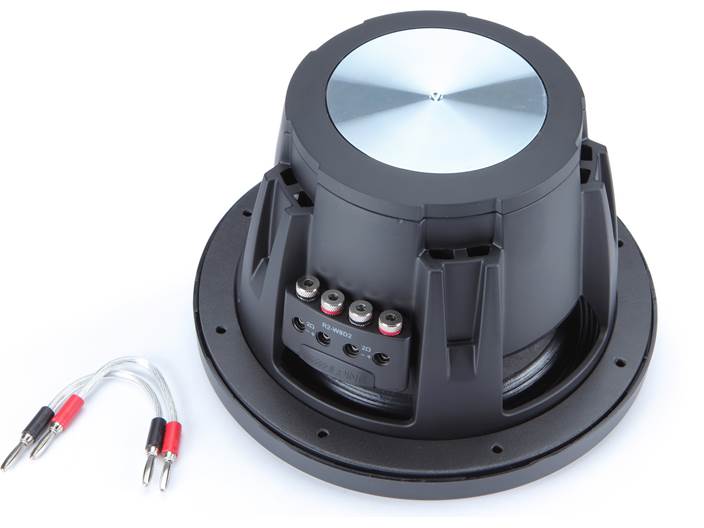

- Two 4.5" jumper wires (each wire has a single banana connector on both ends)
- Application guide (English/ French)
- On-line product registration information
- Warranty information (English/ French)
- Important Notice (English /French)
| Features and Specs | ||
|---|---|---|
|
|
8-inch | |
|
|
1, 4 | |
|
|
Kevlar Reinforced Paper | |
|
|
Santoprene Rubber | |
| Basket Material | Aluminum | |
| Grille | None included | |
|
|
No | |
|
|
Yes | |
|
|
83.6 dB at 1 watt |
|
|
|
30 - 200 Hz | |
|
|
350 | |
|
|
1000 | |
|
|
4 11/16 | |
|
|
N/A | |
|
|
6 15/16 | |
|
|
8.288 | |
|
|
8.288 | |
|
|
10.1 | |
|
|
42 | |
|
|
0.48 | |
|
|
12 | |
|
|
1 Year | |
|
|
1 Year | |
| Box Requirements | ||
|---|---|---|
|
|
0.3 | |
|
|
0.2 | |
|
|
0.5 | |
|
|
0.73 | |
|
|
0.3 | |
|
|
0.75 | |
|
|
N/A | |
|
|
N/A | |
