Built on a solid foundation

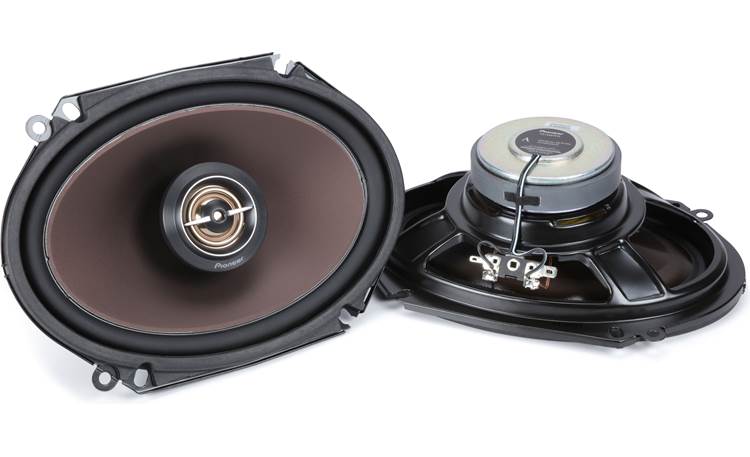

Pioneer's A-Series speakers have been consistent favorites at Crutchfield for years. With the new lines of A-Series offshoots (A-Series+ and A-Series MAX), we see Pioneer's continued commitment to improved performance without jacking prices through the roof. These Pioneer TS-A683FH 6"x8" 2-way car speakers wear the A-Series MAX mantle with pride to help your car stereo sound better, especially when paired with an external amplifier. You'll get audio reproduction that's loud and clear, but without bothersome distortion that can harsh your mellow. And thanks to Pioneer's design expertise, you can expect reliably consistent output for the life of the speakers.
Ready for the road

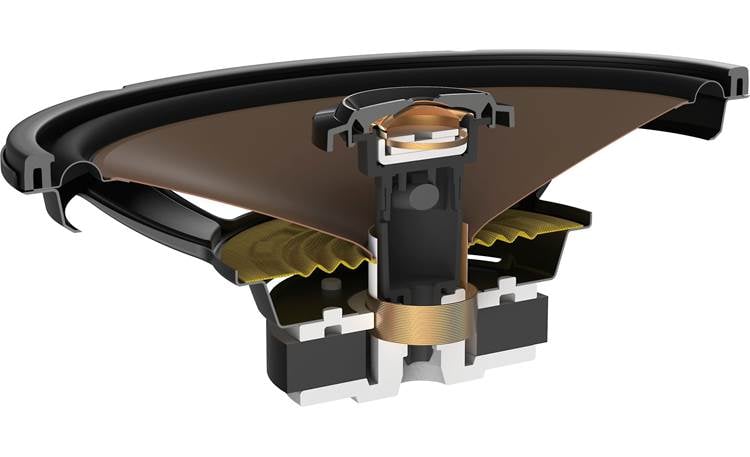

Pioneer builds their A-Series MAX speakers with advanced materials and construction so your ears feel taken care of. The woofer cone sports an injection-moulded polypropylene design reinforced with aramid fibre and mica, for smooth handling and hard-hitting low-end output. The speaker's deeper basket design allows Pioneer's exclusive suspension system to keep the cone in control during your music's peak moments, so those kick drums won't sound off-kilter. And Pioneer didn't forget about those higher frequencies — the inline dome tweeter brings all the details from your tunes to life.
Product highlights:
- 2-way 6"x8" car speakers (pair)
- injection molded polypropylene and aramid fiber/mica-reinforced composite woofer cone with elastic polymer surround
- 13/16" polyetherimide dome tweeter
- handles up to 85 watts RMS (370 watts peak power)
- frequency range: 34-49,000 Hz
- sensitivity: 90 dB
- top-mount depth: 2-1/2"
- impedance: 4 ohms
- warranty: 1 year
- MFR # TS-A683FH
- Item # 130TSA683F
What's in the box:
Pioneer TS-A683FH owner's manual
- Two 2-way speakers
- 2 Bottom mount brackets
- Two 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Eight 1" Screws
- Warranty information
- Specifications on box
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X8 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Aramid Fiber and Mica reinforced IMPP | |
| Woofer Surround | Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | Dome | |
| Tweeter Material | Polyetherimide | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 90 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 34 - 49k Hz | |
| Maximum RMS Wattage | 85 | |
| Peak Power Handling (Watts) | 370 | |
| Top-mount Depth (Inches) | 2 1/2 | |
| Bottom-mount Depth (Inches) | 2 13/16 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.412 | |
| Frame Width | 5.7 | |
| Frame Length | 8 | |
Product Research
Features
Woofers: Each speaker has an aramid fiber and mica reinforced injection-molded polypropylene (IMPP) woofer cone. This process of cone molding assures a uniform cone thickness to improve linearity and clarity. Additionally, the cones are lightweight and rigid to decrease distortion.
Tweeters: The speakers feature Polyetherimide (PEI) tweeters. PEI is a polymer film that produces a wide sound-stage for superior imaging.
Mounting Applications: While Pioneer describes these speakers as 6x8, they can be used in both 5x7 and 6x8 applications. Please enter your vehicle information to confirm compatibility.
No Grilles: No grilles are included with this speaker.
Bottom Mount Brackets: When bottom mounting, the bottom mount brackets are placed on top of the speakers. If you are top mounting the speakers, and they are too deep, the bottom mount brackets can be placed under the speaker baskets and act as a spacer. In this case the depth is reduced to 2.153" and the mounting height is increased to 0.702".
