Product highlights:
- 6"x8" 2-way speakers (pair)
- polypropylene woofer with treated cloth surround
- 1" PEI balanced dome tweeter
- handles up to 30 watts RMS (250 watts peak power)
- impedance: 4 ohms
- frequency response: 40-22,000 Hz
- sensitivity: 90 dB
- top-mount depth: 2-5/16"
- grilles not included
- warranty: 1 year
- MFR # KFC-C6866S
- Item # 113C6866S
What's in the box:
Kenwood KFC-C6866S owner's manual
- Two 2-way speakers
- Two 12" Lengths of speaker wire (each has female quick-slides on one end and bare wire on the other)
- Eight 1" Screws
- Warranty information
- Specifications on the box
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X8 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Polypropylene | |
| Woofer Surround | Treated Cloth | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | 1" Balanced Dome | |
| Tweeter Material | PEI | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 90 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 40 - 22k Hz | |
| Maximum RMS Wattage | 30 | |
| Peak Power Handling (Watts) | 250 | |
| Top-mount Depth (Inches) | 2 7/16 | |
| Bottom-mount Depth (Inches) | 2 3/4 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.325 | |
| Frame Width | 5.716 | |
| Frame Length | 8.002 | |
The Kenwood KFC-C6866S replaces these items:
Product Research
Features

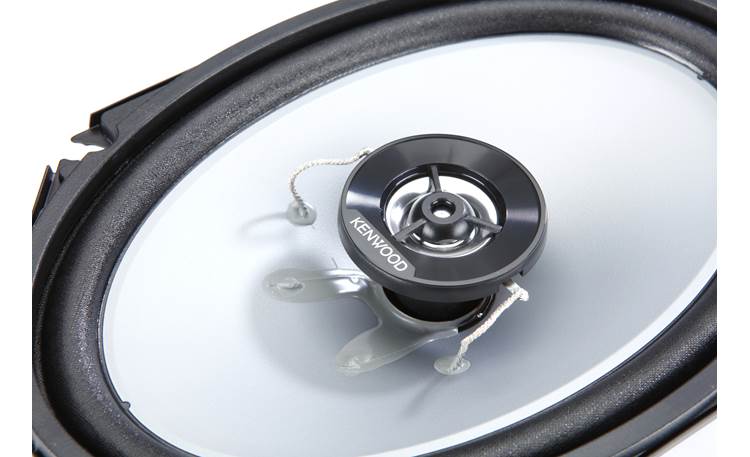

Tweeters: Each speaker has a 1" PEI balanced dome tweeter. A semi-dome tweeter has a dome placed inside a cone. Balanced dome tweeters are semi-dome tweeters with equal reproduction area given the cone and dome portions of the tweeter. PEI (Poly-Ether-Imide) is a polymer film that produces a wide soundstage for superior imaging.
Mounting Applications: Kenwood describes this speaker as a 6x8, but it also fits many 5x7 applications. Please enter your vehicle information to confirm fit.
