Upgrade excellence
Kenwood Excelon speakers incorporate technical know-how and advanced materials to give your music the full, rich sound it deserves. These full-range speakers sport a diamond-array pattern etched into their woofers that increases the strength of the carbon-polypropylene cone for improved dynamic response and lower distortion. The butyl rubber surround resists weathering, providing reliable support that keeps your music playing, no matter what.

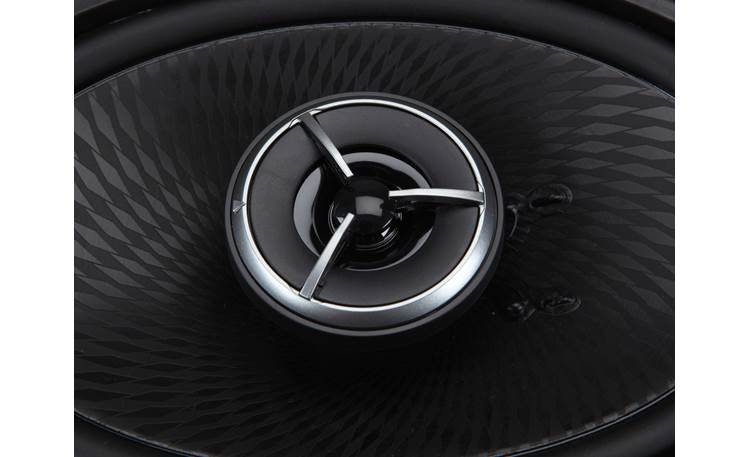

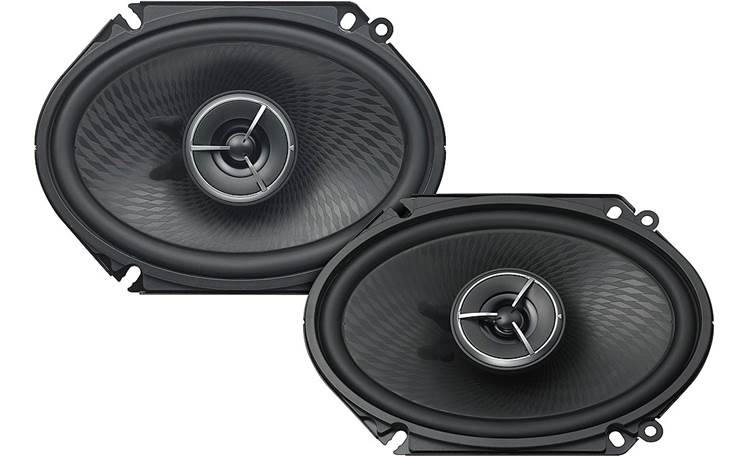

The KFC-X683C 6"x8" full-range speakers feature 1-3/16" balanced dome tweeters that deliver all the high-frequency details without sounding harsh. Because of their specially designed magnetic circuitry and neodymium magnets, these compact tweeters use less steel in their construction than most tweeters, so you hear more accurate response.
Grilles are not included; the factory grilles should be suitable for most applications.
Product highlights:
- 6"x8" 2-way car speakers (pair)
- Diamond Array Pattern carbon-polypropylene woofer
- butyl rubber surround
- 1-3/16" PEI balanced dome tweeter
- power range: 2-60 watts RMS (180 watts peak power)
- frequency response: 80-21,000 Hz
- sensitivity: 88 dB

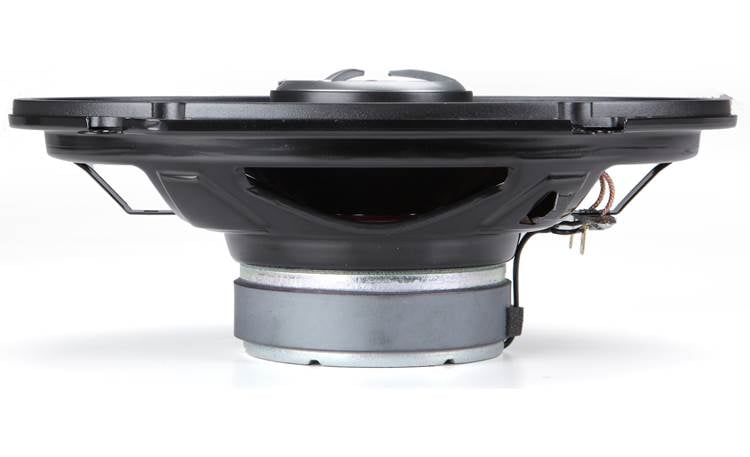

- depth: 2-9/16"
- grilles not included
- warranty: 2 years
- MFR # KFC-X683C
- Item # 113KFX683C
What's in the box:
Kenwood Excelon KFC-X683C owner's manual
- Two 2-way 6x8" speakers
- Two 11" lengths of speaker wire (each has female quick-slides on one end and bare wire on the other end)
- 8 Self-tapping screws
- Warranty Card
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X8 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Carbon Polypropylene | |
| Woofer Surround | Butyl rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | 1-3/16" Balanced Dome | |
| Tweeter Material | PEI | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 3 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 88 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 80 - 21k Hz | |
| Maximum RMS Wattage | 60 | |
| Peak Power Handling (Watts) | 180 | |
| Top-mount Depth (Inches) | 2 9/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.575 | |
| Frame Width | 5.745 | |
| Frame Length | 8.055 | |
Product Research
Features
Woofers: The woofer cones are constructed of Carbon-PP (polypropylene) with a diamond array pattern. The woofers feature butyl rubber surrounds for a smoother response and improved durability.
Tweeters: Each speaker uses a 1-3/16" PEI balanced-dome tweeter. PEI (Poly-Ether Imide) is a polymer film that has ideal sound characteristics, making it perfect for use as a tweeter. A PEI balanced-dome tweeter produces a wide soundstage for superior imaging.
Custom Fit: The 6x8" speaker's frame features two additional mounting holes which allows the speaker to fit in 5x7" openings of select Ford and Mazda vehicles.
Warranty Note: Although these speakers come with a 1-year warranty card, they are covered by the Kenwood eXcelon 2-year warranty.
