JL Audio C3-570 Evolution® C3 Series 5"x7" convertible component speaker system

Product info:

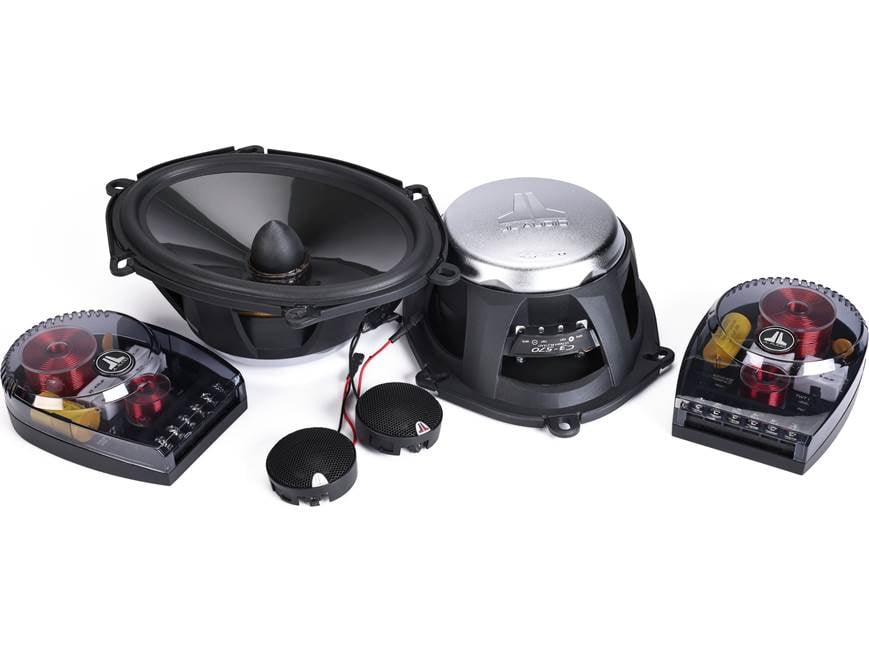

• component speaker system includes two 5"x7" woofers, 2 tweeters, two external crossovers, and two woofer grilles

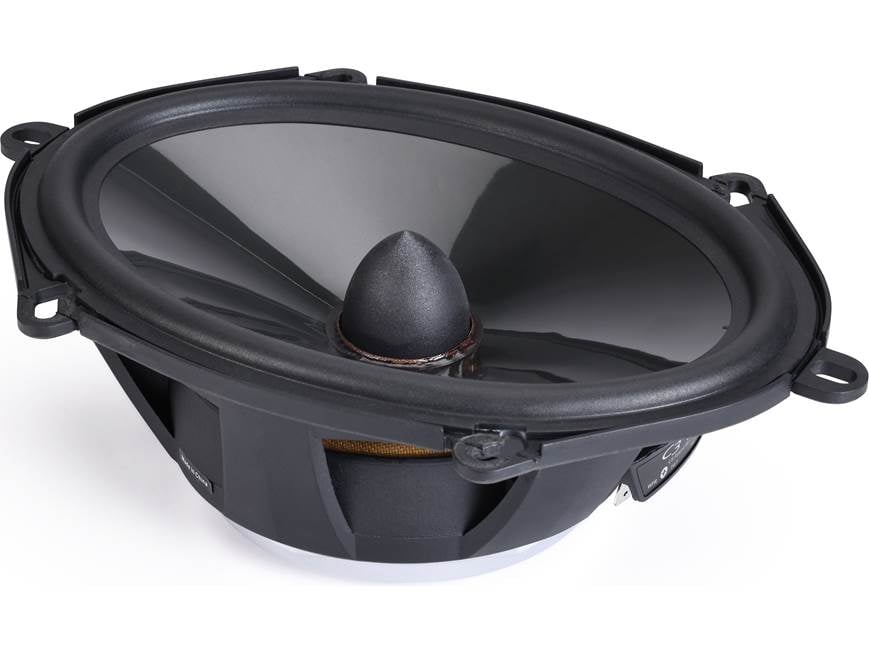

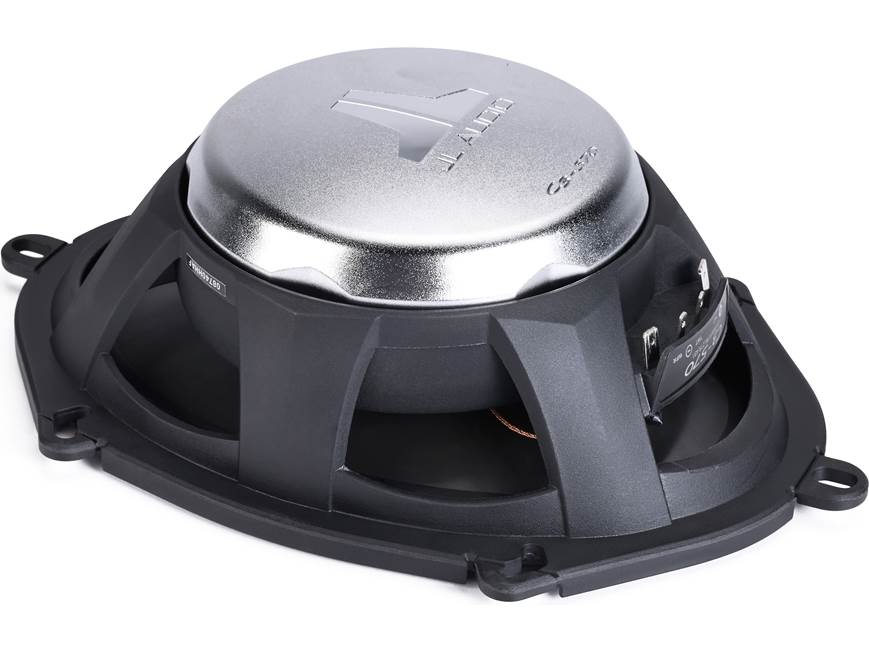

• mica-filled polypropylene woofer with butyl rubber surround
• glass-filled polymer frame with Elevated Frame Cooling

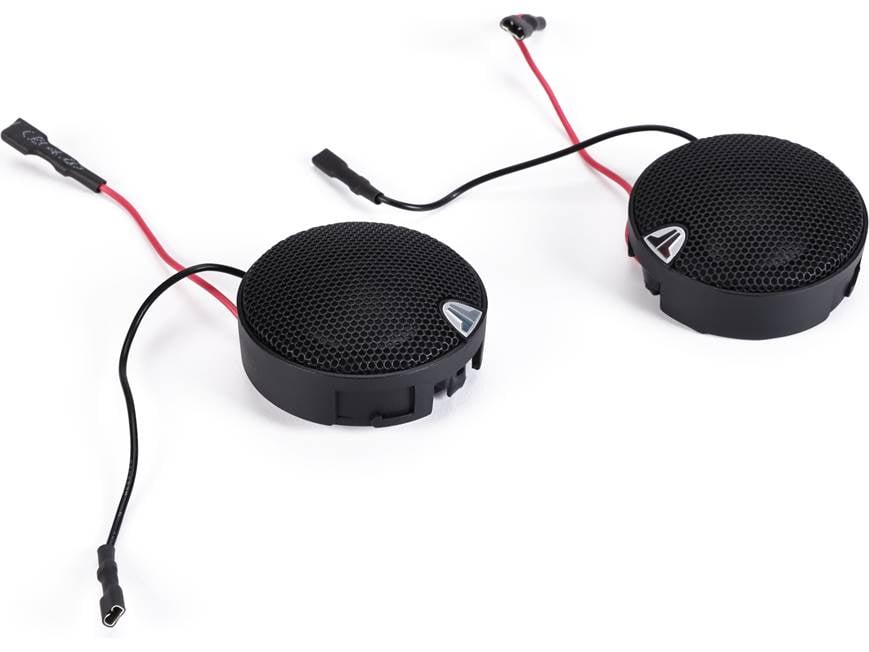

• 1" silk dome tweeter

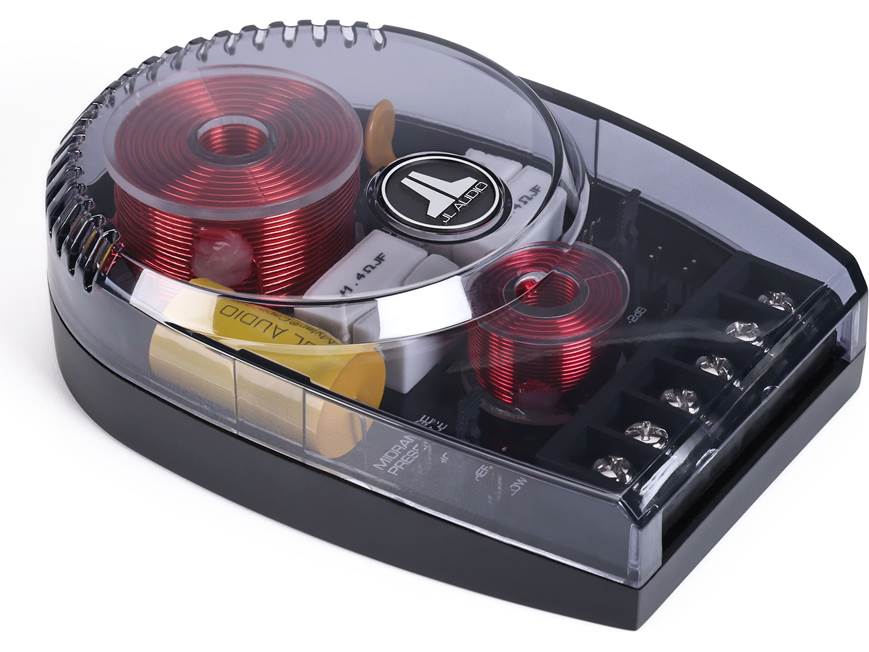

• 2-way external crossover with adjustments for coaxial or separate tweeter placement, and 4-position tweeter level
• tweeter mounts for separate or coaxial installations included
• phase plug provided when tweeter mounted separately
• power range: 5-75 watts RMS
• frequency response: 48-25,000 Hz
• sensitivity: 90 dB
• depth: 2-9/16"
• grilles included
• warranty: 1 year

• MFR # 010-03346-00
• Item # 136C3570

JL Audio C3-570 owner's manual

What's in the box:

• 2 C3-570cw Woofers
• 2 C3-100ct Tweeters
• 2 C3-570-XO Crossovers
• 2 Bottom mount adapter rings
• 2 Flush mount tweeter housings
• 2 Surface mount tweeter housings
• 2 Coaxial mount tweeter fixtures
• 2 Metal spring clips for tweeter fixtures
• 2 M4x30mm Pan-head machine screws
• 2 Crimp-on 0.187" Male quick slides
• 2 Crimp-on 0.110" Male quick slides
• 2 Crimp-on 0.25" Female quick slides
• 2 Crimp-on 0.205" Female quick slides
• 4 Crimp-on 0.110" Female quick slides
• 12 Crimp-on spade connectors
• Four 1" Flat head self-tapping screws
• Twelve 1-1/8" Pan head self-tapping screws
• 8 Speed clips
• Owner's manual
• Woofer cutout template
