JL Audio C3-525 Evolution® C3 Series 5-1/4" convertible component speaker system

Product info:

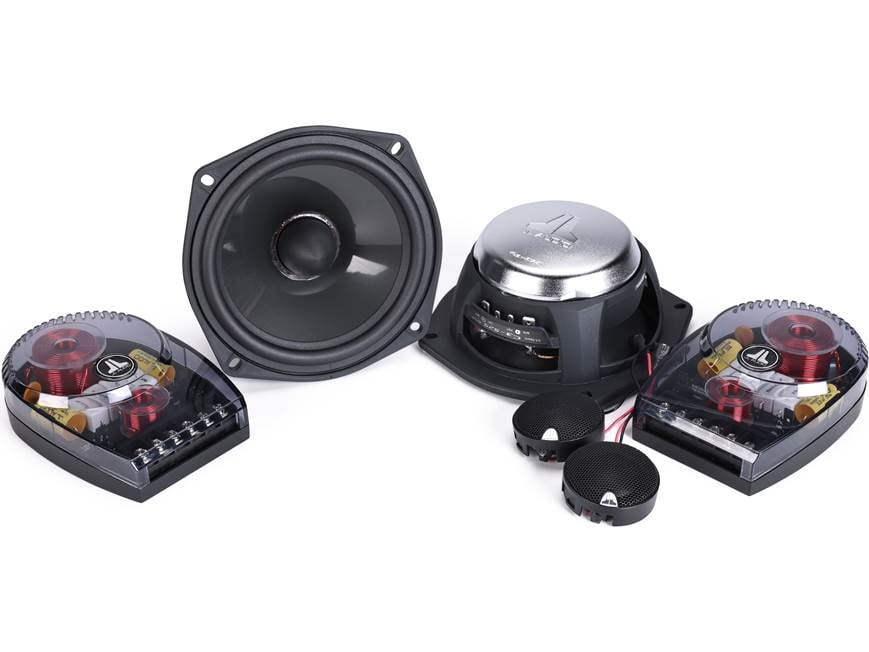

• component speaker system includes two 5-1/4" woofers, 2 tweeters, two external crossovers, and two woofer grilles

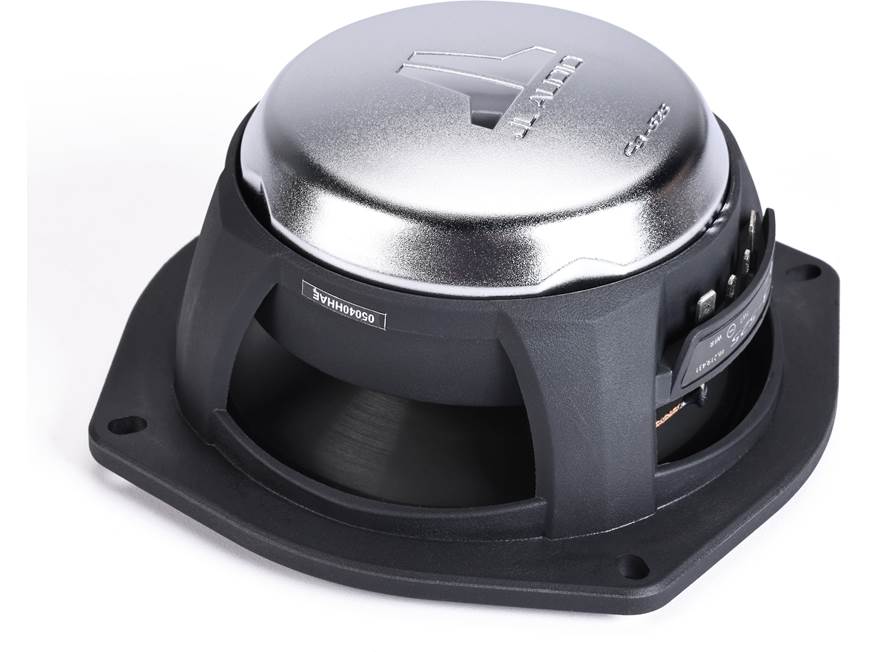

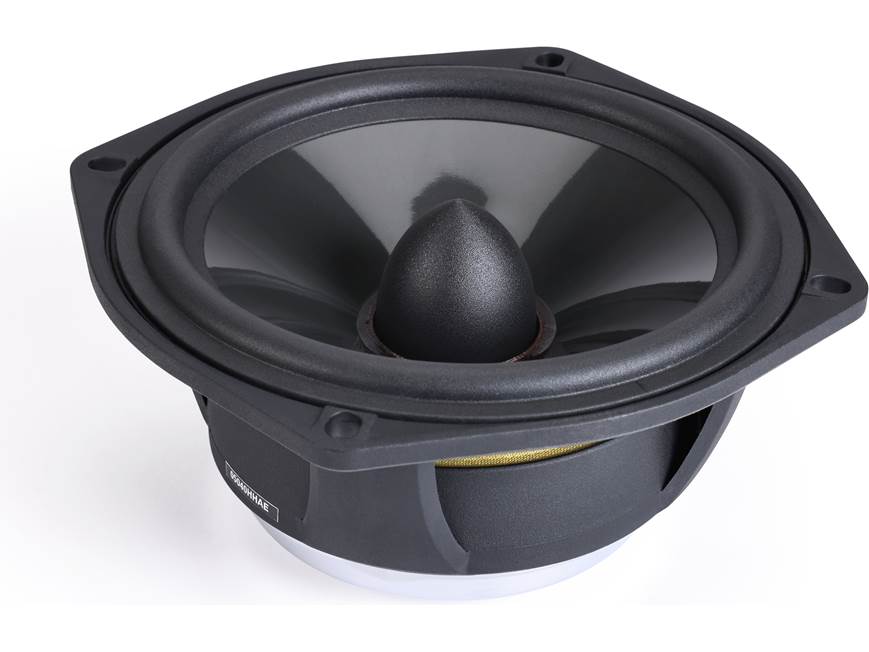

• mica-filled polypropylene woofer with butyl rubber surround
• glass-filled polymer frame with Elevated Frame Cooling

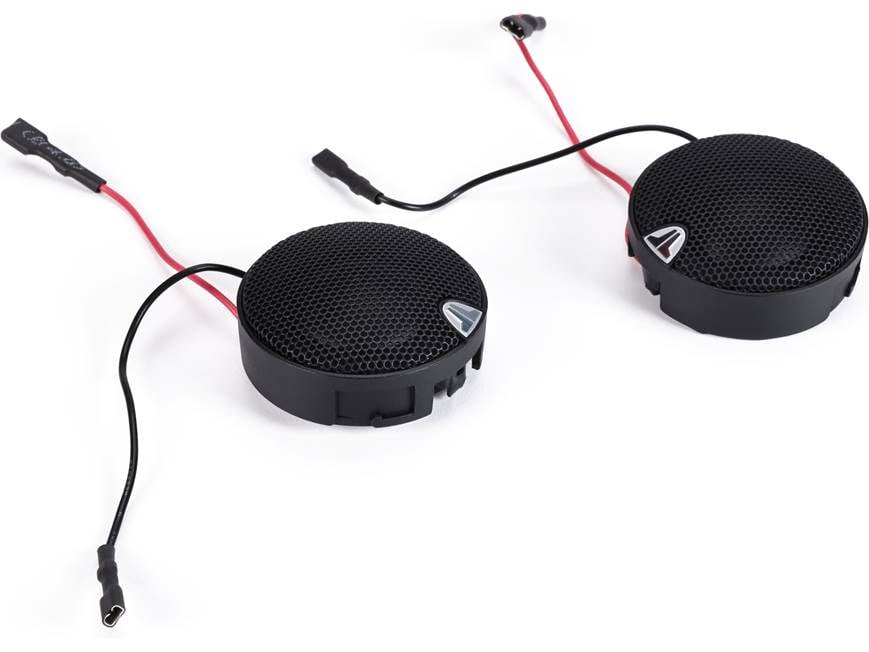

• 1" silk dome tweeter

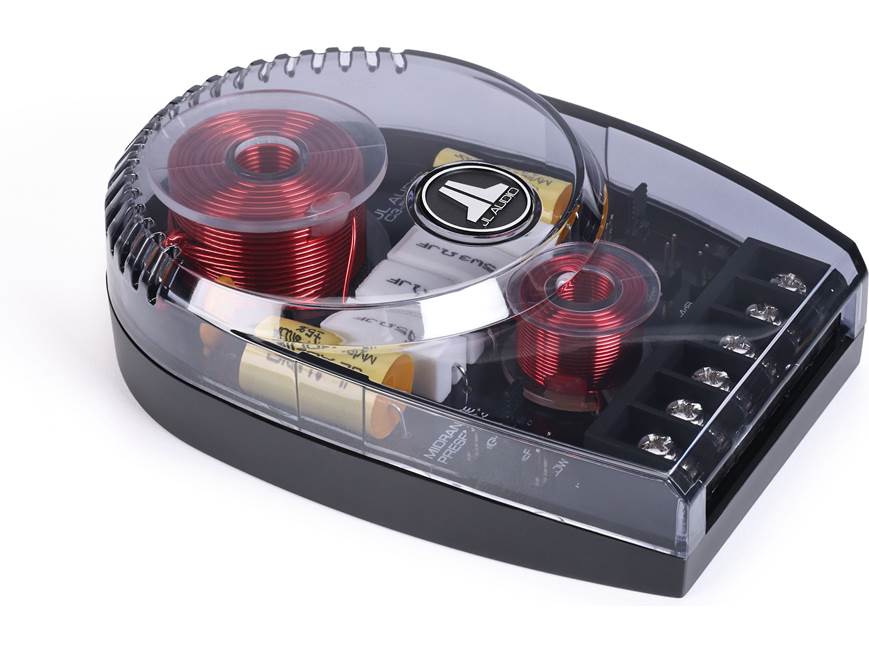

• 2-way external crossover with adjustments for coaxial or separate tweeter placement
  • 4-position tweeter level seetings: +2 dB, Reference, -2 dB, and -4 dB
  • 3 settings for upper midrange presence: High, Reference, or Low
• tweeter mounts for separate or coaxial installations included
• phase plug provided when tweeter mounted separately
• handles up to 65 watts RMS (225 watts peak power)
• frequency response: 53-25,000 Hz
• impedance: 4 ohms
• sensitivity: 88.5 dB
• woofer mounting depth: 2.21"

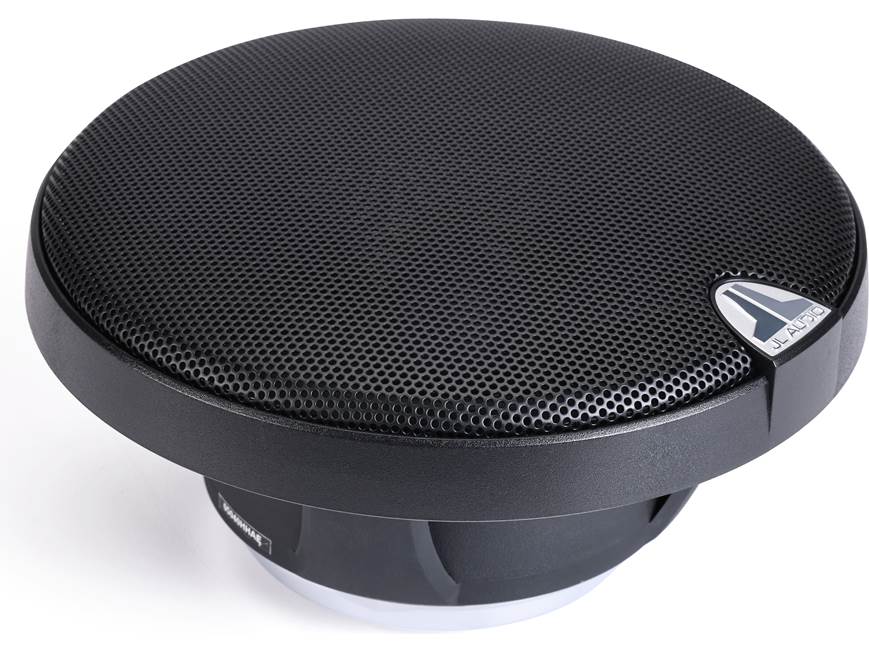

• grilles included
• warranty: 1 year

• MFR # 010-03345-00
• Item # 136C3525

JL Audio C3-525 owner's manual

What's in the box:

• 2 C3-525cw Woofers
• 2 C3-100ct Tweeters
• 2 C3-525-XO Crossovers
• 2 Woofer grilles
• 2 Flush mount tweeter housings
• 2 Surface mount tweeter housings
• 2 Coaxial mount tweeter fixtures
• 2 Metal spring clips for tweeter fixtures
• Two M4x30mm Pan-head machine screws
• 2 Crimp-on 0.187" Male quick slides
• 2 Crimp-on 0.110" Male quick slides
• 2 Crimp-on 0.25" Female quick slides
• 2 Crimp-on 0.187" Female quick slides
• 4 Crimp-on 0.110" Female quick slides
• 12 Crimp-on spade connectors
• Four 1" Flat head self-tapping screws
• Twelve 1-1/8" Pan head self-tapping screws
• 8 Speed clips
• Owner's manual
• Woofer cutout template
