Product info:

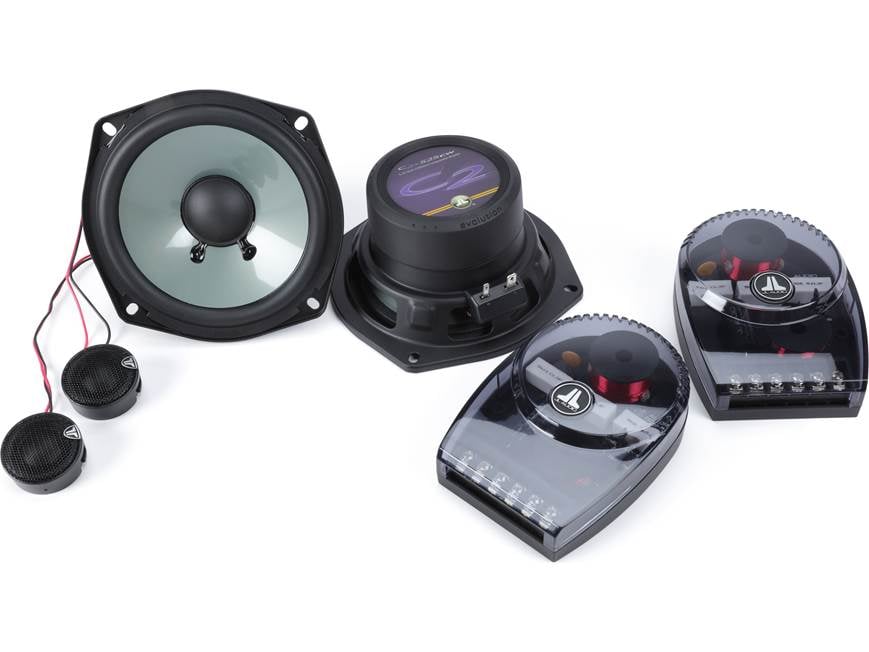

- component speaker system includes two 5-1/4" woofers, 2 tweeters, two external crossovers, and two woofer grilles

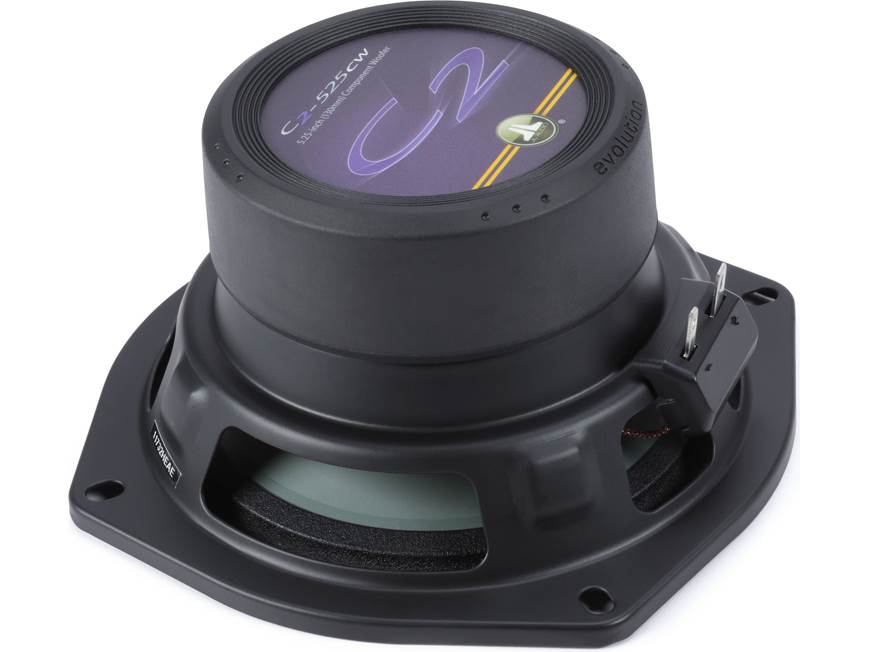

- mineral-filled polypropylene woofer with butyl rubber surround

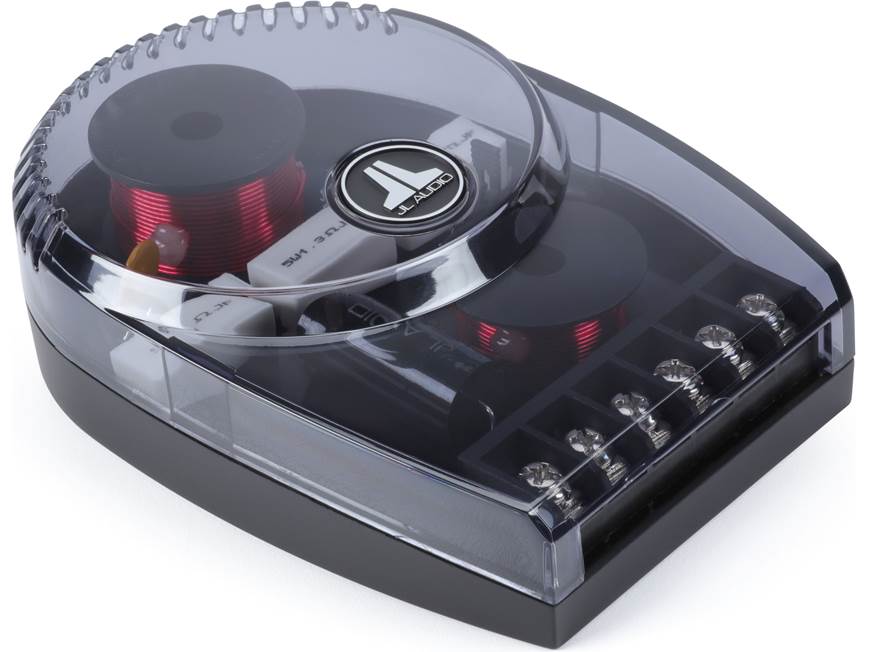

- 2-way external crossover with adjustments for coaxial or separate tweeter placement, and 3-position tweeter level
- 3/4" silk dome tweeter
- tweeter mounting gear included
- frequency response: 63-22,000 Hz
- handles up to 60 watts RMS (225 watts peak power)
- sensitivity: 89 dB
- woofer mounting depth: 2-1/2"

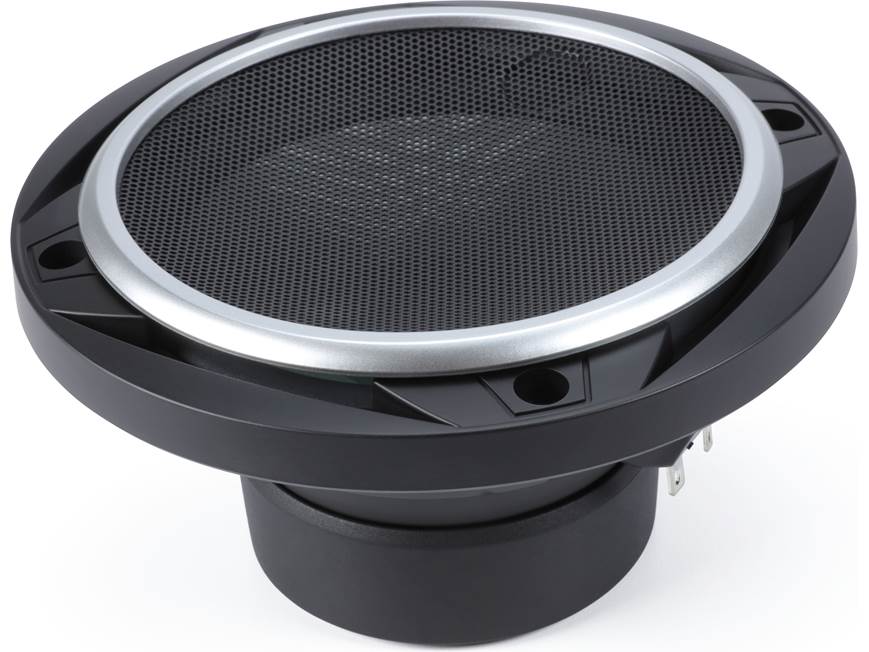

- grilles included
- warranty: 1 year
- MFR # 010-03125-00
- Item # 136C2525
JL Audio C2-525 owner's manual
What's in the box:
- 2 C2-525cw Woofers
- 2 C2-075ct Tweeters (with 6" wires attached)
- 2 C2-525-XO Crossovers
- 2 Woofer grilles
- 2 Self-adhesive JL Audio badges
- 2 Flush mount tweeter housings
- 2 Surface mount tweeter housings
- 2 Metal spring clips for tweeter fixtures
- 2 M4x30mm Pan-head machine screws
- 2 Crimp-on 0.187" Male quick slides
- 2 Crimp-on 0.110" Male quick slides
- 2 Crimp-on 0.205" Female quick slides
- 2 Crimp-on 0.110" Female quick slides
- Four 7/8" Flat head self-tapping screws
- Twelve 1-1/8" Pan head self-tapping screws
- 8 Speed clips
- 12 Crimp-on spade connectors (0.25" wide)
- Owner's Manual
- Woofer cutout template
| General | ||
|---|---|---|
|
|
5 1/4 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Mica-filled Polypropylene | |
|
|
Butyl Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
|
|
3/4" Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
|
|
4 | |
| Weather-resistant | No | |
| Grilles Included | Black steel mesh, Silver and black plastic frame | |
|
|
1 Year | |
|
|
1 Year | |
| Specifications | ||
|---|---|---|
| Sensitivity (1W at 1 meter) | 89 | |
| Sensitivity at 2.83 volts | 92 | |
|
|
63 - 22k Hz | |
| Maximum RMS Wattage | 60 | |
|
|
225 | |
|
|
2 9/16 | |
|
|
N/A | |
|
|
4 9/16 | |
|
|
0.213 | |
|
|
5.204 | |
|
|
5.204 | |
