About the Kenwood Excelon KDC-X305
Product highlights:
General features:
- CD receiver with AM/FM tuner
- plays media loaded with MP3, AAC, WMA, WAV, and high-res FLAC music files (up to 24-bit/96kHz) (See Details tab for model compatibility)
- Amazon Alexa voice control
- detachable face with 13-digit LCD display and variable-color illumination
Smartphone features:
- built-in Bluetooth (version 4.2) for hands-free calling and audio streaming with dual phone connection
- Music Mix feature allows music streaming playback and control from up to five paired smartphones
- iPhone control through USB or Bluetooth; Android control through Bluetooth (See Details tab for model compatibility)
- control the stereo using Kenwood's free Remote app
Audio features:
- 13-band graphic equalizer with digital time alignment
- high-pass filter; low-pass filter, phase, and level controls
- Sound Reconstruction: improves sound of compressed music files
Expandability:
- compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
- inputs: front-panel auxiliary input and USB port (1.5-amp)
- outputs: 6-channel preamp outputs (5-volt front, rear, subwoofer)
Other features and specs:
- built-in amplifier (22 watts RMS/50 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- warranty: 2 years
- MFR # KDC-X305
- Item # 113KDCX305
What's in the box:
Kenwood Excelon KDC-X305 owner's manual

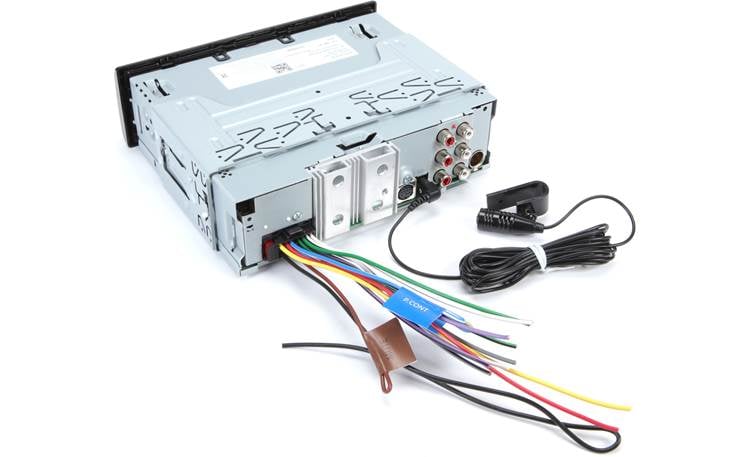

- CD receiver (10A fuse)
- Face (attached)
- Trim ring (attached)
- Sleeve (installed)
- Wiring harness
- Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- 4 Counter-sunk screws (M5x8mm) 4 Pan-head screws (M5x8mm)
- Mounting screw (Lock and flat washers attached)
- 2 Removal tools
- Face-fixing screw
- Quick Start Gude
- Warranty Card
