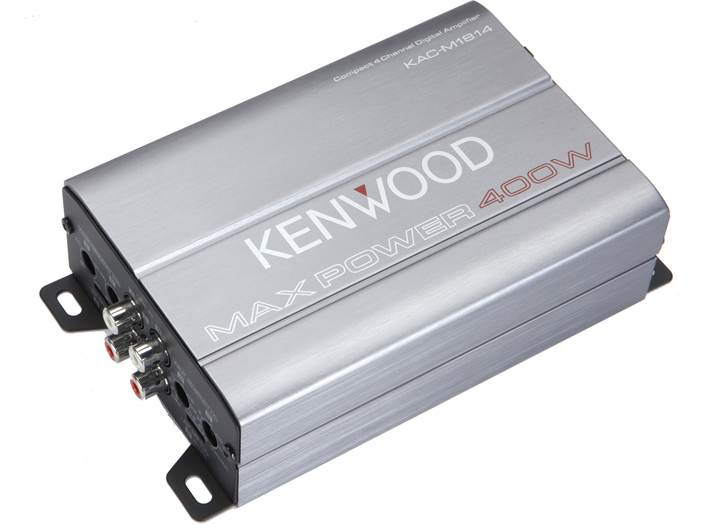

Product info:
- compact 4-channel amplifier for car, motorcycle, and boat
- 45 watts RMS x 4 at 2 to 4 ohms
- 90 watts RMS x 2 bridged at 4 ohms
- CTA-2006 compliant
- Class D amp technology

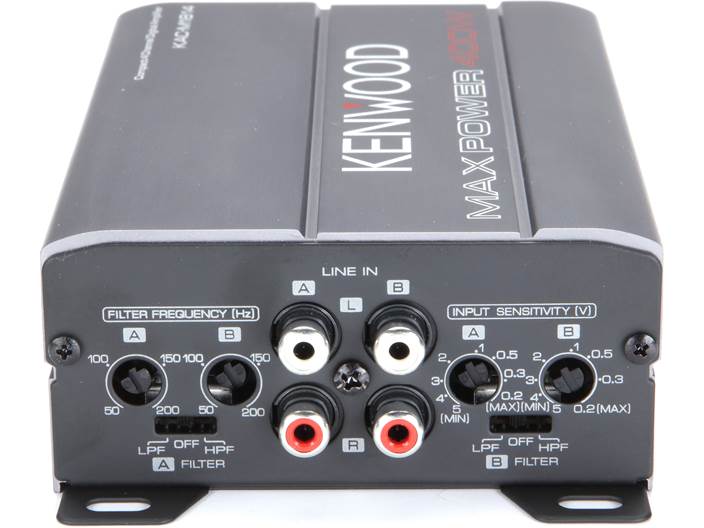

- variable high- and low-pass filters (50-200 Hz, 12 dB/octave)
- conformal-coated circuit board — suitable for marine applications
More Info:
- preamp and speaker-level inputs
- speaker wire to RCA adapter required for speaker-level input
- signal-sensing turn-on on speaker-level inputs eliminate need for a separate remote lead
- wiring and hardware not included with amplifier
- 12-gauge power and ground leads recommended

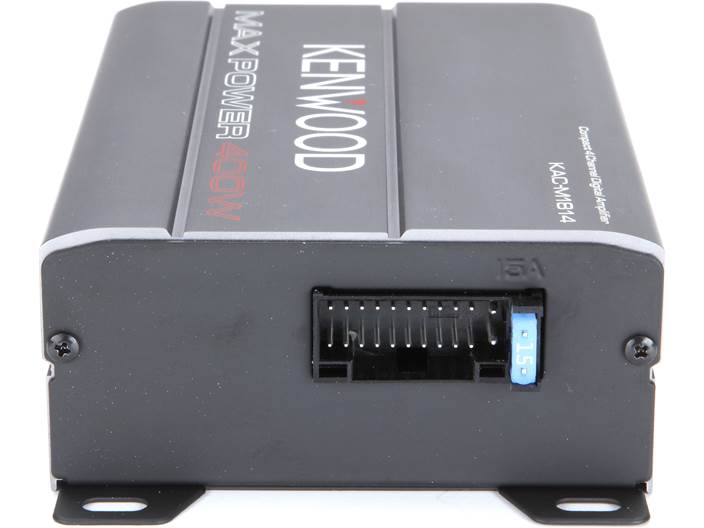

- fuse rating: 15A x 1
- dimensions: 8-5/8"W x 1-13/16"H x 3-15/16"D
- warranty: 1 year
- MFR # KAC-M1814
- Item # 113KAM1814
-
Kenwood KAC-M1814 owner's manual

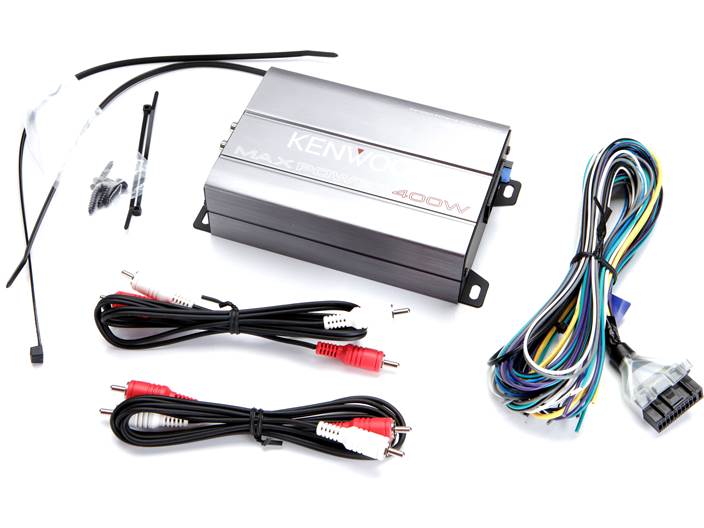

- 4-Channel amplifier
- One 15-amp ATM mini-fuse (installed)
- Two 38" RCA stereo patch cables
- 5' Power and speaker output harness with plug cover
- Four 5/8" Screws (4x16mm)
- Two 14" Zip Ties
- Two 4" Zip Ties
- 2 Sets of clear self-adhesive control covers
- Instruction manual (English/ French/ Spanish)
- Warranty information
| Performance | ||
|---|---|---|
|
|
45 x 4 |
|
|
|
100 x 4 | |
|
|
45 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
90 x 2 | |
|
|
4 | |
|
|
2 | |
|
|
20-20k Hz | |
|
|
1% | |
|
|
82 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
No | |
|
|
50-200 Hz | |
|
|
12 dB/octave | |
|
|
50-200 Hz | |
|
|
12 dB/octave | |
|
|
No | |
|
|
N/A | |
|
|
No | |
|
|
15 | |
|
|
Yes | |
|
|
No | |
|
|
8-5/8 | |
|
|
1-13/16 | |
|
|
3-15/16 | |
|
|
1 Year | |
|
|
1 Year | |
