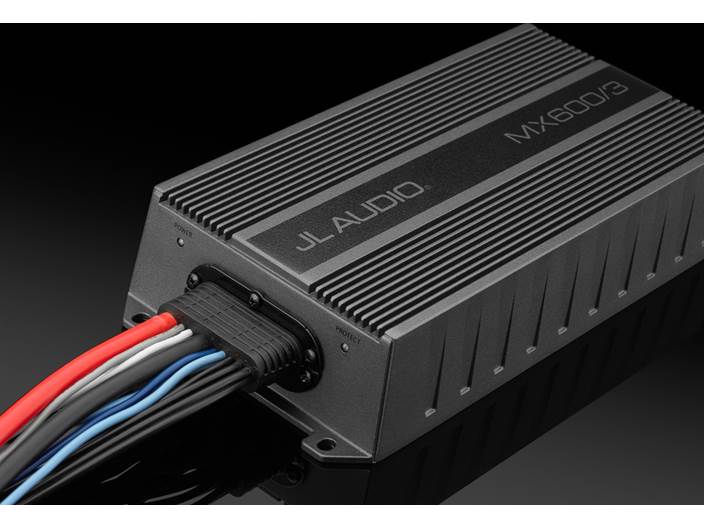

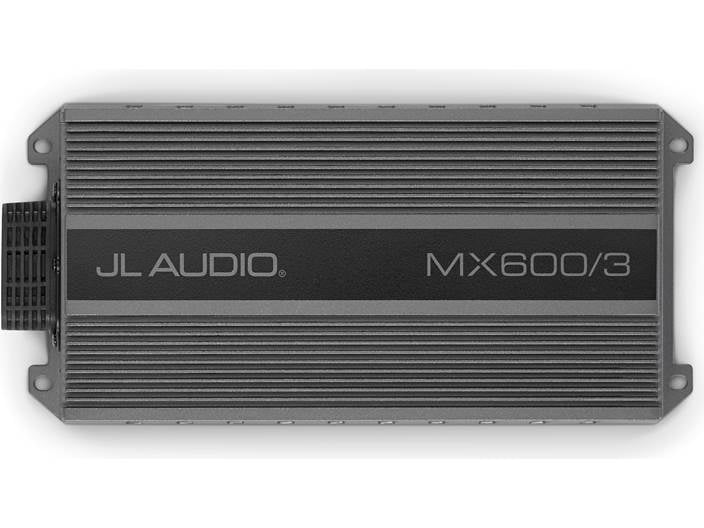

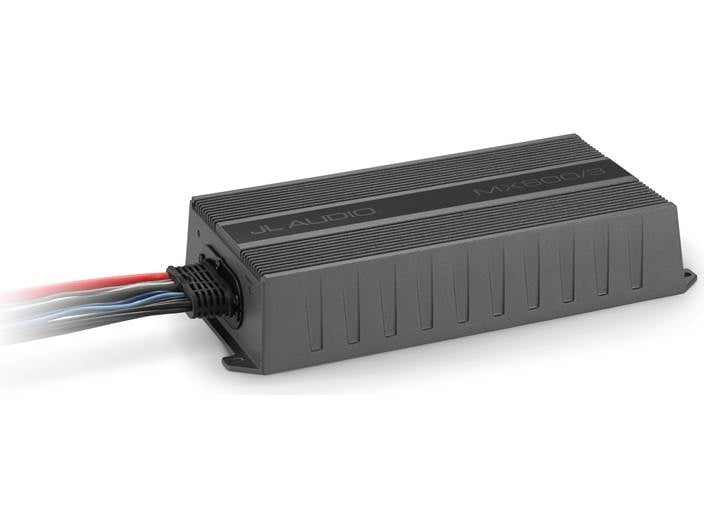

Product info:
- marine/powersports 3-channel amplifier
- 75 watts RMS x 2 + 250 watts RMS x 1 at 4 ohms
- 100 watts RMS x 2 + 400 watts RMS x 1 at 2 ohms
- 200 watts RMS x 1 bridged at 4 ohms + 300 watts RMS x 1 at 3 ohms
- Class D amplifier design with NextD™ switching amp technology

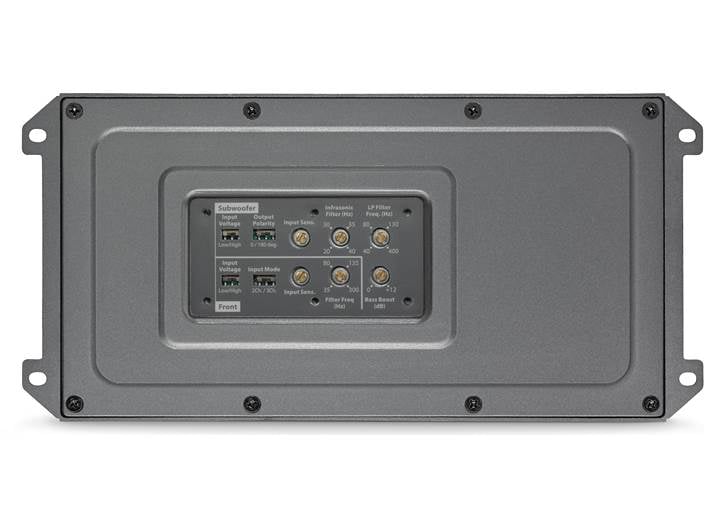

- front channels: variable high-pass filter (35-300 Hz, 12 dB/octave)
- subwoofer channel:
- variable low-pass filter (40-400 Hz, 24 dB/octave)
- variable subsonic filter (20-40 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 43 Hz)
- polarity switch: 0-180°

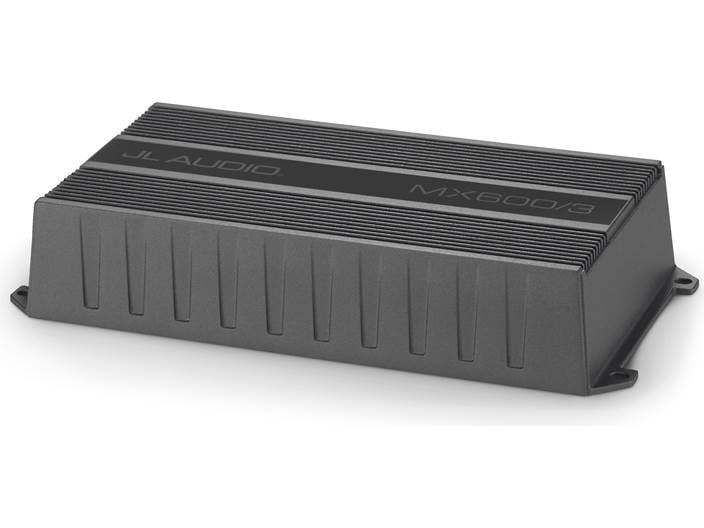

- corrosion-resistant cast aluminum chassis — IPX7 water-resistance rating
Connection Features:
- differential-balanced inputs eliminate noise coming from your vehicle's electrical system
- preamp inputs and outputs
- speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
- 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
- 9-3/8"W x 1-13/16"H x 4-1/2"D
- warranty: 2 years
- MFR # 010-03326-00
- Item # 13698409
-
JL Audio MX600/3 owner's manual
- 3-Channel marine amplifier with 12" power/signal pigtails
- 4 Self-tapping screws (1" length)
- Owner's Manual
| Performance | ||
|---|---|---|
|
|
75 x 2 400 x 1 |
|
|
|
N/A | |
|
|
100 x 2 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
200 x 1 | |
|
|
4 | |
|
|
2 | |
|
|
20-20k Hz | |
|
|
1% | |
|
|
88 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
Optional | |
|
|
40-400 Hz | |
|
|
24 dB/octave | |
|
|
35-300 Hz | |
|
|
12 dB/octave | |
|
|
0-12 dB | |
|
|
43 Hz | |
|
|
No | |
|
|
50 | |
|
|
Yes | |
|
|
No | |
|
|
9-3/8 | |
|
|
1-13/16 | |
|
|
4-1/2 | |
|
|
2 Years | |
|
|
2 Years | |
