Product info:

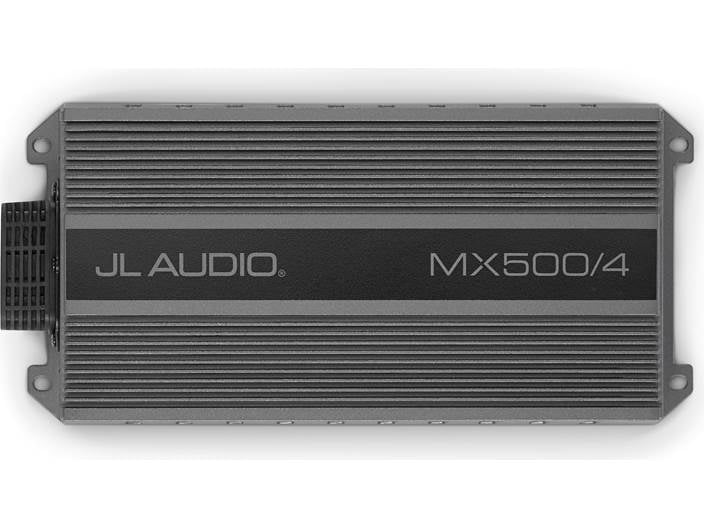

- 4-channel amplifier
- 70 watts RMS x 4 at 4 ohms (125 watts RMS x 4 at 2 ohms)
- 250 watts RMS x 2 bridged at 4 ohms (4-ohm stable bridged)

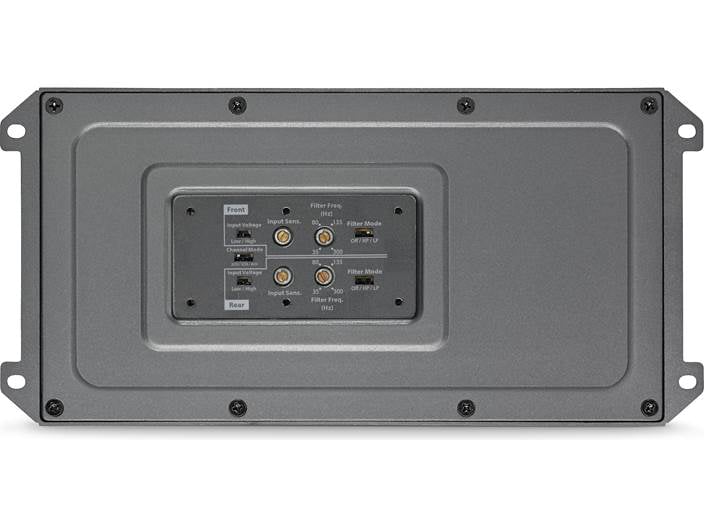

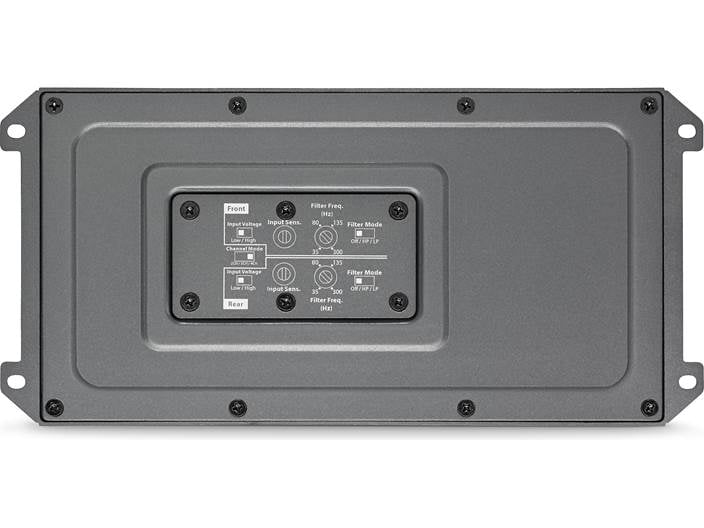

- variable low- and high-pass filters (35-300 Hz, 12 dB/octave)
- Class D amplifier design with NextD™ switching amp technology
- IPX7 water-resistance rating

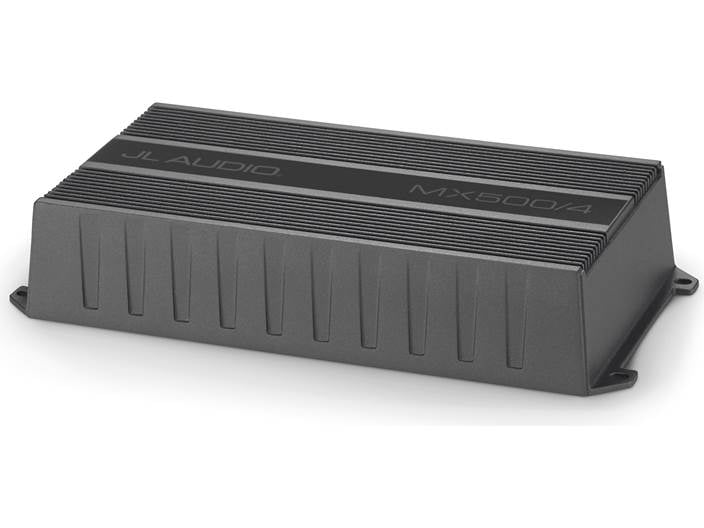

- corrosion-resistant cast aluminum chassis
Other Features:

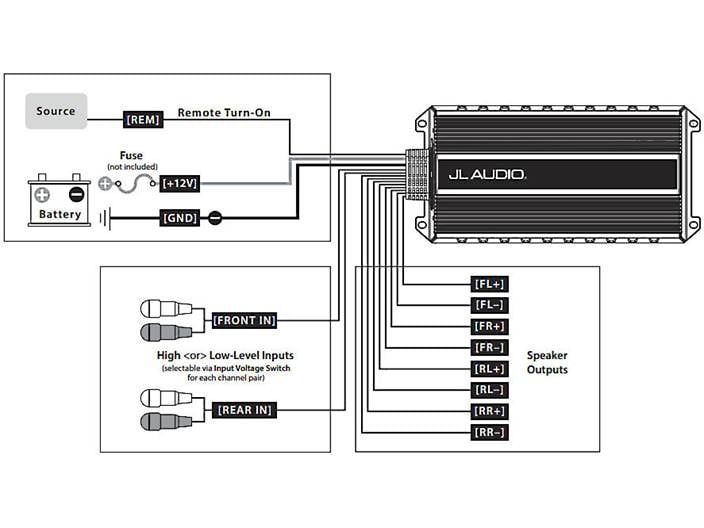

- preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
- 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
- 9-3/8"W x 1-13/16"H x 4-9/16"D
- warranty: 2 years
- MFR # 010-03106-00
- Item # 13698408
-
JL Audio MX500/4 owner's manual
- 4-Channel marine amplifier with 12" power/signal pigtails
- 4 Self-tapping screws (1" length)
| Performance | ||
|---|---|---|
|
|
70 x 4 |
|
|
|
N/A | |
|
|
125 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
250 x 2 | |
|
|
4 | |
|
|
2 | |
|
|
20-20k Hz | |
|
|
1% | |
|
|
88 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
No | |
|
|
35-300 Hz | |
|
|
12 dB/oct | |
|
|
35-300 Hz | |
|
|
12 dB/oct | |
|
|
No | |
|
|
N/A | |
|
|
No | |
|
|
50 | |
|
|
Yes | |
|
|
No | |
|
|
9-3/8 | |
|
|
1-13/16 | |
|
|
4-9/16 | |
|
|
2 Years | |
|
|
2 Years | |
