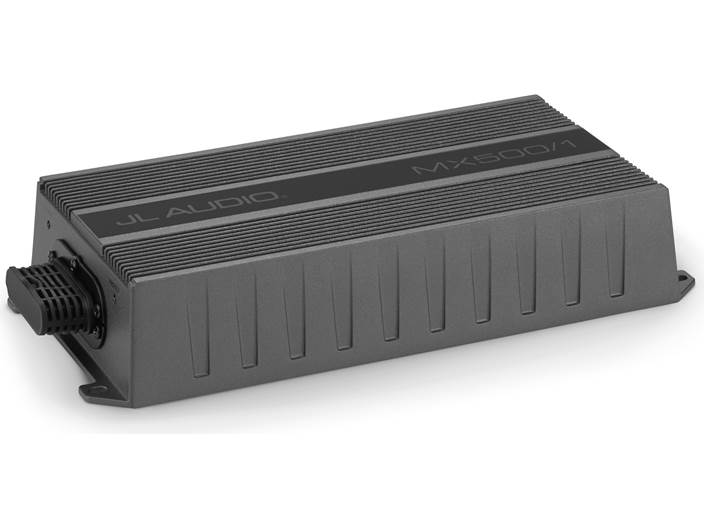

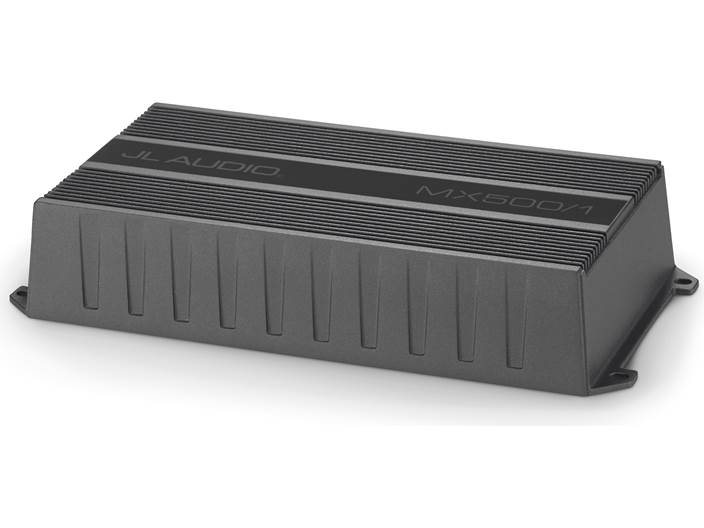

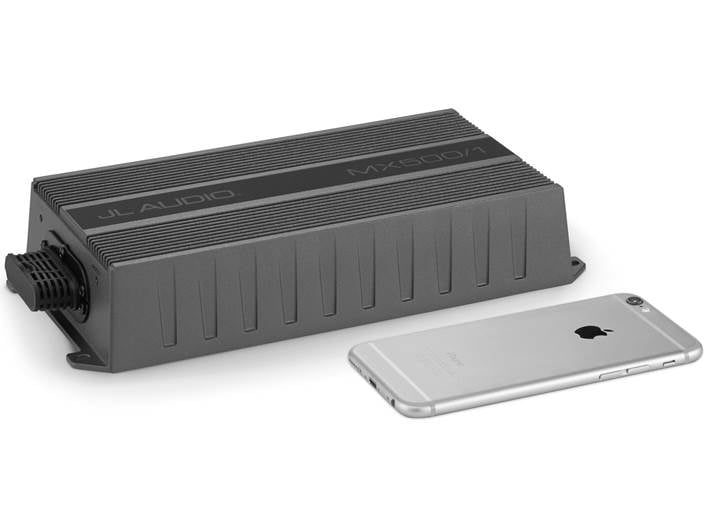

Product info:
- marine/powersports mono amplifier
- 300 watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)

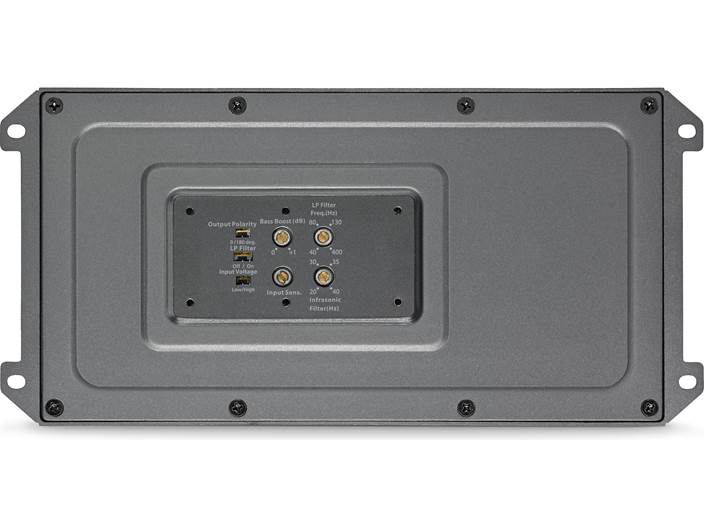

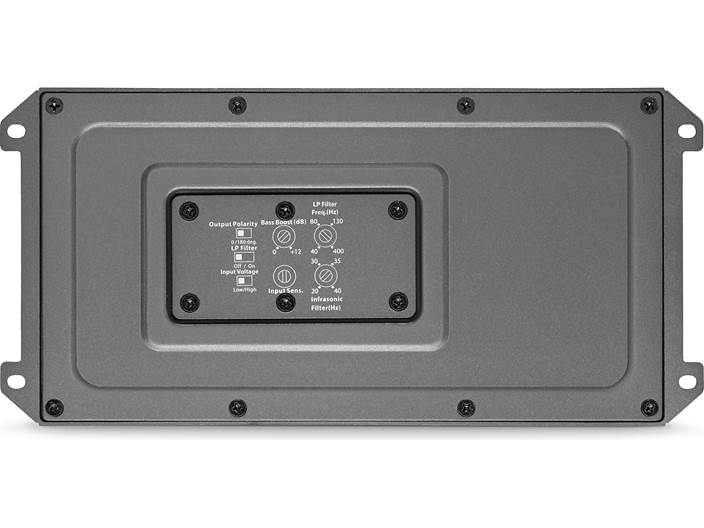

- variable low-pass filter (40-400 Hz, 24 dB/octave)
- variable subsonic filter (20-40 Hz, 12 dB/octave)
- bass boost (0-12 db at 43 Hz)
- Class D amplifier design with NextD™ switching amp technology
- IPX7 water-resistance rating
- corrosion-resistant cast aluminum chassis
Other Features:
- preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
- 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
- 9-3/8"W x 1-13/16"H x 4-9/16"D
- warranty: 2 years
- MFR # 010-03325-00
- Item # 13698407
-
JL Audio MX500/1 owner's manual
- Mono marine amplifier with 12" power/signal pigtails
- 4 Self-tapping screws (1" length)
| Performance | ||
|---|---|---|
|
|
300 x 1 |
|
|
|
N/A | |
|
|
500 x 1 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
N/A | |
|
|
N/A | |
|
|
2 | |
|
|
20-12k Hz | |
|
|
1% | |
|
|
97 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
Optional 13698404 | |
|
|
40-400 Hz | |
|
|
24 dB/octave | |
|
|
N/A | |
|
|
N/A | |
|
|
0-12 dB | |
|
|
43 Hz | |
|
|
No | |
|
|
50 | |
|
|
Yes | |
|
|
No | |
|
|
9-3/8 | |
|
|
1-13/16 | |
|
|
4-9/16 | |
|
|
2 Years | |
|
|
2 Years | |
