Product info:
General Features:

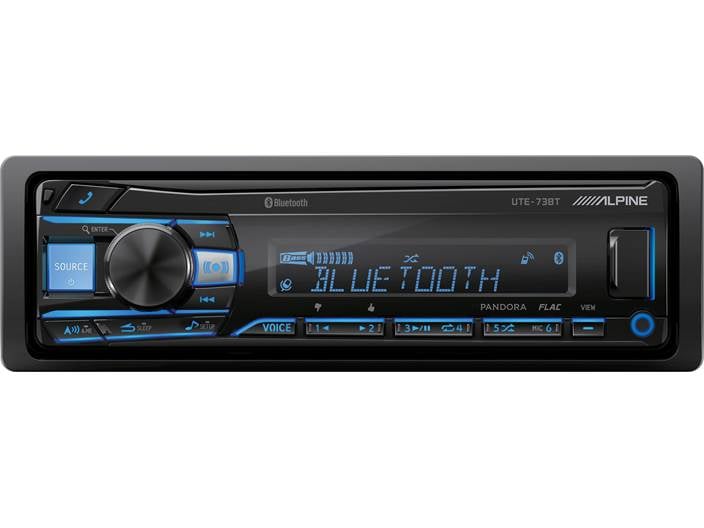

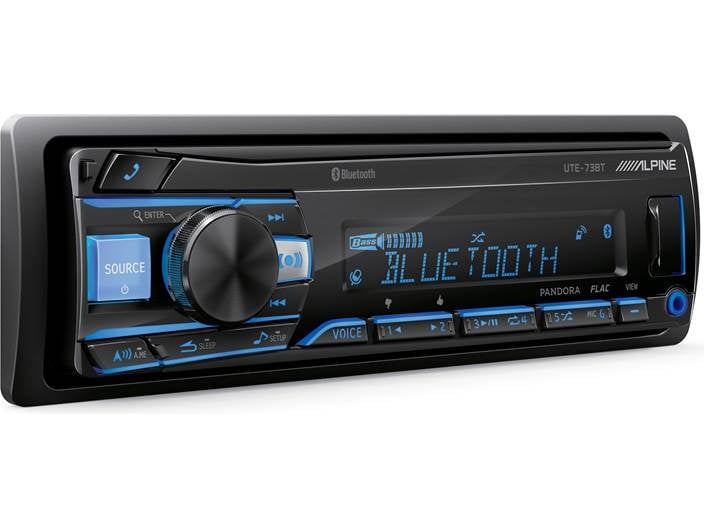

- digital media receiver with AM/FM tuner (does not play CDs)
- variable color illumination
- built-in Bluetooth for hands-free calls and music streaming
- plays MP3, WMA, and FLAC music files through USB
- compatible with iPod, iPhone, and Android
- Pandora playback with iPhone and Android
Audio Features:
- 3-band parametric EQ
- 24-bit digital-to-analog audio converter
- low-pass/high-pass filters
Expandability:

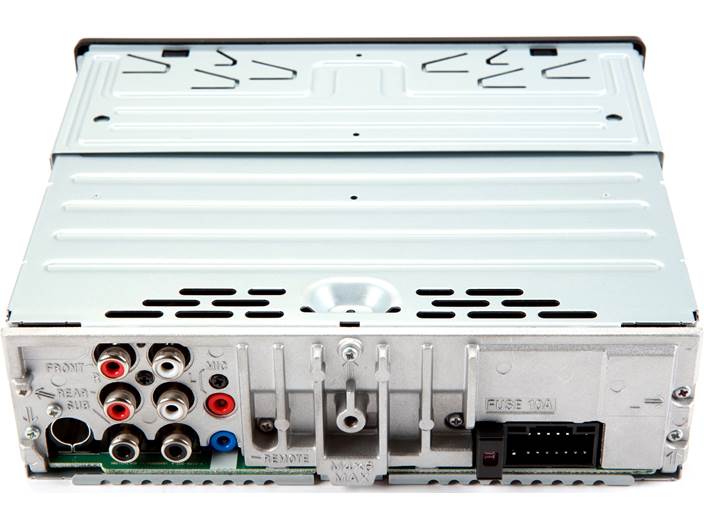

- inputs: front USB port, front auxiliary input
- outputs: 6-channel preamp outputs (2-volt front, rear, and sub)
Other Features and Specs:
- compatible with most factory steering wheel audio controls (adapter required)
- external microphone included
- built-in MOSFET amplifier (18 watts RMS/50 peak x 4 channels)
- CTA-2006 compliant
- warranty: 1 year
-
Alpine UTE-73BT owner's manual
- Digital media receiver (10A fuse)
- Face-plate
- Sleeve (installed)
- Trim ring (installed)

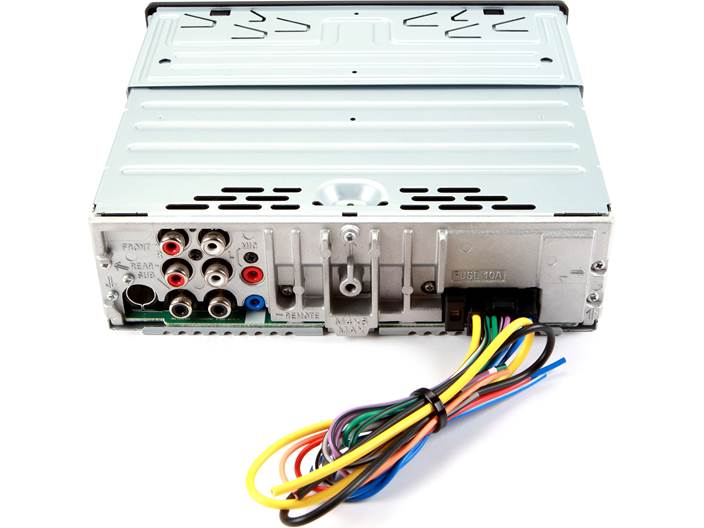

- Wiring harness
- Microphone w/ bracket (attached 11.5' cable terminated by a stereo 3.5mm male connector)
- Two-sided tape
- 4 ISO-screws (M5 x 8mm)
- 2 Radio removal tools
- Owner's Manual
| General | ||
|---|---|---|
|
|
18 watts | |
|
|
18 watts | |
| Expandability | ||
|---|---|---|
|
|
Front | |
|
|
--- | |
|
|
Front | |
|
|
1A | |
|
|
No | |
|
|
No | |
| Camera Input (Marine) | N/A | |
|
|
6-channel | |
|
|
Yes | |
|
|
No | |
|
|
USB memory | |
| Smartphone Control | ||
|---|---|---|
|
|
4S and newer | |
|
|
No | |
|
|
Bluetooth | |
|
|
Yes | |
|
|
No | |
|
|
No | |
| Tuner | ||
|---|---|---|
|
|
8 dBf | |
|
|
No | |
|
|
Seek | |
|
|
Yes | |
| File Playback | ||
|---|---|---|
|
|
MP3, WMA, AAC, FLAC | |
|
|
N | |
| Navigation Control | ||
|---|---|---|
|
|
--- | |
|
|
--- | |
|
|
--- | |
| Features & Specs | ||
|---|---|---|
|
|
Built-in | |
|
|
3.0 | |
|
|
N | |
|
|
N | |
|
|
No | |
|
|
2 | |
| Screen Size | --- | |
|
|
--- | |
|
|
Variable | |
|
|
Variable | |
|
|
3 | |
|
|
Optional | |
|
|
Adapter required | |
|
|
1 Year | |
|
|
1 Year | |
| Dimensions | ||
|---|---|---|
| Chassis Depth | 6.505 | |
| Chassis Width | 7.175 | |
| Chassis Height | 2.085 | |
