Product info:
General features:
- digital multimedia player with AM/FM tuner

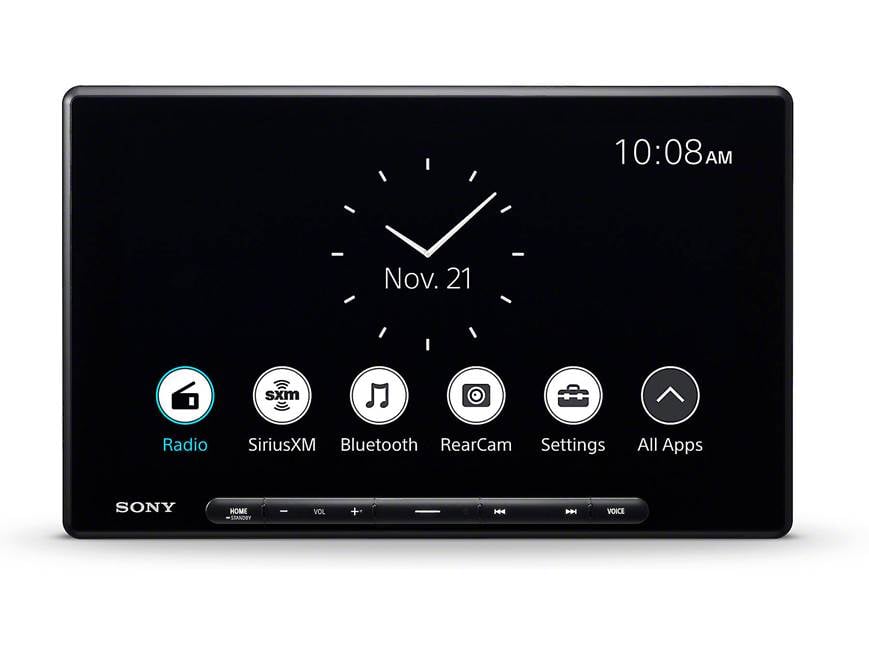

- 10.1" floating capacitive touchscreen display
- 4-way installation adjustment of screen
- customizable display with selectable apps area
- front-panel controls with variable color illumination
- Bluetooth hands-free calling and audio streaming (external microphone included)
- fits single-DIN (2" tall) dash openings
Smartphone features (see Details for info on compatibility with specific smartphones and apps):

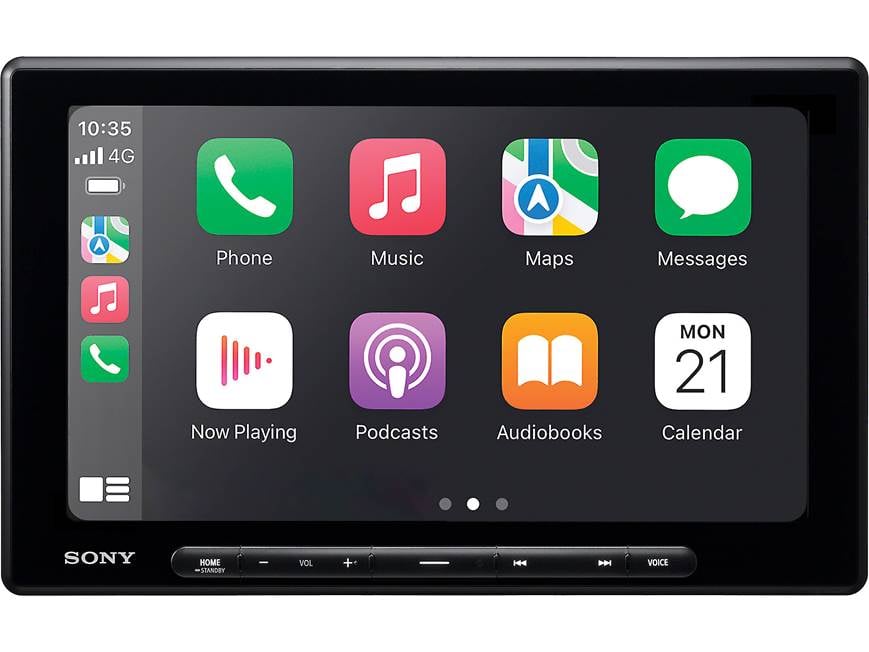

- Apple CarPlay compatible (wired or wireless)
- wired CarPlay may require software update
- Android Auto compatible (wired or wireless)
- Siri Eyes Free and Google Assistant control
Audio/Visual features:
- plays USB devices loaded with audio/video files (see Details for more info)
- 14-band graphic EQ
- digital time alignment
Expandability:
- compatible with aftermarket SiriusXM satellite radio tuner (sold separately, subscription required)
- inputs: rear USB-C input, front-, rear-, and third-camera composite video inputs, rear micro-HDMI input
- outputs: 6-channel preamp outputs (5-volt front, rear, sub)
Other information:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in amplifier (20 watts RMS CEA-2006/55 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- works with iDatalink Maestro module
- retains factory features in a wide selection of vehicles
- displays engine performance data on touchscreen
- warranty: 3 years
- MFR # XAVAX8500
- Item # 158XAV8500
-
Sony XAV-AX8500 owner's manual

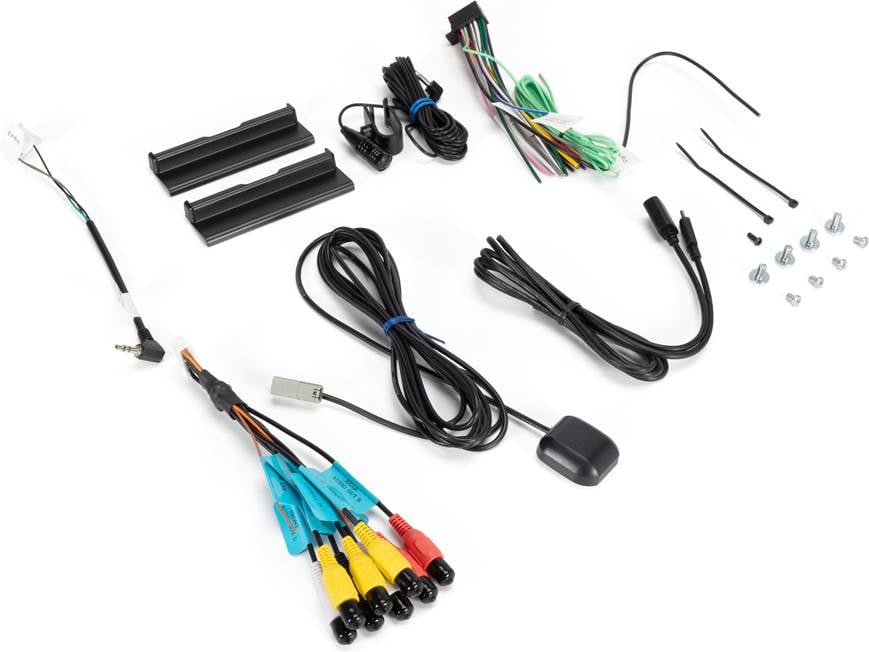

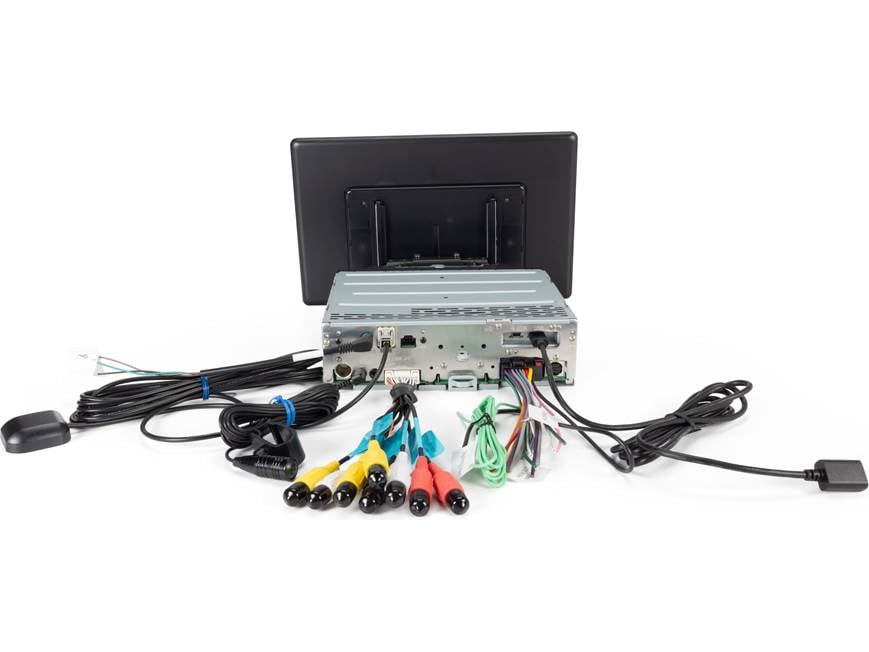

If you need assistance accessing this owner's manual, please give us a call. - Single-DIN source unit (10A fuse)
- 10.1" Touchscreen monitor
- Wiring harness (attached 6.5' parking brake wire)
- Camera/Preout harness
- 3-Wire to 3.5mm SWC adapter
- 59" USB-C extension cable
- GPS antenna (attached 10' cable terminated by a proprietary connector)
- GPS Antenna mounting plate
- Microphone with visor-bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
- Surface bracket
- Two-sided tape
- Four M5x9mm ISO-screws
- Four M4x6mm machine screws
- M3x8mm machine screw
- 2 Plastic covers
- 2 Wire-ties
- Operating Instructions
- Warranty Information
- Installation Note
- Angle Adjustment note
| General | ||
|---|---|---|
|
|
20 watts | |
|
|
20 watts | |
| Expandability | ||
|---|---|---|
|
|
No | |
|
|
Micro-HDMI (rear) | |
|
|
Rear (USB-C) | |
|
|
3A | |
|
|
Yes | |
|
|
Yes | |
| Camera Input (Marine) | N/A | |
|
|
6-channel | |
|
|
Yes | |
|
|
No | |
|
|
USB memory | |
| Smartphone Control | ||
|---|---|---|
|
|
5S and newer | |
|
|
Wired or wireless | |
|
|
Yes | |
|
|
Yes | |
|
|
Wired or wireless | |
|
|
No | |
| Tuner | ||
|---|---|---|
|
|
7 dBf | |
|
|
No | |
|
|
Seek | |
|
|
Yes | |
| File Playback | ||
|---|---|---|
|
|
MP3,WMA,AAC,ALAC,FLAC,WAV,DSD | |
|
|
ALAC,FLAC,WAV,DSD | |
| Navigation Control | ||
|---|---|---|
|
|
CarPlay, Android Auto | |
|
|
Apple, Google, Waze | |
|
|
Google, Waze | |
| Features & Specs | ||
|---|---|---|
|
|
Built-in | |
|
|
5.0 | |
|
|
SiriusXM | |
|
|
N | |
|
|
Yes | |
|
|
5 | |
| Screen Size | 10.1 | |
|
|
Swipeable (Capacitive) | |
|
|
--- | |
|
|
White | |
|
|
14 | |
|
|
Optional | |
|
|
Adapter required | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
| Dimensions | ||
|---|---|---|
| Chassis Depth | 6.655 | |
| Chassis Width | 7.075 | |
| Chassis Height | 1.985 | |
