Product info:
- digital multimedia player with AM/FM tuner (does not play CDs or DVDs)

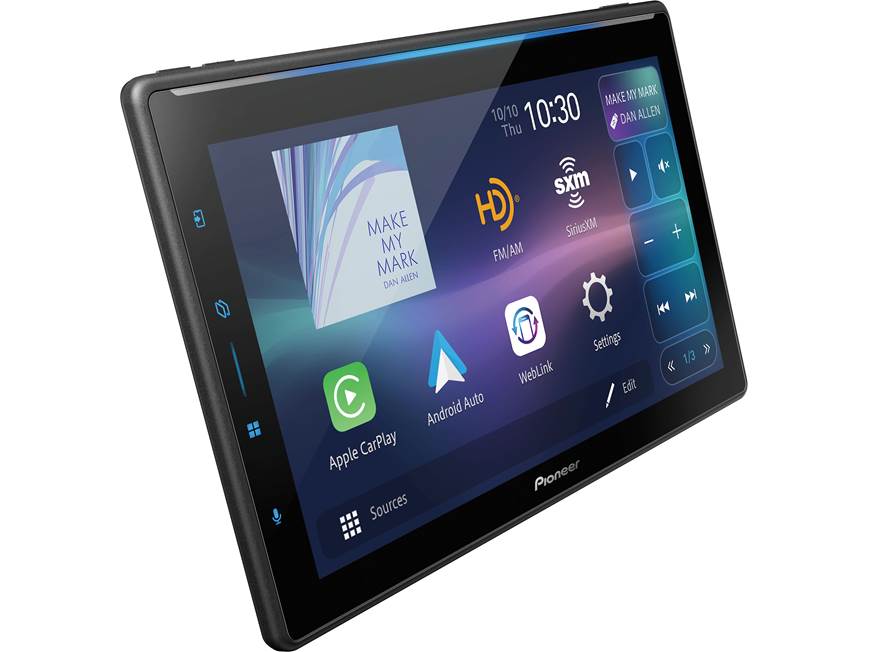

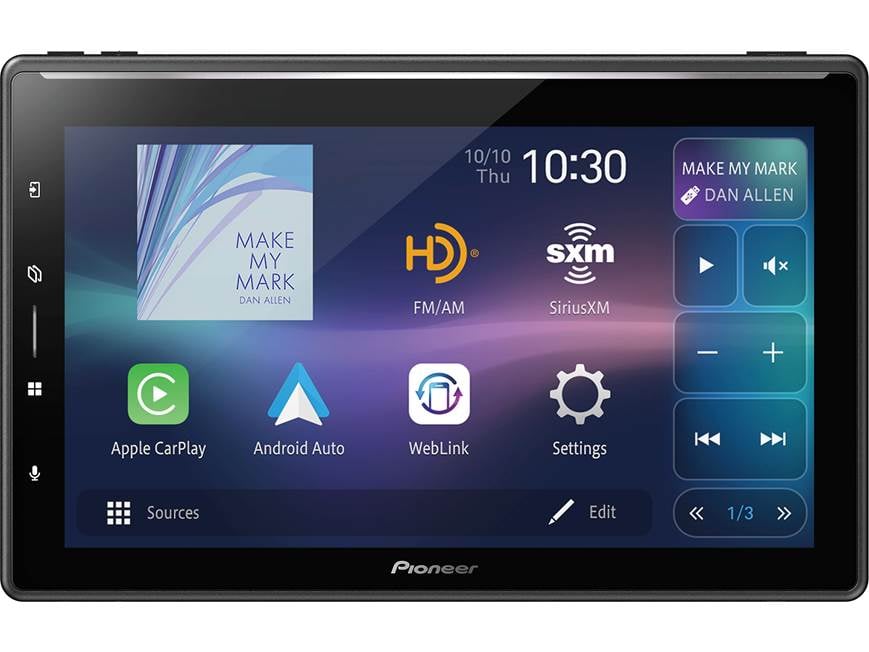

- 10.1" floating capacitive HD touchscreen display

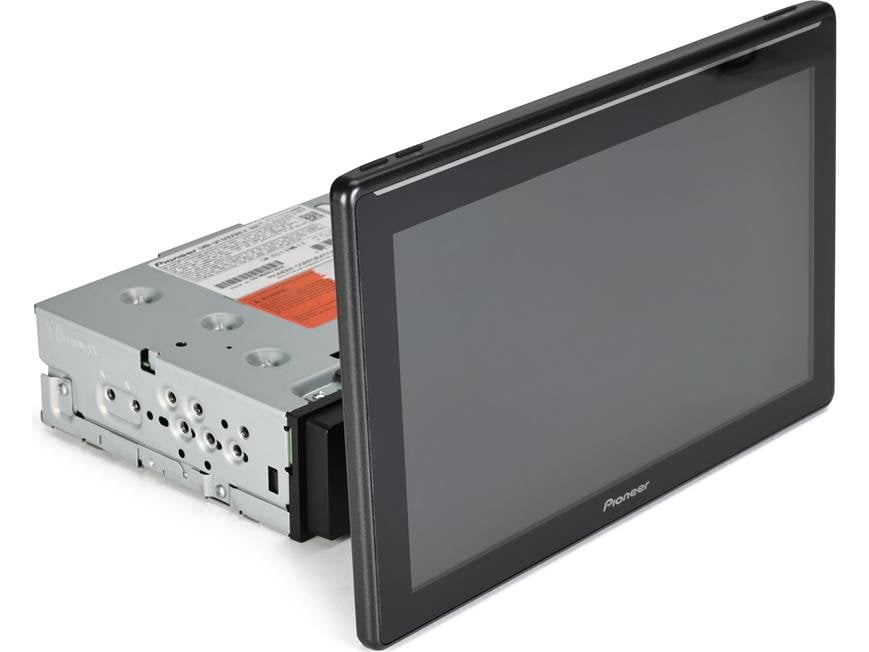

- fits single-DIN dash openings
- plays media loaded with MP3, WMA, AAC, and high-res FLAC, WAV, and DSD music files
- built-in Bluetooth for hands-free calling and music streaming
- built-in HD Radio tuner
Smartphone features:
- Android Auto and Apple CarPlay compatible (wired or wireless)
- Amazon Alexa via Pioneer Vozsis app
- display and command of select music, navigation, and other apps with iPhone and Android
- Pandora and Spotify control through Apple CarPlay, Android Auto, and Amazon Alexa
Expandability:
- compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
- inputs: rear USB input, rear A/V input (3.5 mm), two camera inputs (RCA)
- outputs: 6-channel preamp outputs (4-volt front, rear, sub)
Other information:
- Important Note - Monitor dimensions are 10.25" x 6.5". Before ordering, check for possible interference with your dash.
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- works with iDataLink Maestro module
- retains factory features in a wide selection of vehicles
- displays engine performance and other vehicle data on touchscreen
- dimensions:
- screen:10.205"W x 6.445"H x 3"D
- chassis: 7.015"W x 1.975"H x 6.695"D
- warranty: 1 year
- MFR # DMH-WT6000NEX
- Item # 130DMT6000
-

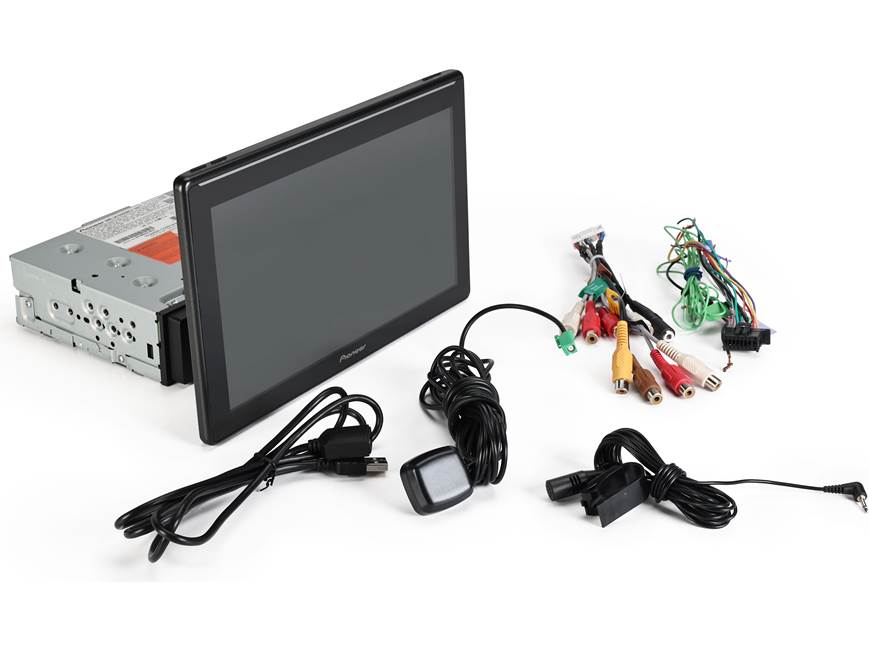

Pioneer DMH-WT6000NEX owner's manual
- Touchscreen monitor (rear cover pre-installed)
- Source unit (10A fuse)
- Wiring harness
- Preout/AV harness
- 58" USB extension cable
- Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
- GPS antenna (attached 11.5' cable)
- Self-adhesive square
- 3 Self-adhesive clips
- Two-sided tape
- Monitor bracket
- Monitor spacer
- 6 Pan-head ISO-mount phillips-screws (M5x8mm)
- 6 Countersunk ISO-mount phillips-screws (M5x8mm)
- 4 Binding phillips-head screws (M4x30mm)
- 4 Binding phillips-head screws (M4x12mm)
- 4 Binding phillips-head screws (4mmx6mm)
- 4 Machine phillips-head screws (M2x4mm)
- Quick Start Guide
| General | ||
|---|---|---|
|
|
14 watts | |
|
|
22 watts | |
| Expandability | ||
|---|---|---|
|
|
Mini (rear) | |
|
|
Mini (rear) | |
|
|
Rear | |
|
|
1.5 | |
|
|
Yes | |
|
|
Yes | |
| Camera Input (Marine) | N/A | |
|
|
6-channel | |
|
|
Yes | |
|
|
No | |
|
|
USB memory | |
| Smartphone Control | ||
|---|---|---|
|
|
8 and newer | |
|
|
Wired or wireless | |
|
|
Yes | |
|
|
Yes | |
|
|
Wired or wireless | |
|
|
Yes | |
| Tuner | ||
|---|---|---|
|
|
12 dBf | |
|
|
No | |
|
|
Seek | |
|
|
Yes | |
| File Playback | ||
|---|---|---|
|
|
MP3,WMA,AAC,FLAC,WAV | |
|
|
FLAC/WAV (192kHz) | |
| Navigation Control | ||
|---|---|---|
|
|
CarPlay, Android Auto | |
|
|
Apple, Google, Waze | |
|
|
Google, Waze | |
| Features & Specs | ||
|---|---|---|
|
|
Built-in | |
|
|
5.2 | |
|
|
SiriusXM 3.0 | |
|
|
Y | |
|
|
Yes | |
|
|
4 | |
| Screen Size | 10.1 | |
|
|
Swipeable (Capacitive) | |
|
|
--- | |
|
|
Variable | |
|
|
13 | |
|
|
N | |
|
|
Adapter required | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Dimensions | ||
|---|---|---|
| Chassis Depth | 6.695 | |
| Chassis Width | 7.015 | |
| Chassis Height | 1.975 | |
