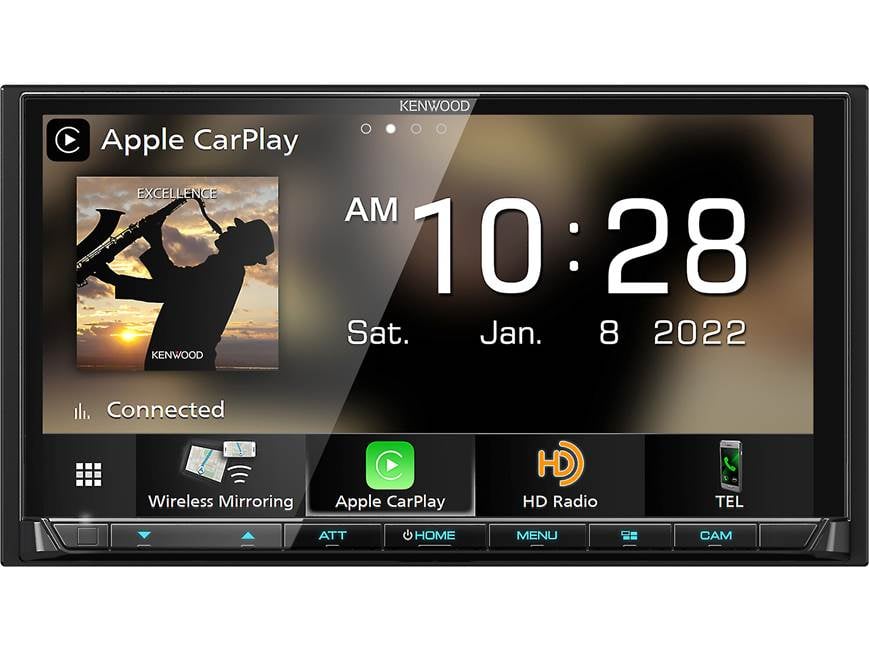

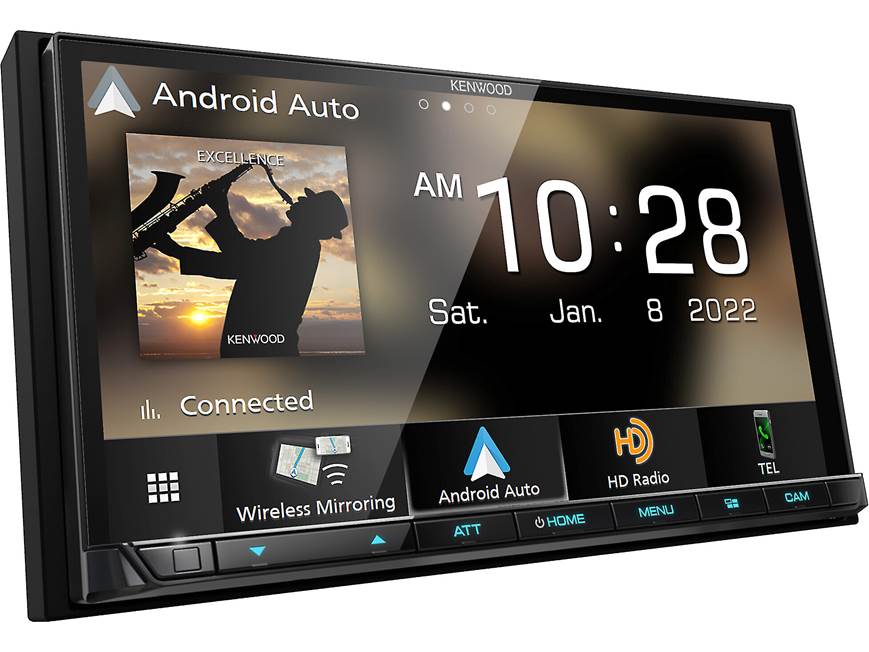

Kenwood Excelon DMX908S Digital multimedia receiver

Product info:

• digital multimedia player with AM/FM tuner
• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
• 6.95" capacitive touchscreen display
• HD Radio tuner built-in
• electronic viewing angle display adjustment (display does not physically move)
• fits double-DIN (4" tall) dash openings

Smartphone features:

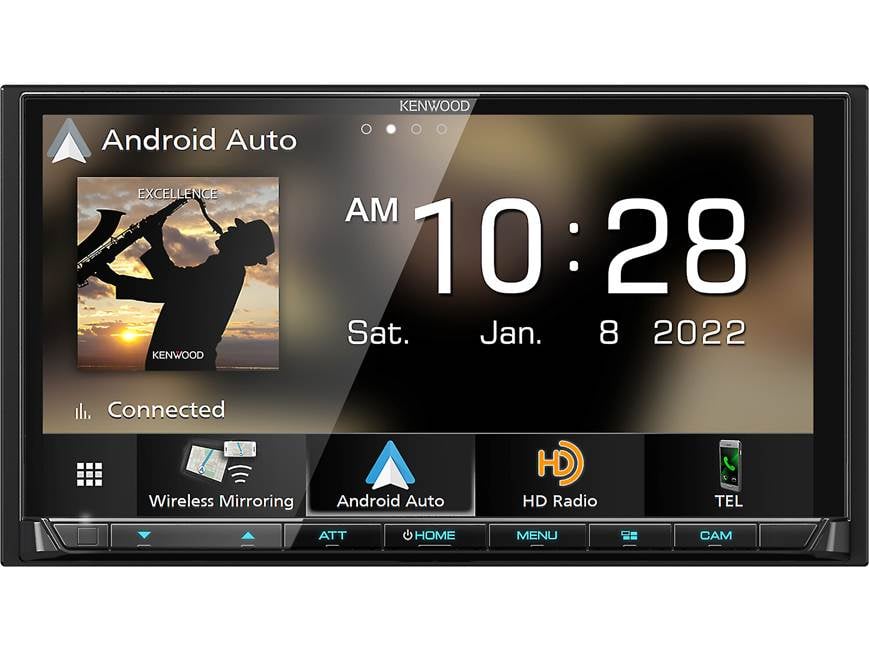

• wired and wireless Android Auto compatible
  • compatible with Google Assistant voice control when using Android Auto
• wired and wireless Apple CarPlay compatible
  • Siri voice control for select iPhones
• wired mirroring for iPhone and select Android devices via HDMI (adapters sold separately)
• wireless mirroring for select Android devices
• built-in Bluetooth with dual phone connection for hands-free calling and music streaming
• rapid Android charging via USB port

Audio/visual features:

• 13-band graphic EQ
• time alignment
• Drive EQ and digital signal processing
• 2- and 3-way crossover control for advanced amplifier, speaker, and subwoofer setups

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)

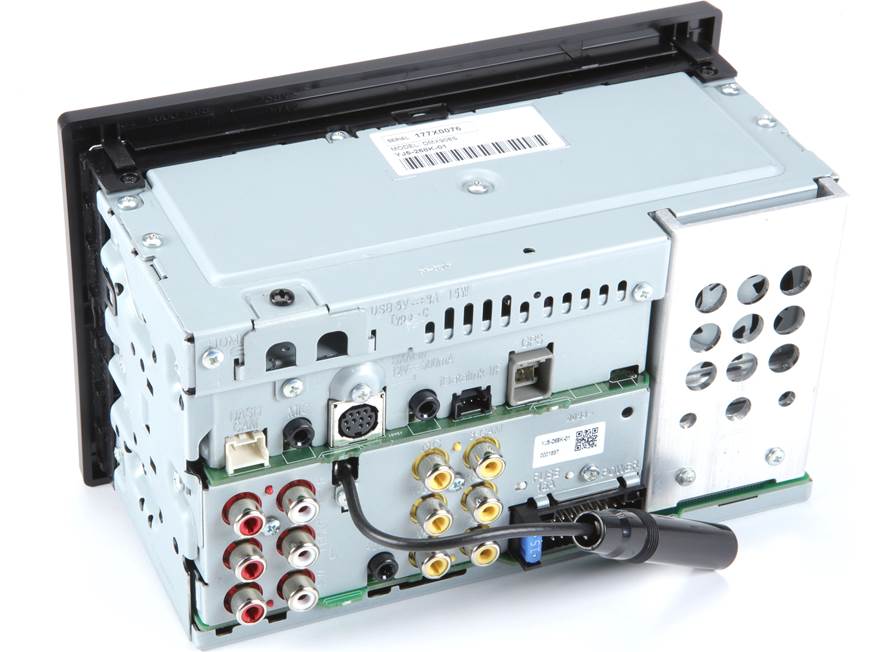

• inputs: rear USB-C input (USB-C to USB-A adapter included), four camera inputs, rear analog A/V input (can be converted to 5th cam input), control input for the Kenwood DRV-N520 dash cam
• outputs: rear video output (RCA), 6-channel preamp outputs (5-volt front, rear, sub)

Other information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in amplifier (22 watts RMS/50 peak x 4 channels)
• works with iDatalink Maestro RR or RR2 modules
  • retains factory features in a wide selection of vehicles
  • displays engine performance data on touchscreen
• warranty: 2 years

• MFR # DMX908S
• Item # 113DMX908S

• Kenwood Excelon DMX908S owner's manual

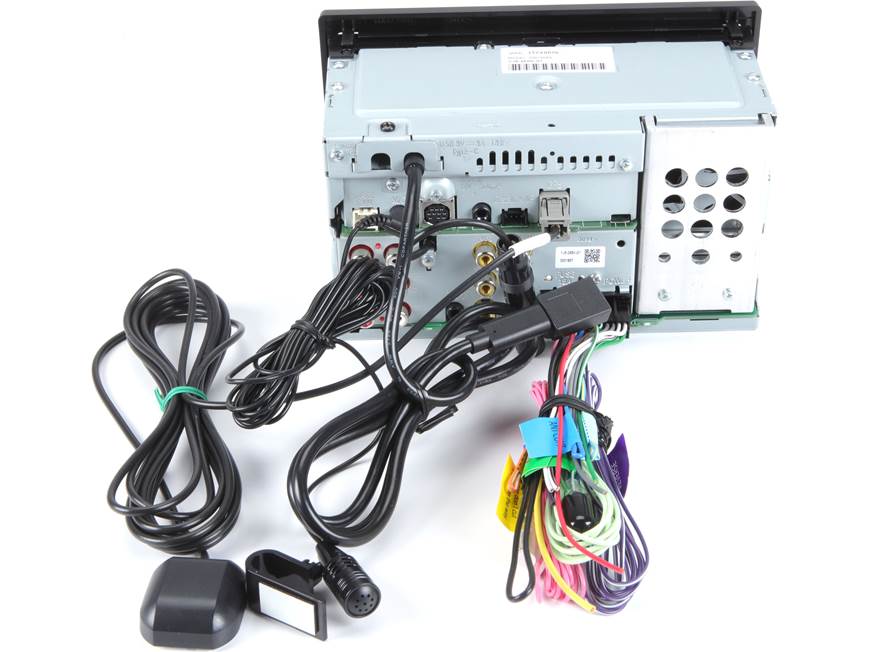

• Digital multimedia receiver w/ integrated 6.95" monitor (15A fuse)
• Wiring harness
• Mounting sleeve (pre-installed)
• Trim-ring
• USB-C to USB-A adapter
• 40" USB-C extension cable
• GPS antenna (attached 11.5' cable terminated by a proprietaery connector)
• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• Self-adhesive pad
• 6 Pan-head ISO-mount screws (M5x8mm)
• 6 Flat-head ISO-mount screws (M5x8mm)
• USB/HDMI connector bracket (pre-installed)
• 2 Removal tools
• Quick Start Guide
• Warranty Information
