Product info:
General features:

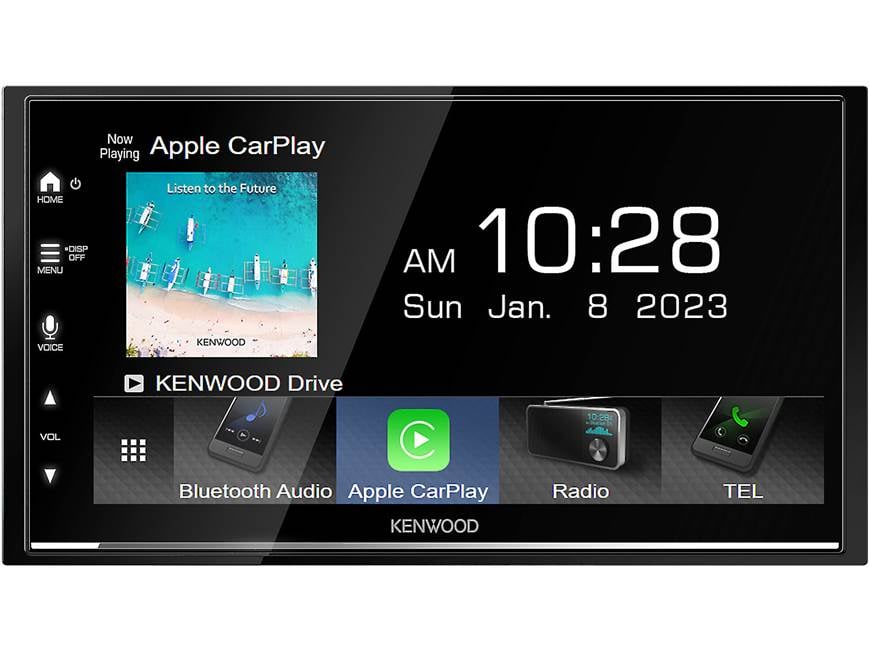

- digital multimedia player with AM/FM tuner
- plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)

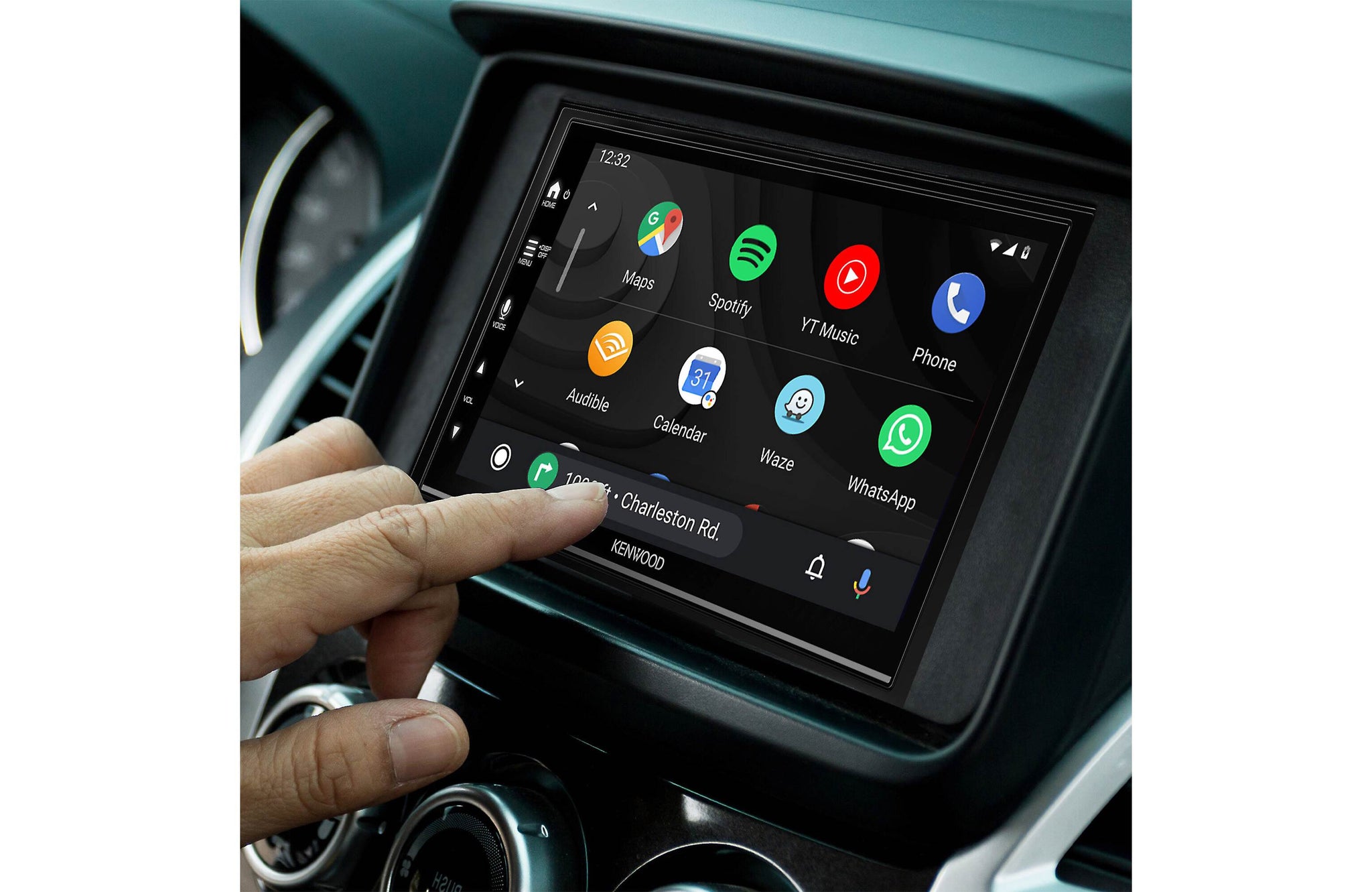

- 6.75" capacitive touchscreen HD display
- Waze-ready with Apple CarPlay or Android Auto
- electronic viewing angle display adjustment (display does not physically move)
- fits double-DIN (4" tall) dash openings
Smartphone features:
- wired and wireless Android Auto compatible
- compatible with Google Assistant voice control when using Android Auto
- wired and wireless Apple CarPlay compatible
- Siri voice control for select iPhones
- wired mirroring for iPhone and select Android devices via HDMI (adapters sold separately)
- wired USB mirroring for select Android devices using free Mirroring OA for Kenwood app
- built-in Bluetooth with dual phone connection for hands-free calling and music streaming
- rapid Android charging via USB port
Audio/visual features:
- 13-band graphic EQ
- time alignment
- Drive EQ and digital signal processing
- 3-way crossover
Expandability:
- compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
- inputs: rear USB-A input, two camera inputs, rear analog A/V input (can be converted to third cam input)
- outputs: rear video output (RCA), 6-channel preamp outputs (4-volt front, rear, sub)
Other information:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in amplifier (22 watts RMS/50 peak x 4 channels)
- works with iDatalink Maestro RR or RR2 modules
- retains factory features in a wide selection of vehicles
- displays engine performance data on touchscreen
- warranty: 1 year
- MFR # DMX8709S
- Item # 113DMX8709
-
Kenwood DMX8709S owner's manual

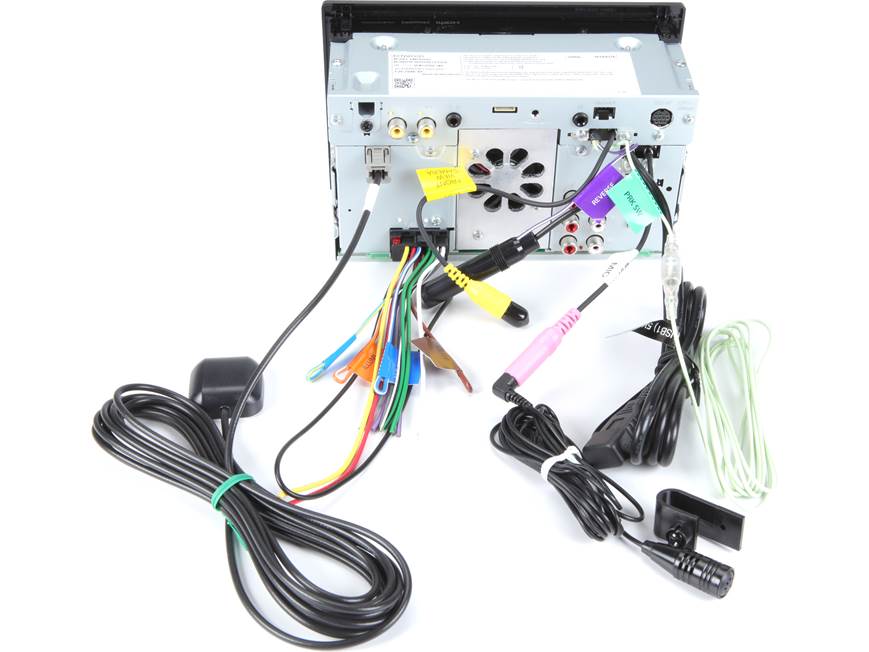

- Digital multimedia receiver w/ fixed 6.75" touchscreen monitor (10A fuse)
- Sleeve (attached)
- Trim ring
- Wiring harness
- 6.5' Parking brake wire (light green)
- Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- GPS antenna (attached 11.5' cable terminated by a proprietary connector)
- Self-adhesive pad
- 2 Radio removal tools
- 6 Pan-head ISO-mount screws (M5x8mm)
- 6 Flat-head ISO-mount screws (M5x8mm)
- Quick Start Guide
- Warranty card
| General | ||
|---|---|---|
|
|
--- | |
|
|
22 watts | |
| Expandability | ||
|---|---|---|
|
|
Mini (rear) | |
|
|
HDMI (rear), Mini (rear) | |
|
|
Rear | |
|
|
1.5A | |
|
|
Yes | |
|
|
Yes | |
| Camera Input (Marine) | N/A | |
|
|
6-channel | |
|
|
Yes | |
|
|
No | |
|
|
USB Memory | |
| Smartphone Control | ||
|---|---|---|
|
|
6S and newer | |
|
|
Wired or wireless | |
|
|
CarPlay only | |
|
|
Yes | |
|
|
Wired or wireless | |
|
|
No | |
| Tuner | ||
|---|---|---|
|
|
7.2 dBf | |
|
|
No | |
|
|
Seek | |
|
|
Yes | |
| File Playback | ||
|---|---|---|
|
|
MP3,WMA,AAC,FLAC,WAV | |
|
|
WAV/FLAC (24-bit/192kHz) | |
| Navigation Control | ||
|---|---|---|
|
|
CarPlay, Android Auto | |
|
|
Apple, Google, Waze | |
|
|
Google, Waze | |
| Features & Specs | ||
|---|---|---|
|
|
Built-in | |
|
|
5.0 | |
|
|
SiriusXM 2.0 | |
|
|
N | |
|
|
Yes | |
|
|
4 | |
| Screen Size | 6.75 | |
|
|
Swipeable (Capacitive) | |
|
|
--- | |
|
|
Variable | |
|
|
13 | |
|
|
Optional | |
|
|
Adapter required | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Dimensions | ||
|---|---|---|
| Chassis Depth | 3.575 | |
| Chassis Width | 7.005 | |
| Chassis Height | 3.945 | |
