Product info:

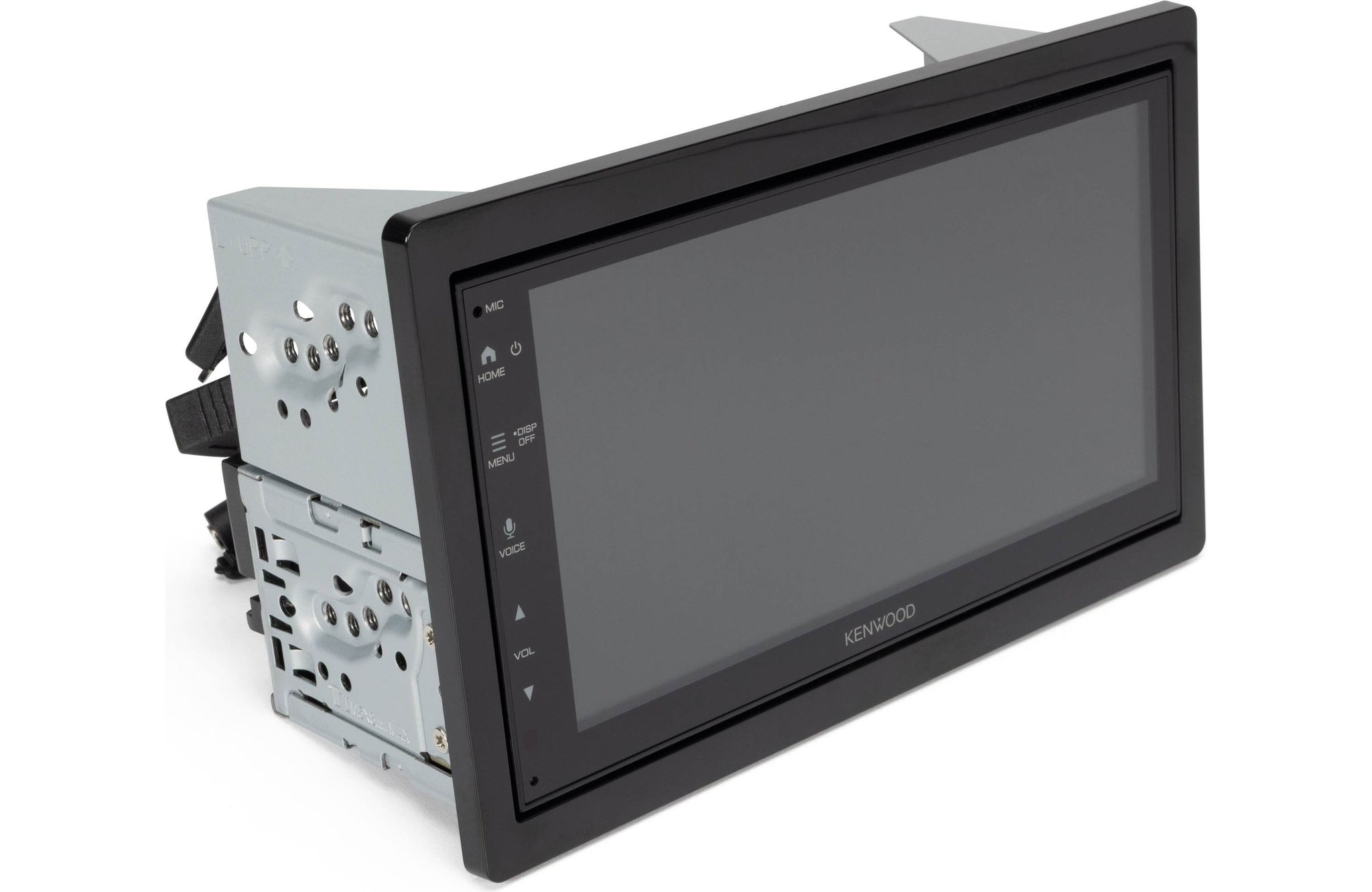

- digital multimedia receiver with AM/FM tuner
- 6.8" capacitive touchscreen
- fits double-DIN dash openings
Smartphone features:

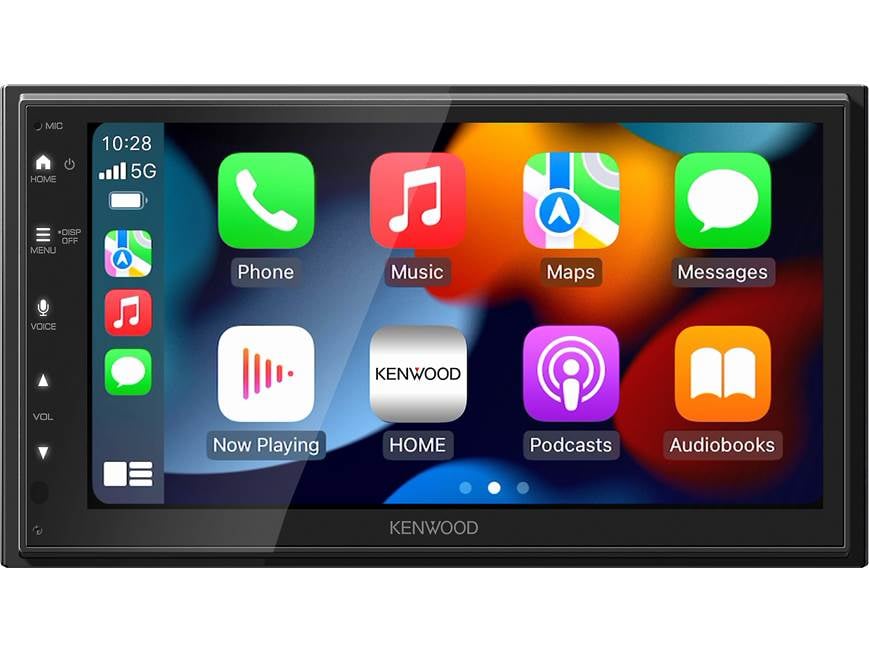

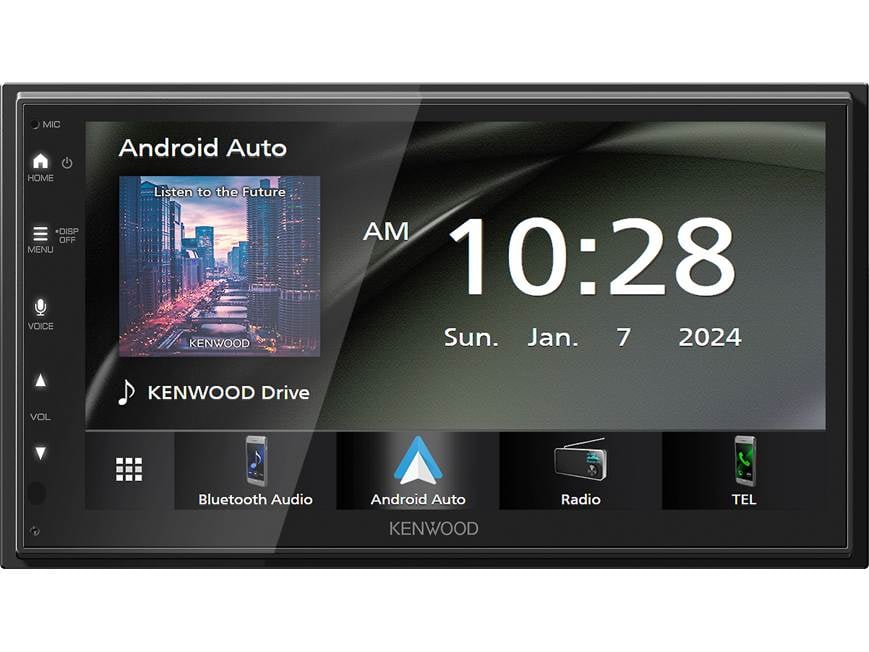

- wired or wireless Android Auto and Apple CarPlay compatible
- control and charging of Apple and Android devices using the USB connection
- voice control within Apple CarPlay (Siri) and Android Auto (Google Voice)
- wireless mirroring using free MirrorAPP+ app with select Android and iPhone models
- built-in Bluetooth for hands-free calling and audio streaming with dual phone connection
Audio/Video features:
- plays audio and video from USB memory devices
- 13-band equalizer with digital time alignment
- crossover and slope settings for front speakers, rear speakers, and subwoofer
Expandability:
- compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
- inputs: rear USB input (2.1A), backup camera input (RCA)
- outputs: rear video output (RCA), 6-channel preamp outputs (3.7-volt front, rear, subwoofer)
Other information:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- compatible with most factory steering wheel audio controls (adapter required)
- works with iDatalink Maestro RR or RR2 modules
- retains factory features in a wide selection of vehicles
- displays engine performance data on touchscreen
- built-in amp (22 watts RMS/50 watts peak x 4 channels)
- optional wireless remote control
- warranty: 1 year
- MFR # DMX50S
- Item # 113DMX50S
-
- Digital multimedia receiver (15A fuse)
- Trim ring
- 2 Side brackets (pre-installed)
- Wiring harness
- 6.5' Light-green parking brake wire (pre-installed)
- Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- GPS antenna (attached 10' cable terminated by a microUSB connector)
- Self-adhesive mounting pad
- Two-sided tape
- Trim-ring removal tool
- 4 Pan-head ISO-mount screws
- 4 Flat-head ISO-mount screws
- Quick Start Guide
- Warranty card
| General | ||
|---|---|---|
|
|
--- | |
|
|
22 watts | |
| Expandability | ||
|---|---|---|
|
|
No | |
|
|
No | |
|
|
Rear | |
|
|
2.1A | |
|
|
Yes | |
|
|
No | |
| Camera Input (Marine) | N/A | |
|
|
6-channel | |
|
|
Yes | |
|
|
No | |
|
|
USB memory | |
| Smartphone Control | ||
|---|---|---|
|
|
6S and newer | |
|
|
Wired or wireless | |
|
|
CarPlay only | |
|
|
Yes | |
|
|
Wired or wireless | |
|
|
No | |
| Tuner | ||
|---|---|---|
|
|
16.2 dBf | |
|
|
No | |
|
|
Seek | |
|
|
Yes | |
| File Playback | ||
|---|---|---|
|
|
MP3,WMA,AAC,WAV,FLAC | |
|
|
FLAC/WAV (up to 24-bit/192kHz) | |
| Navigation Control | ||
|---|---|---|
|
|
CarPlay, Android Auto | |
|
|
Apple, Google, Waze | |
|
|
Google, Waze | |
| Features & Specs | ||
|---|---|---|
|
|
Built-in | |
|
|
5.0 | |
|
|
SiriusXM 2.0 | |
|
|
N | |
|
|
Yes | |
|
|
3.7 | |
| Screen Size | 6.8 | |
|
|
Swipeable (Capacitive) | |
|
|
--- | |
|
|
Blue | |
|
|
13 | |
|
|
Optional | |
|
|
Adapter required | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Dimensions | ||
|---|---|---|
| Chassis Depth | 3.545 | |
| Chassis Width | 7.015 | |
| Chassis Height | 3.945 | |
