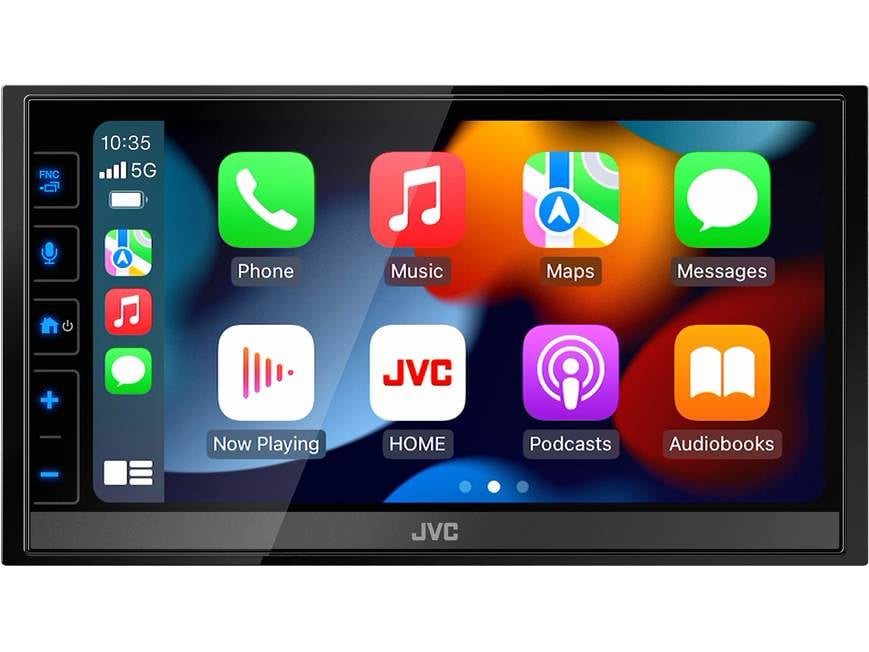

JVC KW-M785BW Digital multimedia receiver

Product info:

General features:

• digital multimedia player with AM/FM tuner
• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
• 6.8" capacitive touchscreen display
• Waze-ready with Apple CarPlay or Android Auto
• electronic viewing angle display adjustment (display does not physically move)
• fits double-DIN (4" tall) dash openings

Smartphone features:

• display and command of select music, navigation, and other apps with iPhone and Android

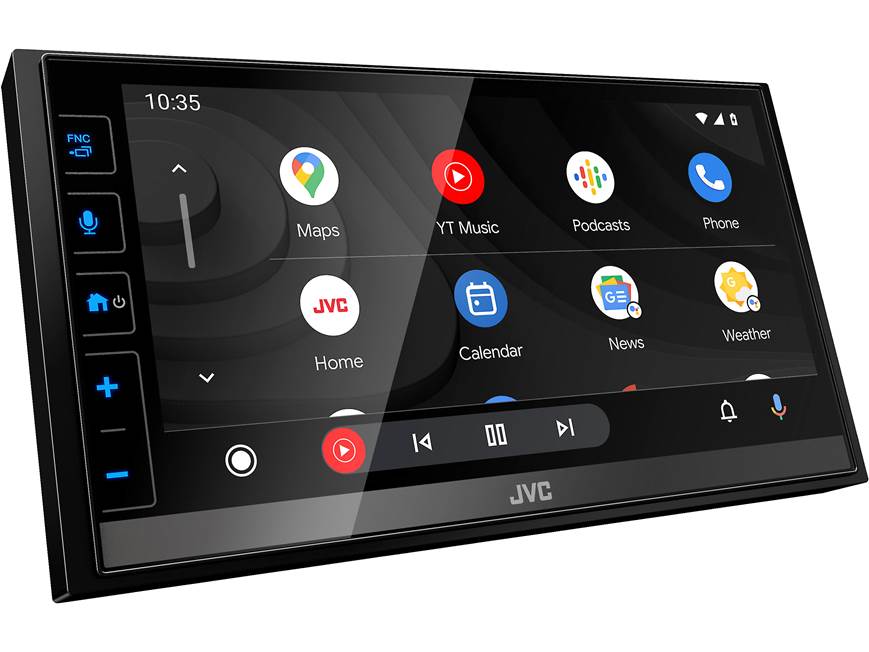

• wired or wireless Android Auto compatible
  • compatible with Google Assistant voice control when using Android Auto

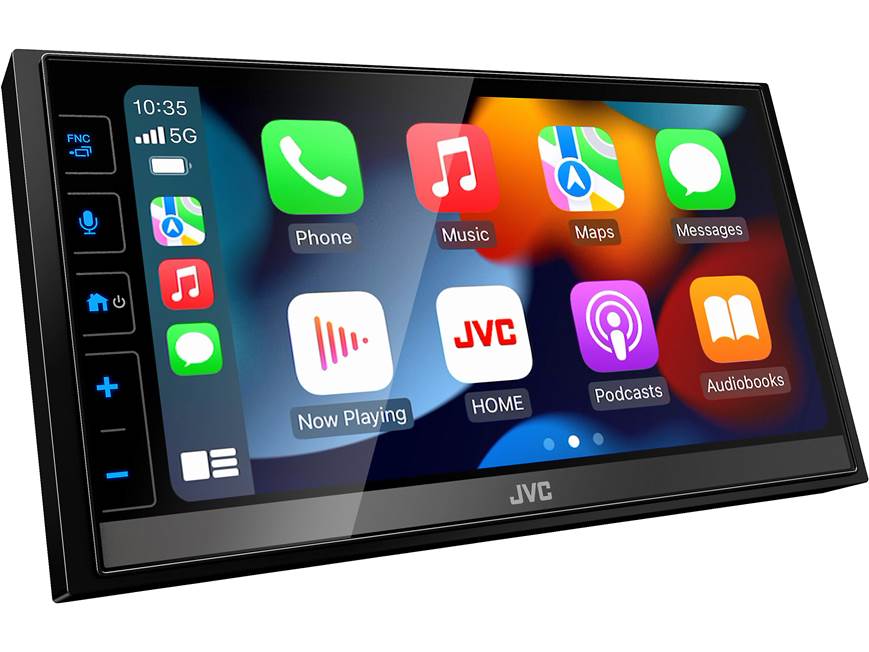

• wired or wireless Apple CarPlay compatible
  • Siri Eyes Free voice control for select iPhones
• wired USB mirroring for select Android devices
• wired micro HDMI mirroring for select smartphones (cable and adapter sold separately)
• built-in Bluetooth with dual phone connection for hands-free calling and music streaming
• built-in iPhone and rapid Android charging via USB port

Audio/Visual features:

• 13-band graphic EQ
• digital time alignment
• Volume Link EQ boosts frequencies that are affected by road noise
• 2- and 3-way crossover settings

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
• inputs: rear USB-A input, front- and rear-camera inputs, rear micro HDMI input, rear analog 3.5 mm A/V input (configurable for a third camera input)
• outputs: rear analog video output (RCA), 6-channel preamp outputs (4-volt front, rear, sub)

Other information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in amplifier (22 watts RMS/50 peak x 4 channels)
• compatible with most factory steering wheel audio controls (adapter required)
• works with iDatalink Maestro RR and RR2 modules
  • retains factory features in a wide selection of vehicles
  • displays engine performance data on touchscreen
• warranty: 2 years (1 year for Canada)

• MFR # KW-M785BW
• Item # 105KWM785B

• JVC KW-M785BW owner's manual



• Digital multimedia receiver w/ fixed 6.75" touchscreen monitor (10A fuse)
• Sleeve (attached)
• Trim ring

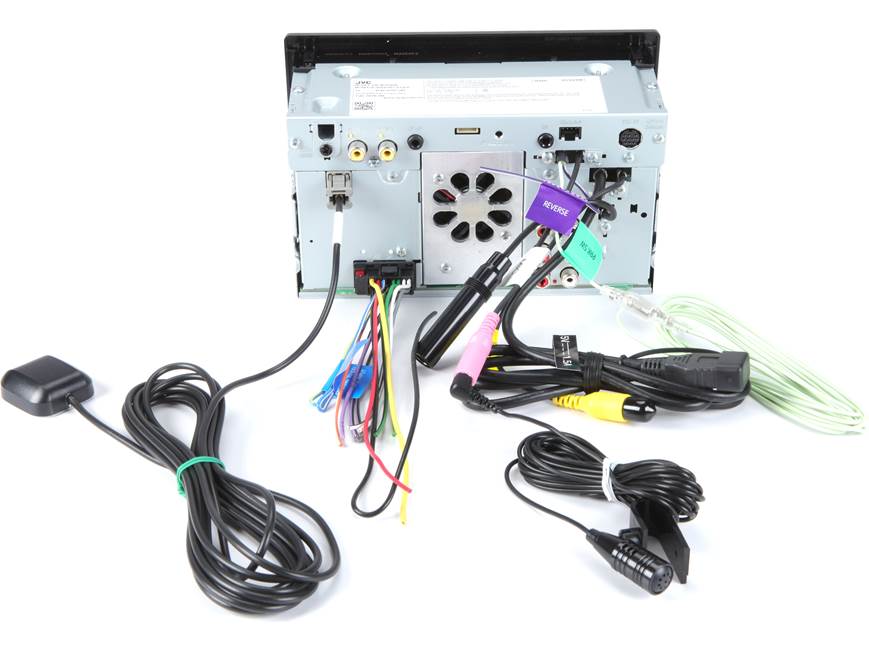

• Wiring harness
• 6.5' Parking brake wire (light green)
• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• GPS antenna (attached 11.5' cable terminated by a proprietary connector)
• Self-adhesive pad
• 2 Radio removal tools
• 6 Pan-head ISO-mount screws (M5x8mm)
• 6 Flat-head ISO-mount screws (M5x8mm)
• Quick Start Guide
• Warranty card
