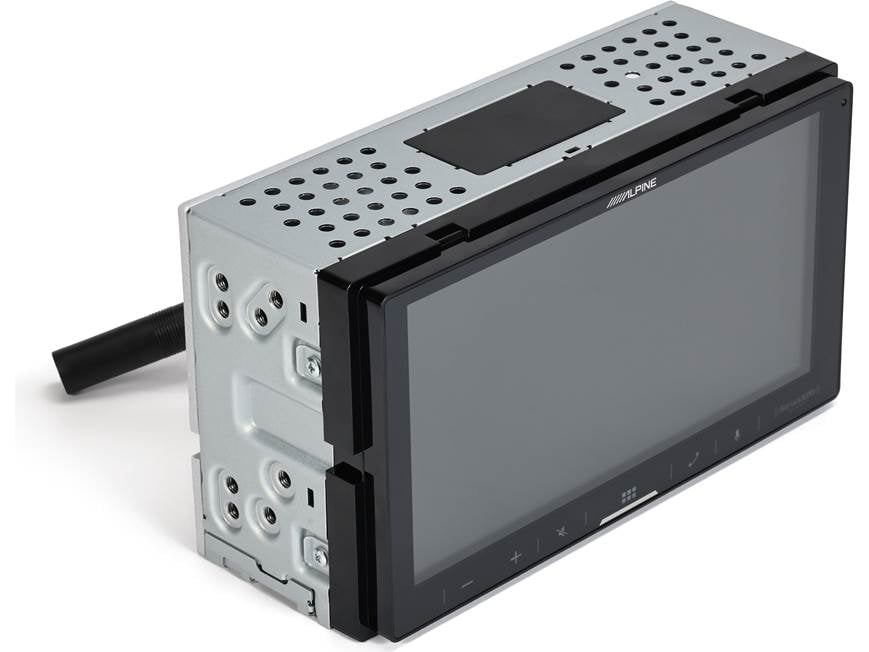

Product info:
- digital media receiver with AM/FM tuner (does not play discs)
- 6.75" capacitive touchscreen
- designed for use with Alpine's KTA-450 or KTA-200M power pack amplifiers
- fits in double-DIN (4" tall) dash openings
- Bluetooth hands-free calling and audio streaming (external microphone included)
Smartphone features (see Details for info on compatibility with specific smartphones and apps):

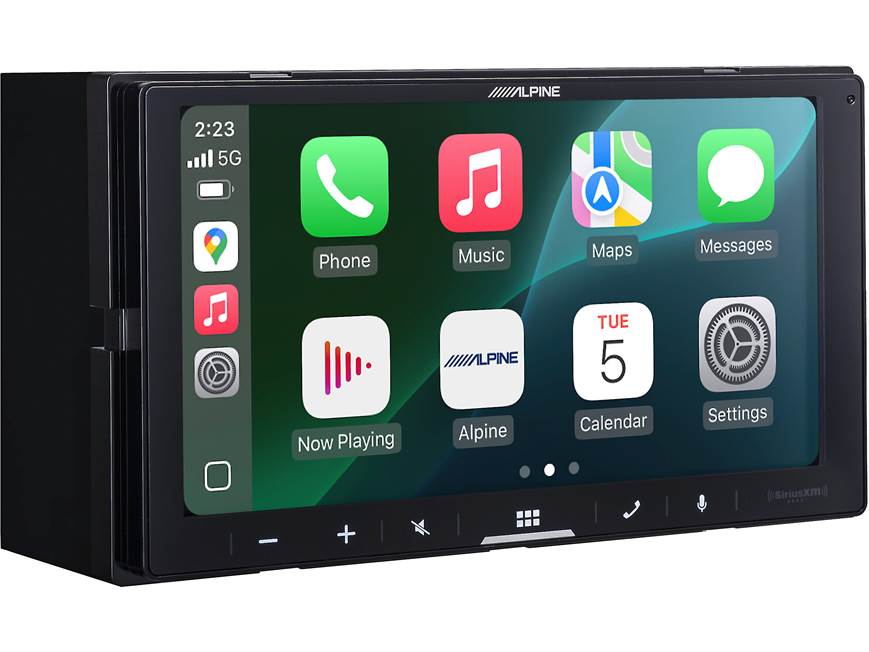

- Android Auto and Apple CarPlay compatible (wired or wireless)
- built-in iPhone control
- Siri Eyes Free and Google Assistant control
- playback and control of music files on compatible Android devices
Audio/video features:
- plays MP3, WMA, AAC, WAV, and FLAC music files (see Details tab for full capabilities)
- plays AVI, MPEG 1/2, MPEG-4, and WMV video files (see Details tab for full capabilities)
- 13-band graphic equalizer
- 6-channel time correction
- front, rear, and subwoofer crossovers
- Sound Boost Menu (Bass Boost, Mid-Bass Boost, & Subwoofer Controls)
- Lighting Link Control (compatible with Alpine PrismaLink subwoofers)
Expandability:
- works with SiriusXM SXV300 tuner (not included)
- inputs: rear USB port, rear 3.5mm audio/video auxiliary input, dual camera inputs
- outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer)
Other information:
- wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
- compatible with most factory steering wheel audio controls (adapter required)
- built-in amplifier (16 watts RMS/50 peak x 4 channels)
- CTA-2006 compliant
- warranty: 1 year
- MFR # ILX-W770
- Item # 500ILXW770
-

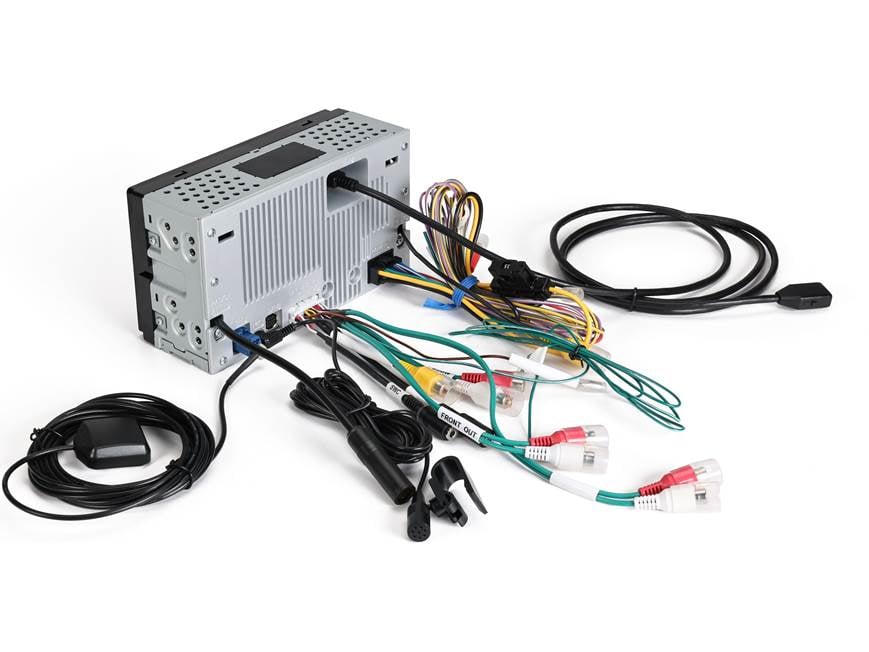

Alpine iLX-W770 owner's manual
- Digital media receiver
- Wiring harness (15A fuse)
- Preout/Camera harness
- 42" USB extension cable
- GPS antenna (attached 12' cable terminated by a Fakra connector)
- Sefl-adhesive mount for GPS antenna
- Microphone with bracket (attached 13' cable terminated by a male 2.5mm mono connector)
- Adhesive pad for Bluetooth mic
- Four M5x8mm pan-head phillips-screws
- Four M5x8mm counter-sunk phillips-screws
- Online Manual Information
- Online Registration Information
| General | ||
|---|---|---|
|
|
16 watts | |
|
|
16 watts | |
| Expandability | ||
|---|---|---|
|
|
Mini (rear) | |
|
|
Mini (rear) | |
|
|
Rear | |
|
|
1.5A | |
|
|
Yes | |
|
|
Yes | |
| Camera Input (Marine) | N/A | |
|
|
6-channel | |
|
|
Yes | |
|
|
No | |
|
|
USB memory | |
| Smartphone Control | ||
|---|---|---|
|
|
6 and newer | |
|
|
Wired or wireless | |
|
|
CarPlay only | |
|
|
Yes | |
|
|
Wired or wireless | |
|
|
No | |
| Tuner | ||
|---|---|---|
|
|
9 dBf | |
|
|
No | |
|
|
Seek | |
|
|
No | |
| File Playback | ||
|---|---|---|
|
|
MP3, WMA, AAC, FLAC, WAV | |
|
|
N | |
| Navigation Control | ||
|---|---|---|
|
|
CarPlay, Android Auto | |
|
|
Apple, Google, Waze | |
|
|
Google, Waze | |
| Features & Specs | ||
|---|---|---|
|
|
Built-in | |
|
|
5.0 | |
|
|
SiriusXM | |
|
|
N | |
|
|
Yes | |
|
|
4 | |
| Screen Size | 6.75 | |
|
|
Swipeable (Capacitive) | |
|
|
--- | |
|
|
Variable | |
|
|
13 | |
|
|
N | |
|
|
Adapter required | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Dimensions | ||
|---|---|---|
| Chassis Depth | 3.195 | |
| Chassis Width | 7.015 | |
| Chassis Height | 3.945 | |
