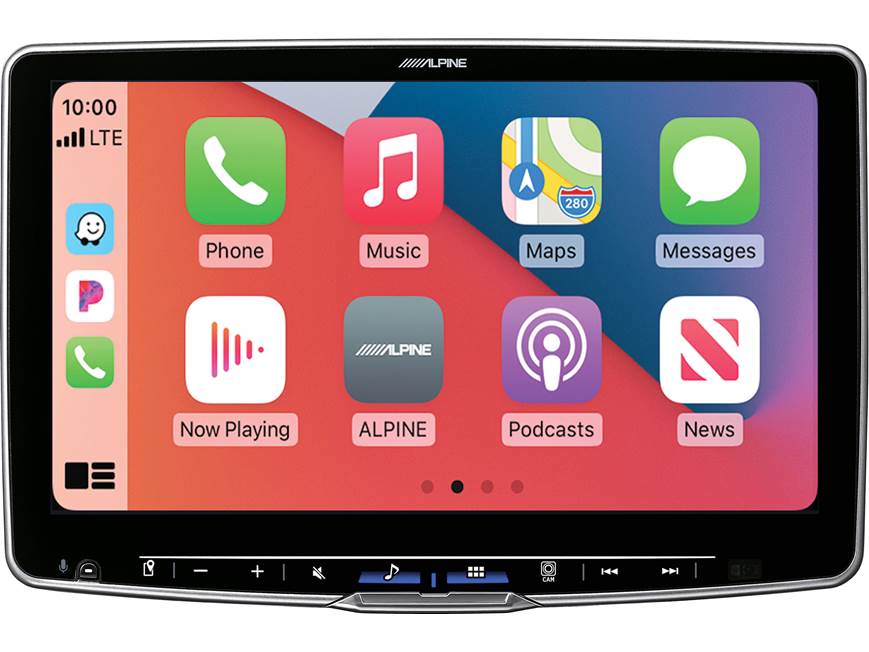

Alpine Halo11 iLX-F511 Digital multimedia receiver — an 11" touchscreen that fits in a single-DIN dash opening

Product info:

General features:

• digital multimedia receiver with AM/FM tuner (does not play discs)
• 11" hi-res capacitive touchscreen with adjustable vertical mounting positions and viewing angles
• high-resolution (1280x720 pixels) display
• fits single-DIN dash openings

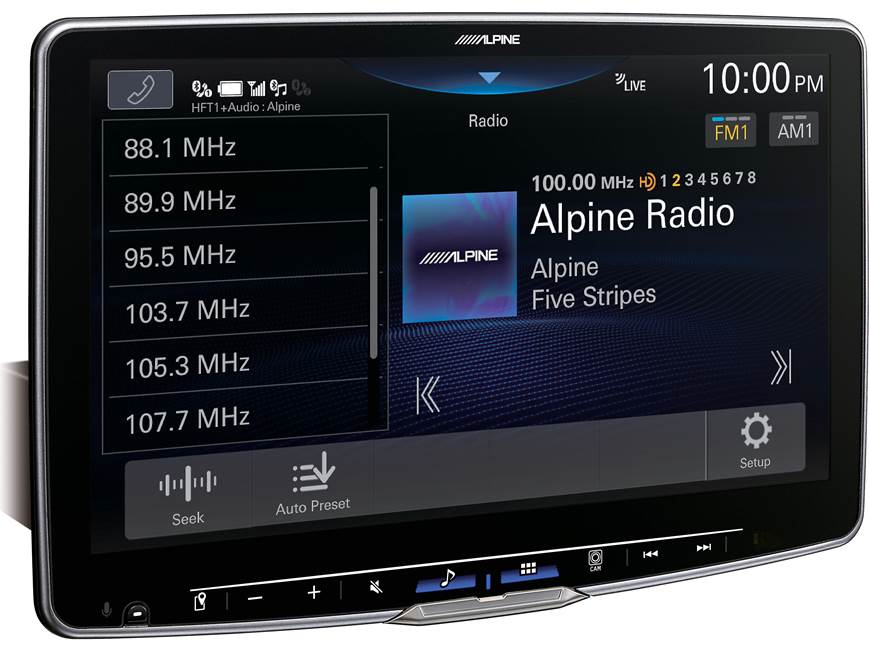

• HD Radio tuner built-in
• Bluetooth hands-free calling and audio streaming (external microphone included)

Smartphone features (see Details for info on compatibility with specific smartphones and apps):

• Apple CarPlay compatible (wired and wireless)
• Android Auto compatible (wired and wireless)
• built-in iPod, iPhone, and iPad control
• playback and control of music files on compatible Android devices
• Pandora and Spotify control with iPhone and Android
• full Tidal integration with custom display (requires a wi-fi connection and Tidal smartphone app)

Audio/video features:

• plays MP3, WMA, AAC, APE, and FLAC music files (see Details tab for full capabilities)
• plays AVC, FLV, H,264, MP4, MPEG-4, and MOV video files
• plays lossless FLAC audio files up to 96kHz/24-bit
• 24-bit digital-to-analog converter (DAC)
• 13-band parametric equalizer (Basic and Advanced options)
• 6-channel time correction
• high- and low-pass filters
• Bass Engine SQ
• MediaXpander HD

Expandability:

• works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
• compatible with optional Halo wireless level controller
• compatible with optional 2-camera switcher
• compatible with optional HD dash cam with rear-view camera

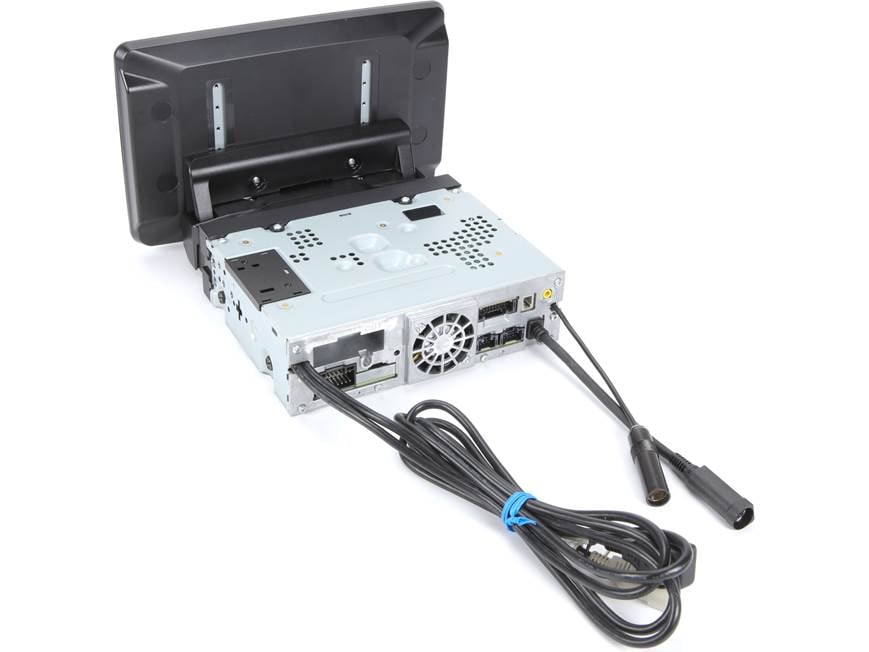

• inputs: 2 rear USB ports; rear HDMI input; rear auxiliary input; 2 proprietary camera inputs (one composite video adapter is included for non-Alpine cameras)
• outputs: HDMI output; 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other information:

• Important Note — Monitor dimensions are 10.585" x 6.995". Before ordering, check for possible interference with your dash.
• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
• built-in internal amp (16 watts RMS CTA-2006/50 peak x 4 channels)
• compatible with most factory steering wheel audio controls (adapter required)
• CTA-2006 compliant
• compatible with iDatalink Maestro
  • retains factory features in a wide selection of vehicles
  • displays engine performance data on touchscreen
• warranty: 1 year

• MFR # ILX-F511
• Item # 500ILXF511

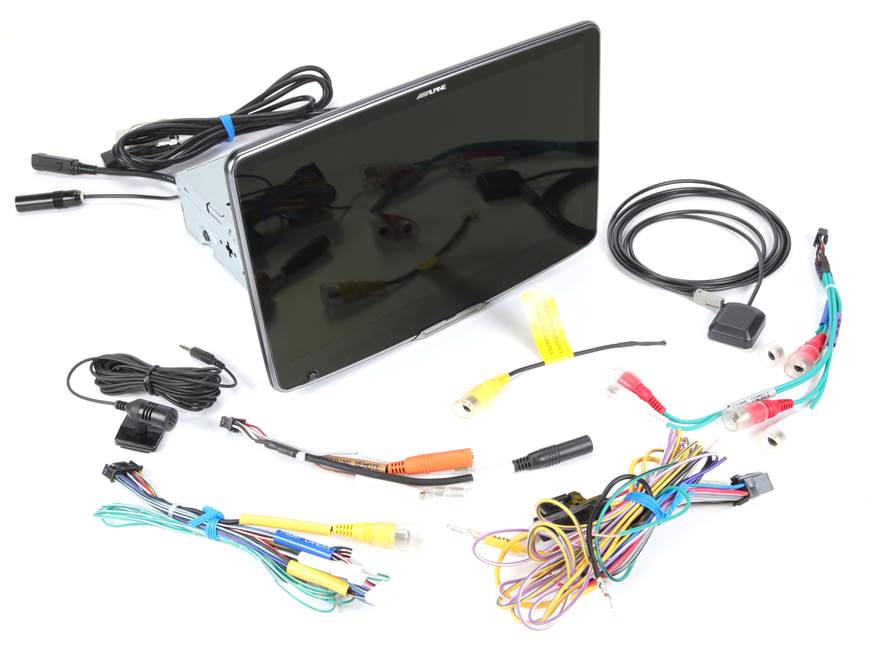

• Alpine Halo11 iLX-F511 owner's manual



• 11" Touchscreen monitor
• Source unit
• Wiring harness (15A fuse)
• Preout harness
• iDatalink/Driver Recorder/Front Camera harness
• Camera input adapter harness
• Mic/SWC harness
• Microphone (w/ attached 12.5' cable terminated by a right-angle stereo-3.5mm connector)
• Surface-mount bracket
• Two-sided tape
• GPS antenna (attached 8' cable with proprietary connector)
• Self-adhesive mounting pad
• 3 Self-adhesive cable clamps
• Power-plate
• 2 Rear covers
• HDMI connector clamp
• 4 Pan-head ISO-screws (M5x8mm)
• 4 Counter-sunk ISO-screws (M5x8mm)
• 3 Display screws (M5x8mm)
• 2 Hinge screws (M3x4mm)
• 2 Rear cover screws (M2.6x6mm)
• 4 Rectangle self-adhesive sheets
• 4 Square self-adhesive sheets
• 2 Round self-adhesive sheets
• 2 Semi-oval self-adhesive sheets
• Quick Reference Guide
• Online Registration Information
• Online Detailed Manual Card
