Product info:
- Featured in our article: Best 5-channel car amplifiers for 2026
- 5-channel car amplifier
- 75 watts RMS x 4 + 350 watts RMS x 1 at 4 ohms
- 100 watts RMS x 4 + 600 watts RMS x 1 at 2 ohms
- 200 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
- CTA-2006 compliant
- Class-D amplifier design
- frequency response of 4-channel section: 10-50,000 Hz (Hi-Res capable)
- variable high- and low-pass filters (40-500 Hz, 12 dB/octave) on 4-channel section
- variable low-pass filter (40-500 Hz, 12 or 24 dB/octave) on sub channel
More Features:
- wired remote controls bass boost (0-18 dB at 50 Hz) for sub channel
- preamp and speaker-level inputs
- gold-plated RCA connections
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- fuse rating: 30A x 3
- dimensions; 12-7/16"W x 2"H x 7-7/8"D
- warranty: 1 year
- MFR # GM-DX975
- Item # 130GMDX975
-
Pioneer GM-DX975 owner's manual

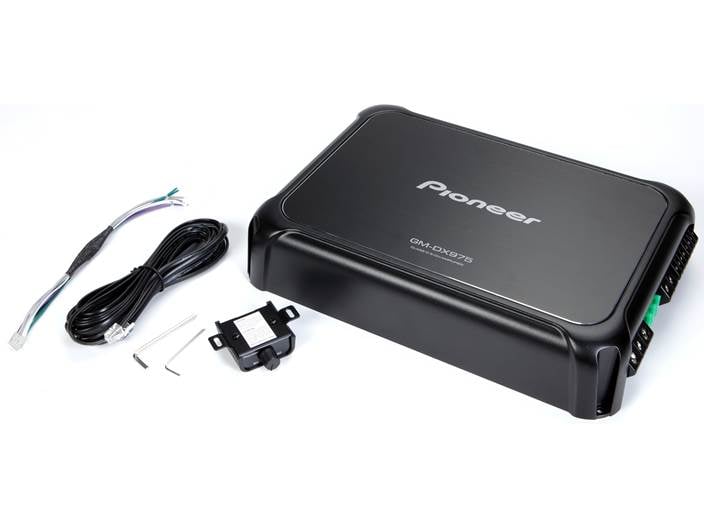

- 5-Channel amplifier
- Three 30-amp ATO fuses (installed)
- 8" Speaker input harness

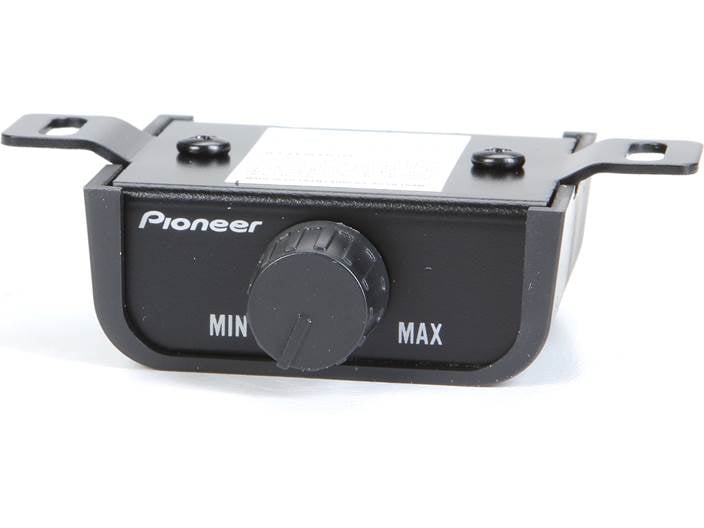

- Wired Bass Boost Remote
- 16' Bass Boost Remote cable (RJ-14 plug on both ends)
- Four 3/4" Screws
- Two 3/8" Screws
- 3mm Allen wrench
- 1.5mm Allen wrench
- Owner's manual (English/ French)
- Owner's manual (Spanish)
- Warranty information
| Performance | ||
|---|---|---|
|
|
75 x 4 600 x 1 |
|
|
|
--- | |
|
|
100 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
200 x 2 | |
|
|
4 | |
|
|
2 | |
|
|
10-50000 Hz | |
|
|
1% | |
|
|
75 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
FD | |
|
|
No | |
|
|
Yes | |
|
|
40-500 Hz | |
|
|
12 dB/octave, 24 dB/octave | |
|
|
40-500 Hz | |
|
|
12 dB/octave | |
|
|
0-18 dB | |
|
|
50 Hz | |
|
|
No | |
|
|
90 | |
|
|
Yes | |
|
|
No | |
|
|
12-1/16 | |
|
|
2-3/8 | |
|
|
8-1/2 | |
|
|
1 Year | |
|
|
1 Year | |
