Product info:
- compact 4-channel powersports/marine amplifier
- 50 watts RMS x 4 at 4 ohms
- 75 watts RMS x 4 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms
- Class D amp technology

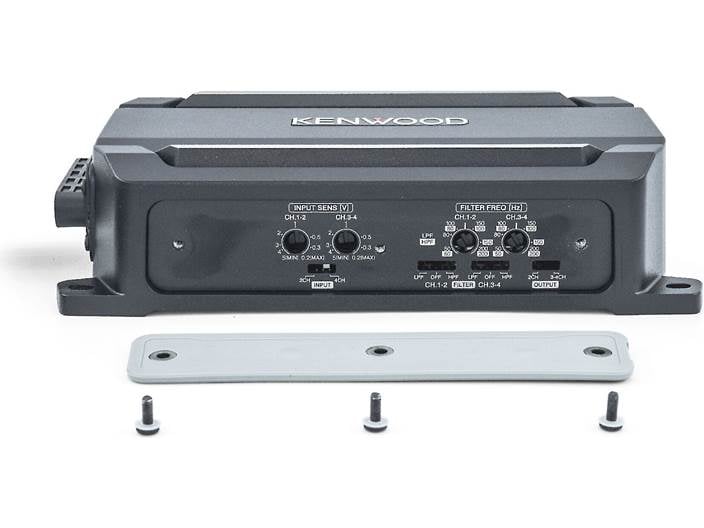

- variable high- and low-pass filters (50-200 Hz, 12 dB/octave)
- conformal-coated circuit boards
More Info:
- preamp and speaker-level inputs
- speaker wire to RCA adapter required for speaker-level input
- signal-sensing turn-on with speaker-level inputs
- wiring and hardware not included with amplifier
- 8-gauge power and ground leads recommended
- fuse rating: 40A x 1
- dimensions: 9-3/4"W (including wiring) x 2"H x 4-3/16"D
- warranty: 1 year
- MFR # KAC-M5014
- Item # 113M5014
-
Kenwood KAC-M5014 owner's manual
- 4-Channel moto-marine amplifier

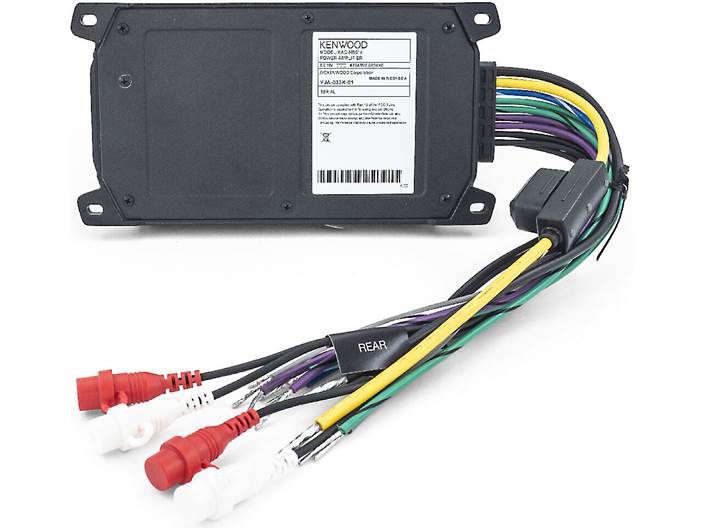

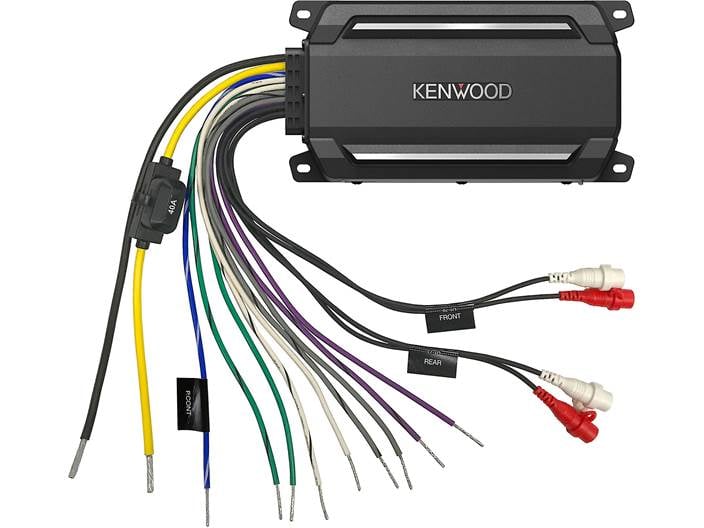

- Power/ground/input-output harness (installed) w/ inline fuse holder
- One 40-amp ATC fuse (installed)
- Four 5/8" screws
- Two 4" wire ties
- Instruction manual
- Warranty information
| Performance | ||
|---|---|---|
|
|
50 x 4 |
|
|
|
150 x 4 | |
|
|
75 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
150 x 2 | |
|
|
4 | |
|
|
2 | |
|
|
10-35k Hz | |
|
|
1% | |
|
|
77 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
No | |
|
|
50-200 Hz | |
|
|
12 dB/octave | |
|
|
50-200 Hz | |
|
|
12 dB/octave | |
|
|
No | |
|
|
N/A | |
|
|
No | |
|
|
40 | |
|
|
Yes | |
|
|
No | |
|
|
9-3/4 | |
|
|
2 | |
|
|
4-3/16 | |
|
|
1 Year | |
|
|
1 Year | |
