Product info:

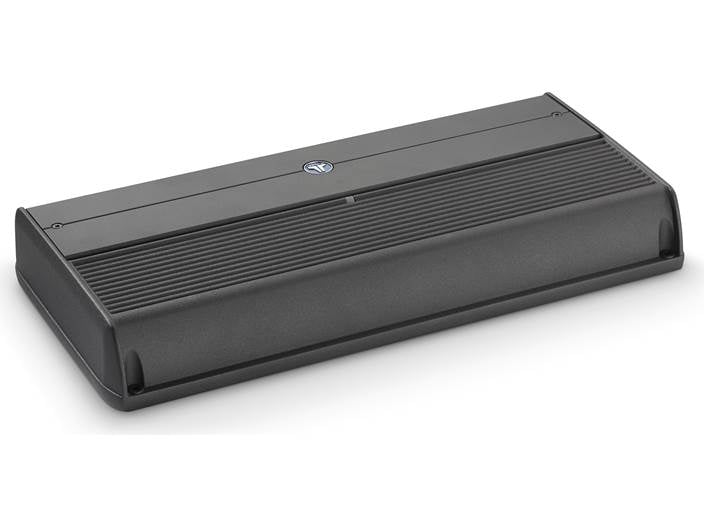

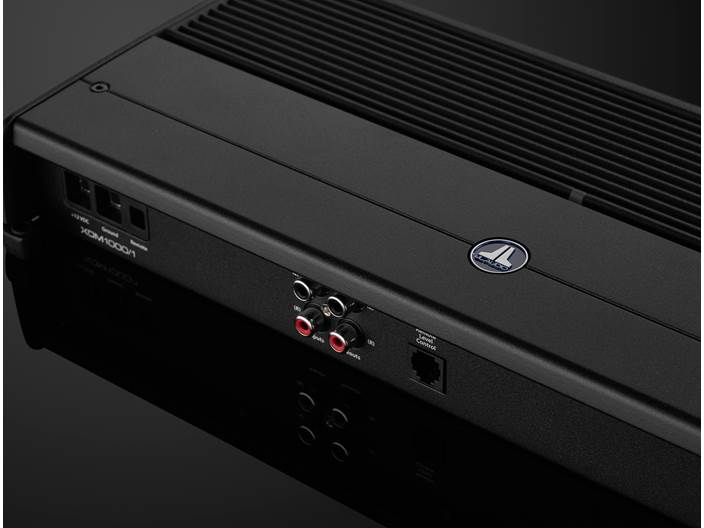

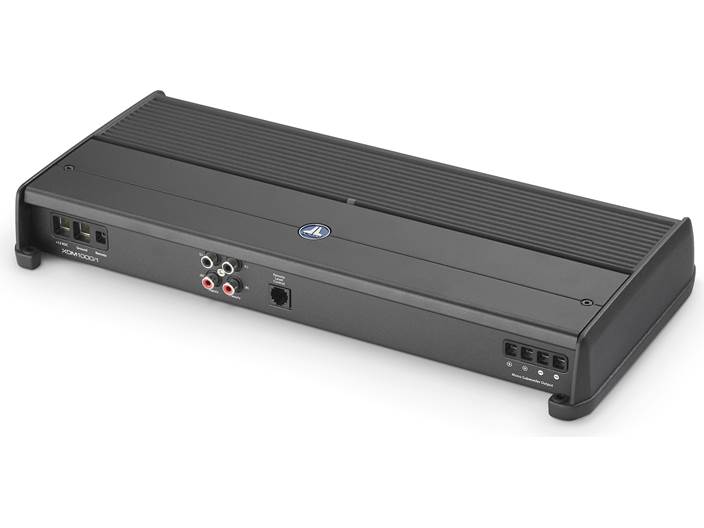

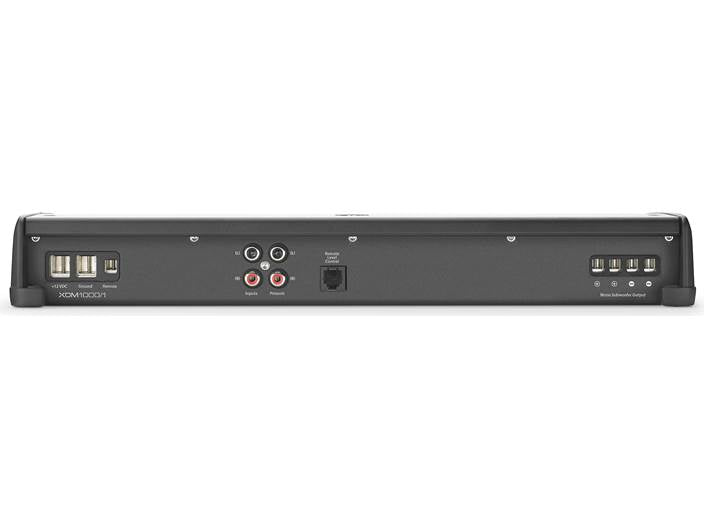

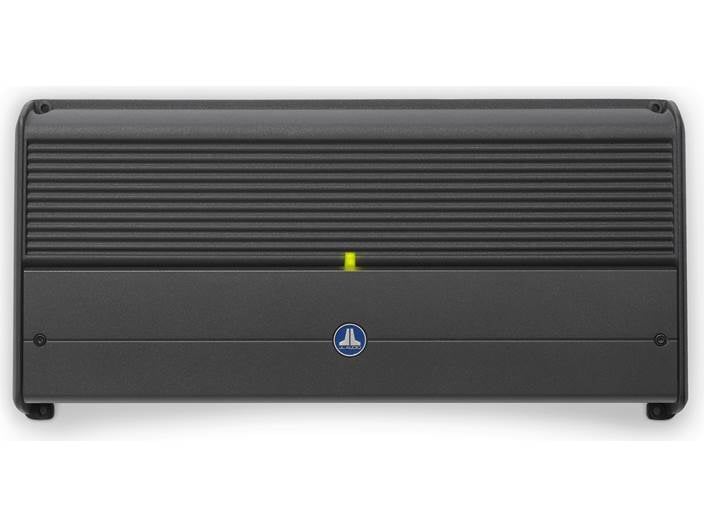

- mono car/marine subwoofer amplifier
- 600 watts RMS x 1 at 4 ohms
- 1000 watts RMS x 1 at 2 ohms
- variable low-pass filter (50-500 Hz, 12 or 24 dB/octave)
- switchable subsonic filter (30 Hz, 24 dB/oct)
- Class D amplifier design with NextD™ switching amp technology
- differential-balanced inputs help eliminate noise
- weather-resistant chassis: black powder-coat finish, gasketed control cover, stainless steel hardware
More info:
- optional wired remote level control available
- preamp and speaker-level inputs
- switchable input filter (car/boat) eliminates interference from onboard high-current devices
- speaker-level inputs handle up to 4Vrms (about 4 watts)
- speaker-level inputs require Wire-to-RCA adapters
- speaker-level inputs feature auto turn-on via DC offset or signal sensing
- preamp outputs
- wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and an 80-amp fuse recommended
- 14-3/4"W x 2"H x 7-1/8"D
- warranty: 2 years
- MFR # 010-03112-00
- Item # 13698677
-

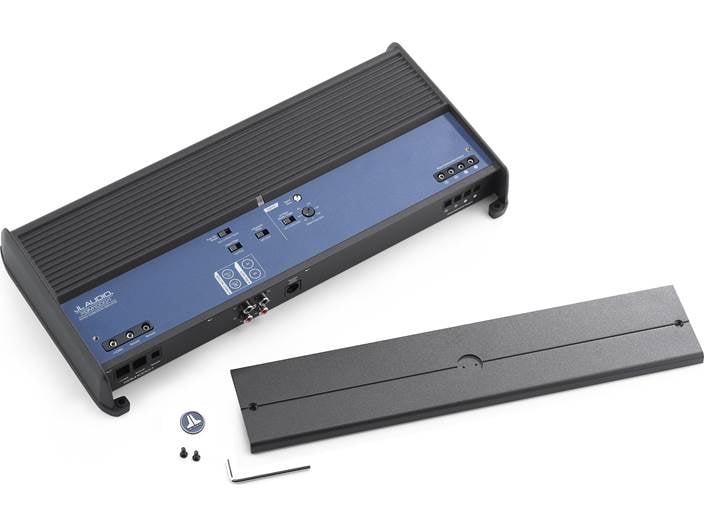

JL Audio XDM1000/1 owner's manual
- Mono car/marine amplifier
- Self-adhesive JL Audio badge
- 2.5mm Allen wrench
- Owner's Manual
- Warranty information
| Performance | ||
|---|---|---|
|
|
600 x 1 |
|
|
|
--- | |
|
|
1000 x 1 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
--- | |
|
|
--- | |
|
|
2 | |
|
|
7-500 Hz Hz | |
|
|
1% | |
|
|
83 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
Optional | |
|
|
50-500 Hz | |
|
|
12 or 24 dB/octave, Off | |
|
|
N/A | |
|
|
N/A | |
|
|
No | |
|
|
N/A | |
|
|
No | |
|
|
80 | |
|
|
Yes | |
|
|
2 | |
|
|
14-3/4 | |
|
|
2 | |
|
|
7-1/8 | |
|
|
2 Years | |
|
|
2 Years | |
