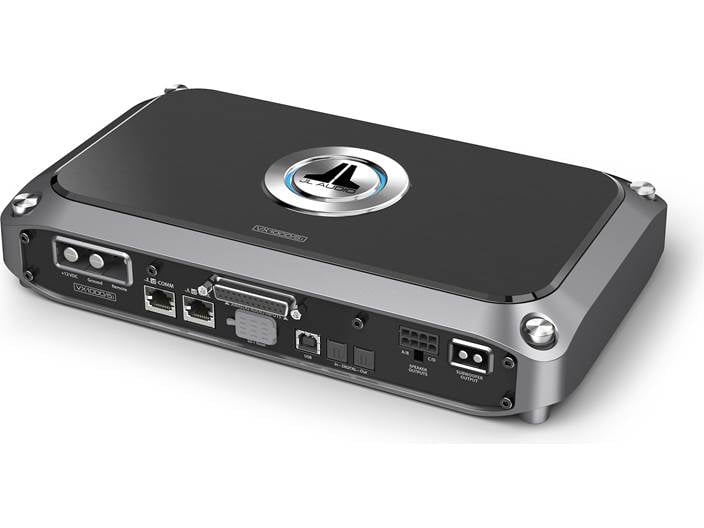

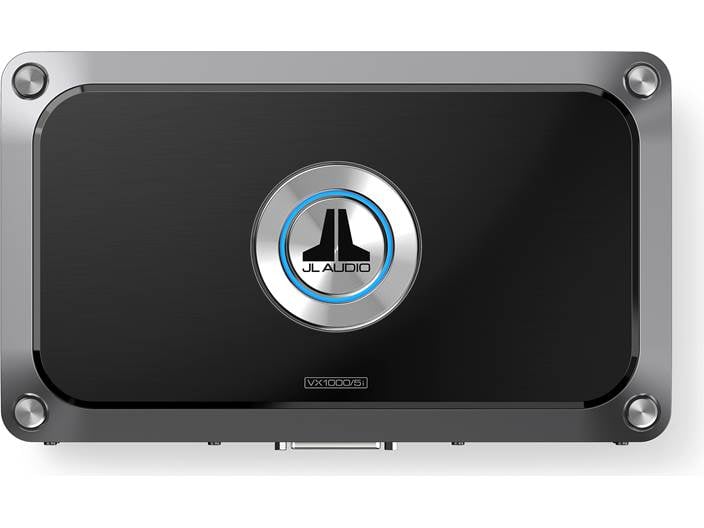

Product info:
- 5-channel car amplifier
- 75 watts RMS x 4 + 400 watts RMS x 1 (at 4 ohms)
- 100 watts RMS x 4 + 600 watts RMS x 1 (at 2 ohms)
- 200 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
- Class D amplifier design with NexD2™ switching amp technology
Digital Signal Processing:
- 24-bit 96 kHz digital processing
- DSP adjustments and settings made with JL Audio's TüN app (PC and Mac) via USB
- input routing and mixing
- adjustable gain controls with clip indication
- fully adjustable high-pass, low-pass, and bandpass filters
- selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
- 10-band EQ
- phase and polarity control
- time alignment in 0.01 ms (1/8") increments

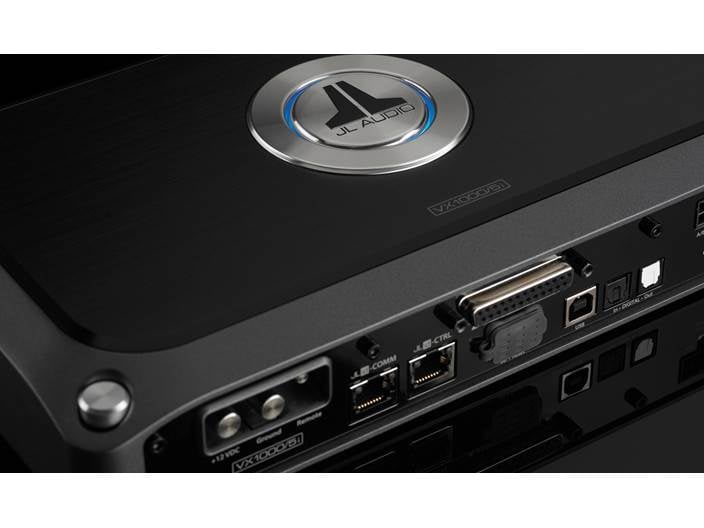

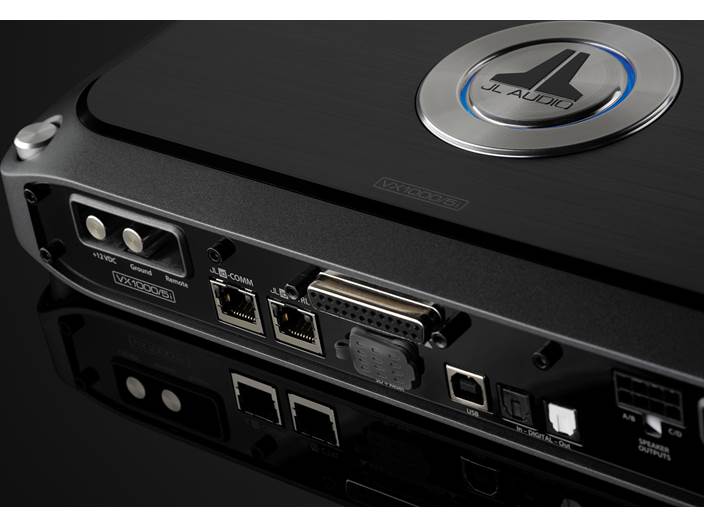

Connection Features
- differential-balanced inputs eliminate noise coming from your vehicle's electrical system
- preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
- high-level inputs — up to 16 volts RMS (about 60 watts)
- DC offset or signal sensing auto turn-on eliminates need for remote lead
- 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
- 2-channel analog preamp output (4V RMS)
- JLid™ connections for optional Network Hub and Digital Remote Control
- USB connection for device running TüN app (6-foot cable included)
- wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and an 80-amp fuse recommended
- 11-5/16"W x 2-1/8"H x 6-11/16"D
- warranty: 2 years
- MFR # 010-03110-00
- Item # 13698632
-
JL Audio VX1000/5i owner's manual
- 5-Channel amplifier
- Power connector
- 14" Analog Input harness (25-pin D-Sub/8 RCA)
- 18" ABCD Speaker output harness
- Subwoofer output connector
- 18" Speaker wire loom
- "Sub" wire label
- 6' USB cable (Type A USB on one end and Type B USB on other end)
- 4 Corner caps
- Corner cap tool
- 2 Silver thumbscrews
- 2 Black hex cap machine screws
- 2.5mm Hex wrench
- 3mm Hex wrench
- JL Audio logo badge
- Connection Guide
- Registration card
| Performance | ||
|---|---|---|
|
|
75 x 4 600 x 1 |
|
|
|
N/A | |
|
|
100 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
200 x 2 | |
|
|
4 | |
|
|
2 | |
|
|
12-24k Hz | |
|
|
1% | |
|
|
80 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
Yes | |
|
|
Via Tun software | |
|
|
Via Tun software | |
|
|
Via Tun software | |
|
|
Via Tun software | |
|
|
Via Tun software | |
|
|
No | |
|
|
N/A | |
|
|
No | |
|
|
80 | |
|
|
Yes | |
|
|
2 | |
|
|
11-5/16 | |
|
|
2-1/8 | |
|
|
6-11/16 | |
|
|
2 Years | |
|
|
2 Years | |
