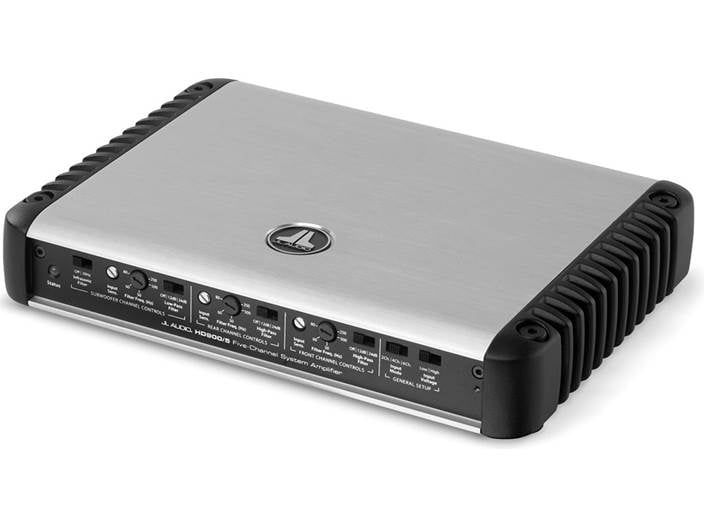

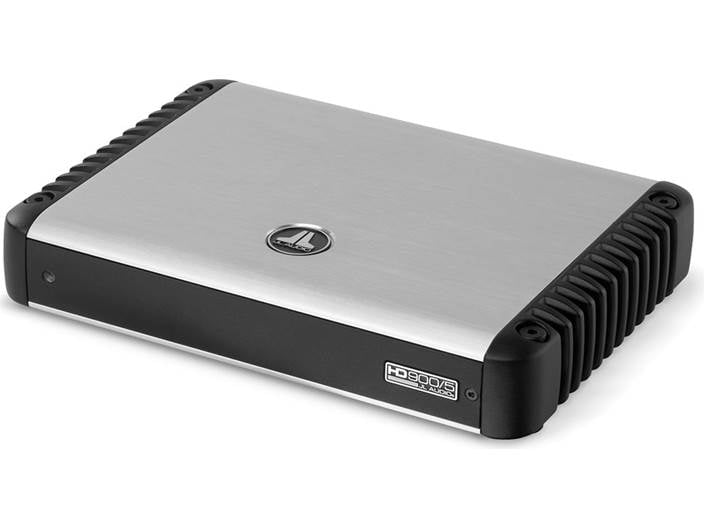

Product info:
- 5-channel amplifer

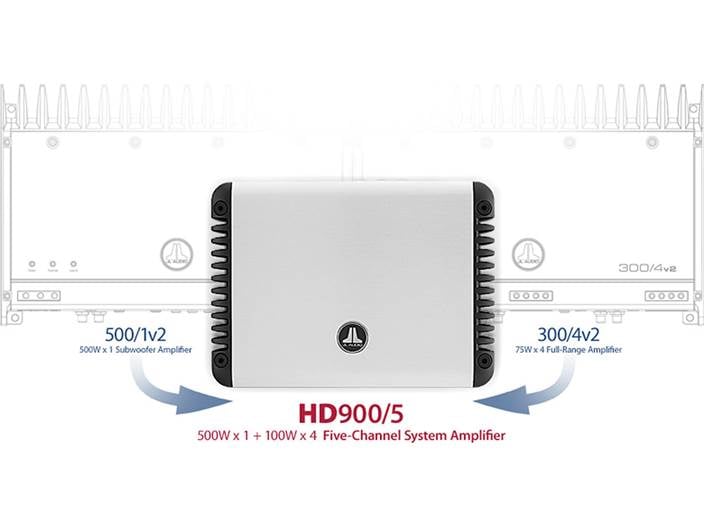

- 100 watts RMS x 4 at 4 ohms + 500 watts RMS x 1 (at 1.5-4 ohms)
- 75 watts RMS x 4 (at 1.5-3 ohms) + 500 watts RMS x 1 (at 1.5-4 ohms)
- 150 watts RMS x 2 bridged (at 3-6 ohms) + 500 watts RMS x 1 at (1.5-4 ohms)

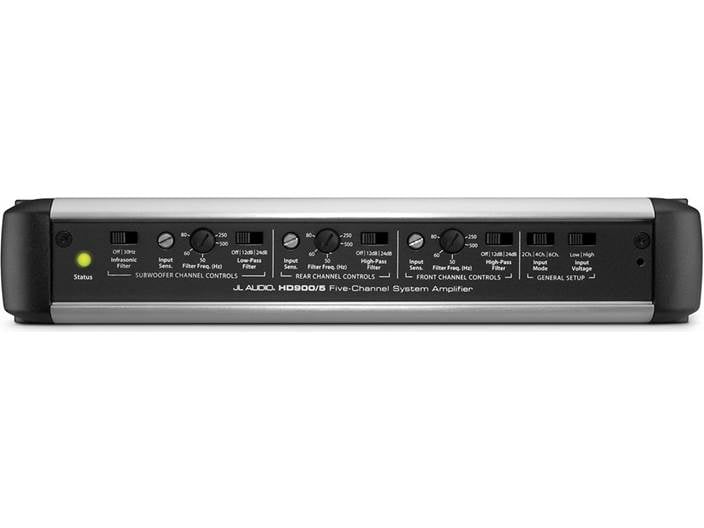

- variable high-pass filter on front and rear channels (50-500 Hz, 12 or 24dB/octave)
- variable low-pass filter on subwoofer channel (50-500 Hz, 12 or 24dB/octave)
- subsonic filter on sub channel (24 dB/oct at 30 Hz)
- removable power and speaker plugs
- optional wired remote for level control
- optional HD stacking kit for stacking multiple HD amps together
- Class D amplifier design
- MOSFET power and output stages
- differential-balanced inputs eliminate noise from your vehicle's electrical system
- speaker- and preamp-level inputs (speaker-level input requires an optional adapter)
- preamp outputs
- 4-gauge power and ground leads and a 60-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 60-amp in-line fuse between the distribution block and the amplifier is recommended
- 10-3/4"W x 1-15/16"H x 8-5/16"D
- warranty: 2 years
- MFR # 010-03169-00
- Item # 136HD9005
-
JL Audio HD Series HD900/5 owner's manual
- 5-Channel class-D full-range amplifier
- Power/Ground/Turn-On plug
- 3 Speaker connection plugs
- 3mm Allen-wrench
- 5mm Allen-wrench
- Mounting bolts
- Owner's Manual
| Performance | ||
|---|---|---|
|
|
100 x 4 500 x 1 |
|
|
|
N/A | |
|
|
75 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
150 x 2 | |
|
|
3 | |
|
|
1.5 | |
|
|
12-28K Hz | |
|
|
0.03% | |
|
|
108 dB | |
|
|
14.5v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
Optional | |
|
|
50-500Hz (ch 5) | |
|
|
12 or 24 dB/oct | |
|
|
50-500Hz (ch 1-4) | |
|
|
12 or 24 dB/oct | |
|
|
No | |
|
|
N/A | |
|
|
No | |
|
|
60 | |
|
|
Yes | |
|
|
No | |
|
|
8-7/8 | |
|
|
2 | |
|
|
10-13/16 | |
|
|
2 Years | |
|
|
2 Years | |
