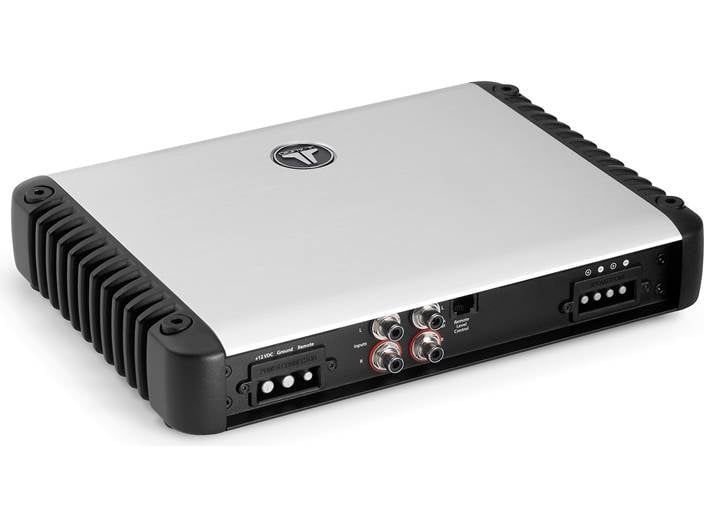

Product info:
- mono subwoofer amplifer
- 750 watts RMS x 1 (rated power from 1.5 to 4 ohms)

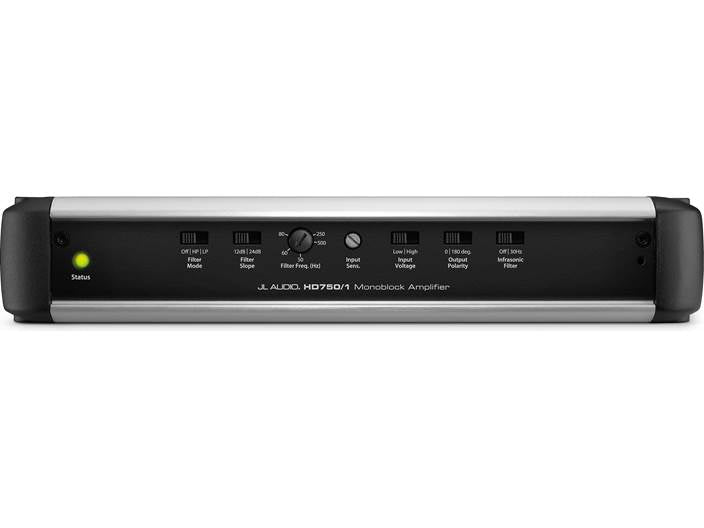

- variable high- and low-pass filter (50-500 Hz 12 or 24dB/octave)
- subsonic filter and output polarity control

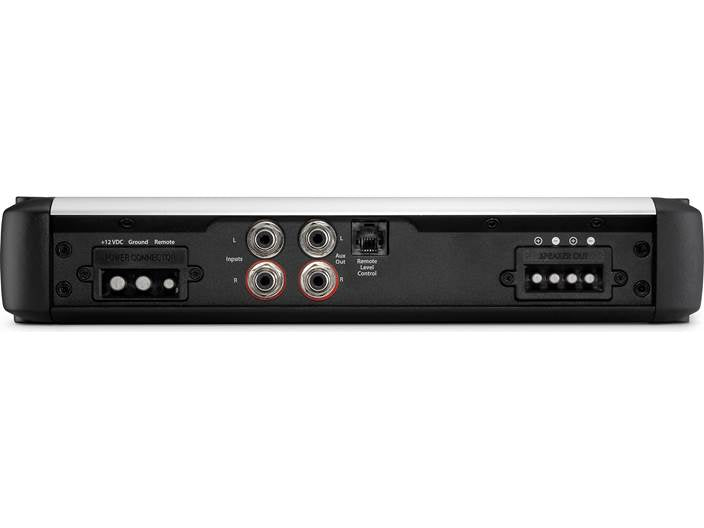

- removable power and speaker plugs
- optional wired remote for level control
- optional HD stacking kit for stacking multiple HD amps together
- Class D amplifier design
- MOSFET power and output stages
- differential-balanced inputs eliminate noise from your vehicle's electrical system
- speaker- and preamp-level inputs (speaker-level input requires an optional adapter)
- preamp outputs
- wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and a 60A fuse recommended
- 10-13/16"W x 1-15/16"H x 8-13/16"D
- warranty: 2 years
- MFR # 010-03168-00
- Item # 136HD7501
-
JL Audio HD Series HD750/1 owner's manual
Monoblock full-range class-D amplifier - Power/Ground/Turn-On plug
- Speaker connection plug
- 4 Mounting brackets
- 2mm Allen-wrench
- 2.5mm Allen-wrench
- 5mm Allen-wrench
- 4 Mounting bolts
- Owner's Manual
| Performance | ||
|---|---|---|
|
|
750 x 1 |
|
|
|
N/A | |
|
|
750 x 1 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
N/A | |
|
|
N/A | |
|
|
1.5 | |
|
|
6-30k Hz | |
|
|
0.03% | |
|
|
110 dB | |
|
|
14.5v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
Optional | |
|
|
50-500 Hz | |
|
|
12/24 dB | |
|
|
50-500 Hz | |
|
|
12/24 dB | |
|
|
No | |
|
|
N/A | |
|
|
No | |
|
|
60 | |
|
|
Yes | |
|
|
2 | |
|
|
10-13/16 | |
|
|
1-15/16 | |
|
|
8-13/16 | |
|
|
2 Years | |
|
|
2 Years | |
