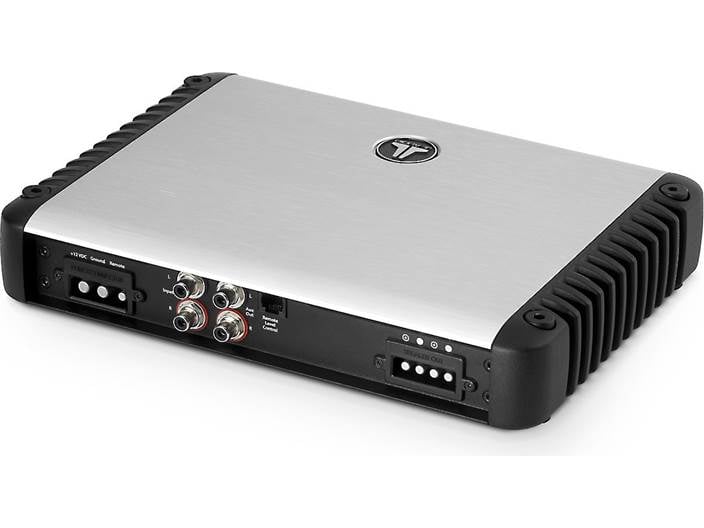

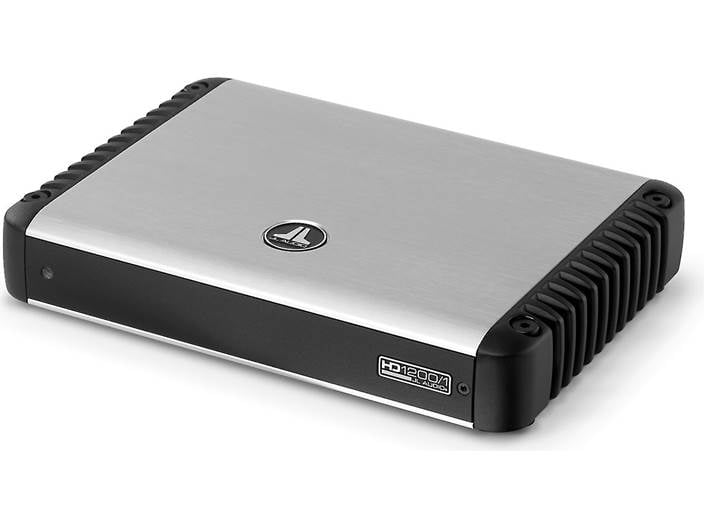

Product info:
- mono 1-channel amplifier
- 1,200 watts RMS x 1 (rated power from 1.5 to 4 ohms)

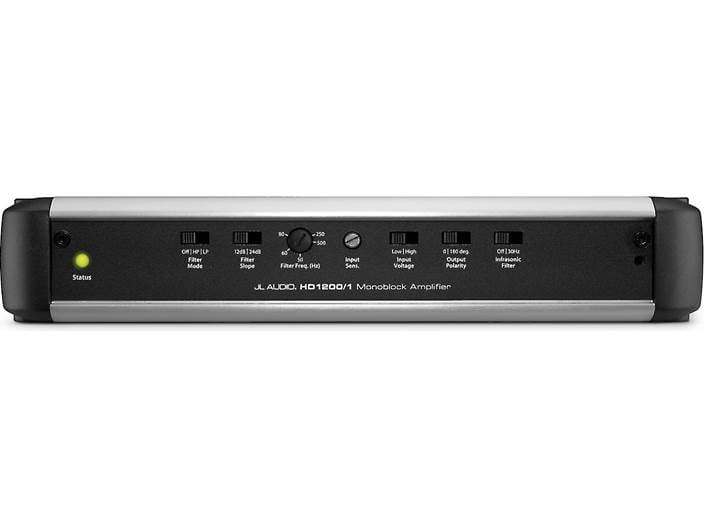

- variable high- and low-pass filter (50-500 Hz 12 or 24dB/octave)
- switchable subsonic filter (30 Hz) and output polarity control

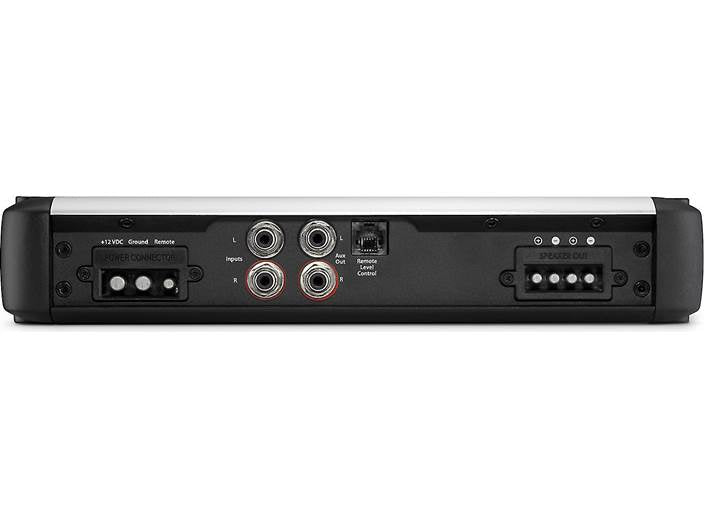

- removable power and speaker plugs
- optional wired remote for level control
- optional HD stacking kit for stacking multiple HD amps together
- Single Cycle Control Class D amplifier design
- Regulated, Intelligent Power Supply System (RIPS) ensures consistent power output over a wide range of battery voltages and load impedances
- differential-balanced inputs eliminate noise from your vehicle's electrical system
- speaker- and preamp-level inputs (speaker-level input requires an optional adapter)
- preamp outputs
- 4-gauge power and ground leads and a 100-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 100-amp in-line fuse between the distribution block and the amplifier is recommended
- 10-13/16"W x 2"H x 8-13/16"D
- warranty: 2 years
- MFR # 010-03170-00
- Item # 136HD1200
-
JL Audio HD Series HD1200/1 owner's manual
- Monoblock Class-D amplifier
- Self-adhesive JL Audio badge
- Power connector plug
- Speaker connector plug
- 4 Mounting feet
- 4 Bolts for mounting feet (M4 x 40mm)
- 4mm Allen wrench
- 2.5mm Allen wrench
- Owner's Manual
- Power wire note
| Performance | ||
|---|---|---|
|
|
1200 x 1 |
|
|
|
N/A | |
|
|
1200 x 1 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
N/A | |
|
|
N/A | |
|
|
1.5 | |
|
|
6-8k Hz | |
|
|
0.03% | |
|
|
110 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
Optional | |
|
|
50-500 Hz | |
|
|
12 or 24 dB/oct | |
|
|
50-500 Hz | |
|
|
12 or 24 dB/oct | |
|
|
No | |
|
|
N/A | |
|
|
No | |
|
|
100 | |
|
|
Yes | |
|
|
2 | |
|
|
10-13/16 | |
|
|
2 | |
|
|
8-13/16 | |
|
|
2 Years | |
|
|
2 Years | |
