Product info:
- 5-channel car amplifier
- 90 watts RMS x 4 + 400 watts RMS x 1 at 4 ohms
- 125 watts RMS x 4 + 600 watts RMS x 1 at 2 ohms
- 250 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
- Class D amp technology
- Ch 1-4:
- variable high- and low-pass crossover filters: 50-5000 Hz, 12 dB/octave
- Subwoofer channel:
- variable low-pass crossover filter: 60-120 Hz, 12 dB/octave
- variable subsonic filter: 0-50 Hz, 24 dB/octave
- ParaBASS® variable bass boost: 0-10 dB at 40-80 Hz
- optional wired remote bass level controller available
More info:
- compatible with start-stop vehicle systems (up to 17V)
- Valet Mode limits output to 25% maximum
- connection only — on/off switch not included
- gain level optimization and clip indicator LEDs
- preamp and speaker-level inputs
- speaker-level inputs handle up to 20V (100W)
- signal-sensing turn-on with speaker-level input
- wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and a 120-amp fuse recommended
- dimensions: 13.88"W x 2.11"H x 6.73"D
- warranty: 5 years
- MFR # A1100.5
- Item # 161A11005
-
AudioControl A1100.5 owner's manual

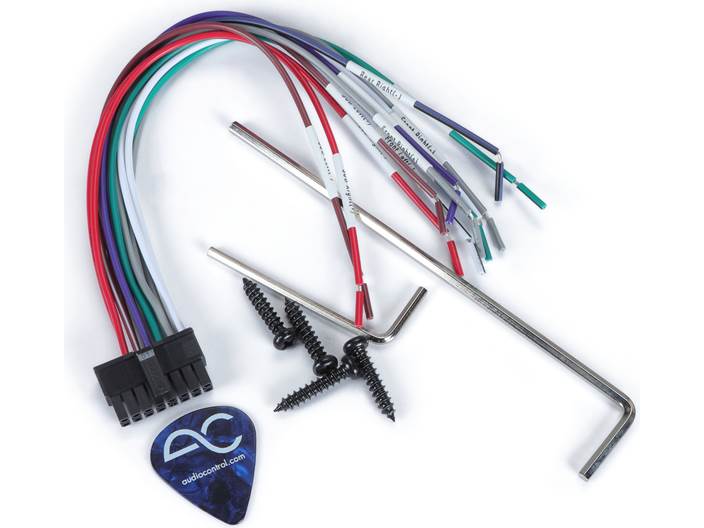

- 5-Channel amplifier
- 8" Speaker-level input harness
- Two Allen keys (3mm & 2.5mm)
- Four 3/4" screws
- Quickstart guide
| Performance | ||
|---|---|---|
|
|
90 x 4 600 x 1 |
|
|
|
--- | |
|
|
125 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
250 x 2 | |
|
|
4 | |
|
|
2 | |
|
|
--- | |
|
|
--- | |
|
|
95 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
Optional | |
|
|
60-120 Hz | |
|
|
12 dB/octave | |
|
|
50-5000 Hz | |
|
|
12 dB/octave | |
|
|
0-10 dB | |
|
|
40-80 Hz | |
|
|
No | |
|
|
120 | |
|
|
Yes | |
|
|
No | |
|
|
13-15/16 | |
|
|
2-1/8 | |
|
|
6-3/4 | |
|
|
5 Years | |
|
|
5 Years | |
