Product info:
- 4-channel car amplifier
- 100 watts RMS x 4 at 4 ohms
- 150 watts RMS x 4 at 2 ohms
- 300 watts RMS x 2 bridged at 4 ohms
- CTA-2006 compliant
- Class-D amplifier design
- frequency response: (+0/-3 dB) 15 to 45,000 Hz (Hi-Res capable)

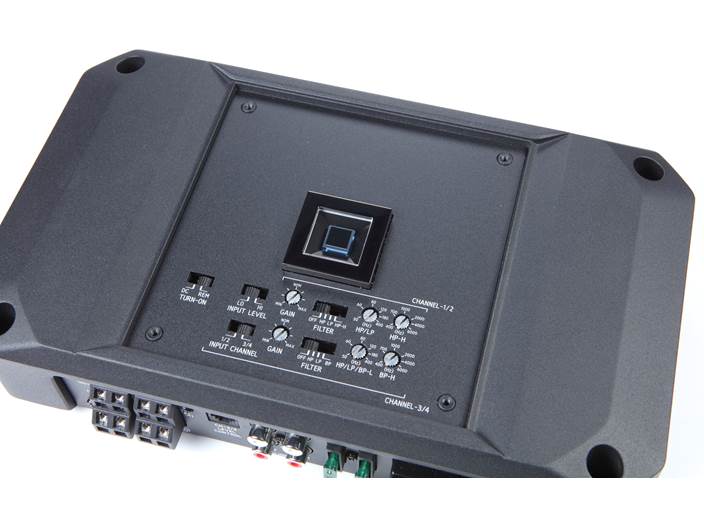

- variable high-pass, low-pass, and bandpass filters on front and rear channels
- optional RUX-KNOB.2 wired remote available for rear channels
More Features:
- handles preamp and speaker-level input
- speaker-level inputs require RCA adapters
- speaker-level inputs handle up to 10V
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- fuse rating: 30A x 2
- dimensions: 11.12"W x 2.14"H x 6.92"D
- warranty: 1 year
-
- 4-Channel amplifier (2 installed 30A ATO fuses)
- Four 1" pan-head screws
- 3mm Allen key
- 2.5mm Allen key
- 2mm Allen key
- Owner's manual (En/ Sp/ Fr/Others)
- Alpine Verification Certificate
- Warranty information
- Power supply note
- On-line product registration information
| Performance | ||
|---|---|---|
|
|
100 x 4 |
|
|
|
--- | |
|
|
150 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
|
|
300 x 2 | |
|
|
4 | |
|
|
2 | |
|
|
10Hz-45k Hz | |
|
|
1% | |
|
|
80 dB | |
|
|
14.4v | |
| Features | ||
|---|---|---|
|
|
D | |
|
|
No | |
|
|
Optional | |
|
|
50-400 Hz | |
|
|
12 dB/octave | |
|
|
50-6000 Hz | |
|
|
12 dB/octave | |
|
|
No | |
|
|
N/A | |
|
|
No | |
|
|
60 | |
|
|
Yes | |
|
|
No | |
|
|
11-1/8 | |
|
|
2-3/16 | |
|
|
6-15/16 | |
|
|
1 Year | |
