Kenwood Excelon KFC-XP6902C Excelon Series 6"x9" component speaker system designed for select Chevrolet, Dodge, GMC, and Toyota vehicles
Product info:
- component speaker system includes 2 woofers and 2 tweeters

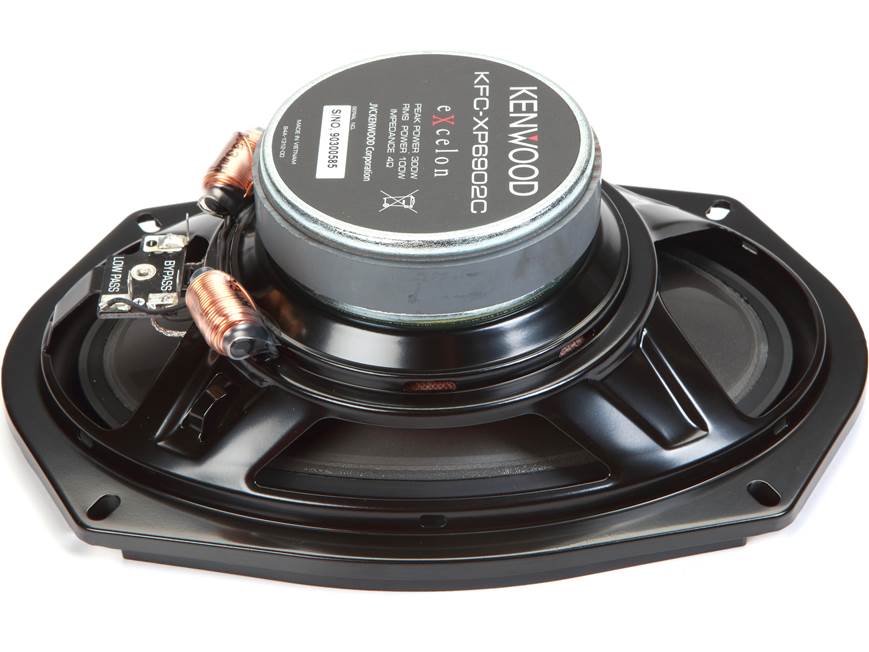

- 6"x9" polypropylene woofer cone

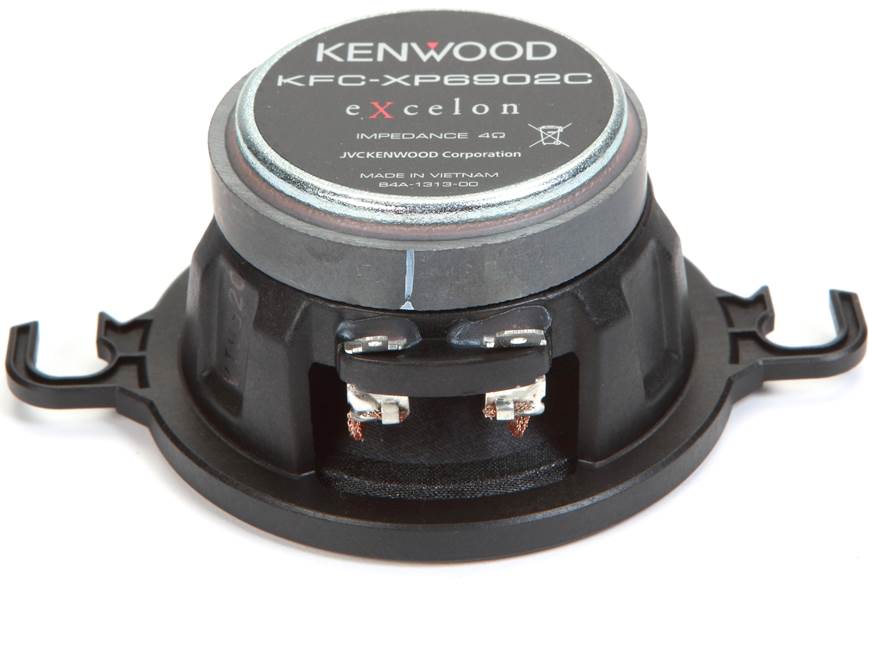

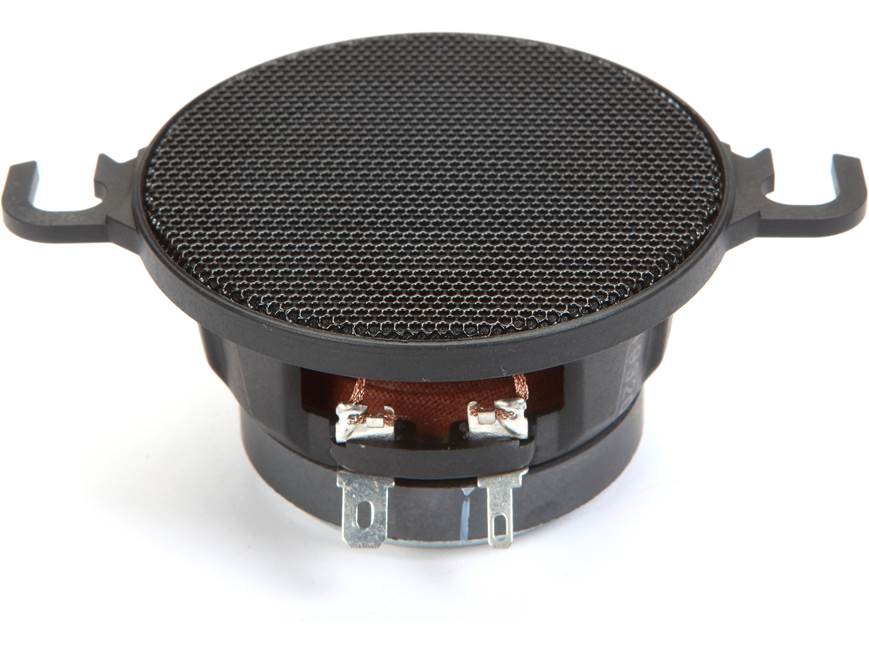

- 2-3/4" mid/high speaker with acrylic carbon hybrid cone
- handles up to 100 watts RMS (300 watts peak power)
- frequency response: 45-20,000 Hz
- woofer top-mount depth: 2-13/16"
- 2-3/4" speaker mounting depth: 1-5/16"
- sensitivity: 84 dB
- impedance: 4 ohms
- warranty: 2 years
- MFR # KFC-XP6902C
- Item # 113XP6902C
Kenwood Excelon KFC-XP6902C owner's manual

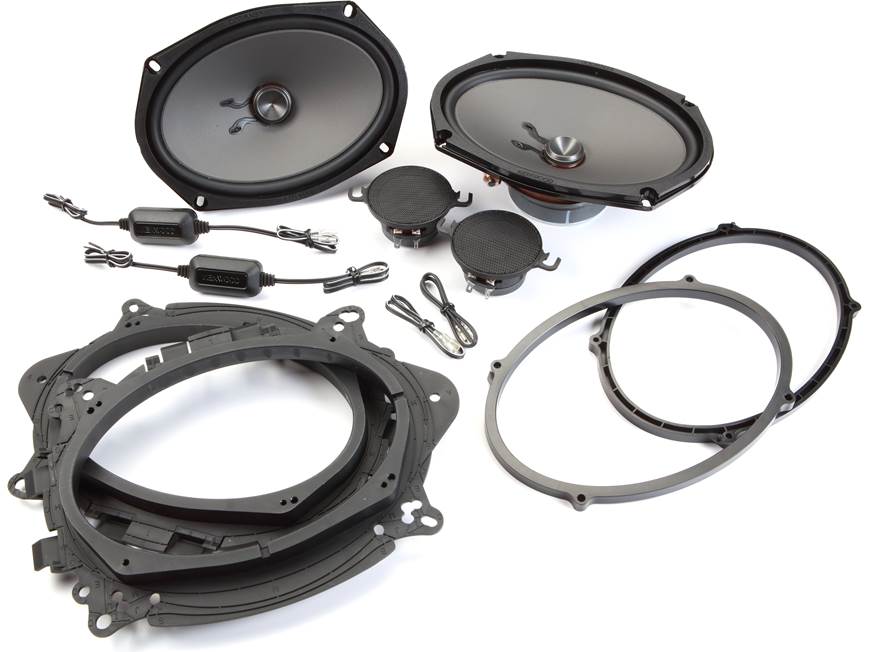

What's in the box:
- Two 6x9 Woofers
- Two 2-3/4 Speakers
- 2 Woofer spacers

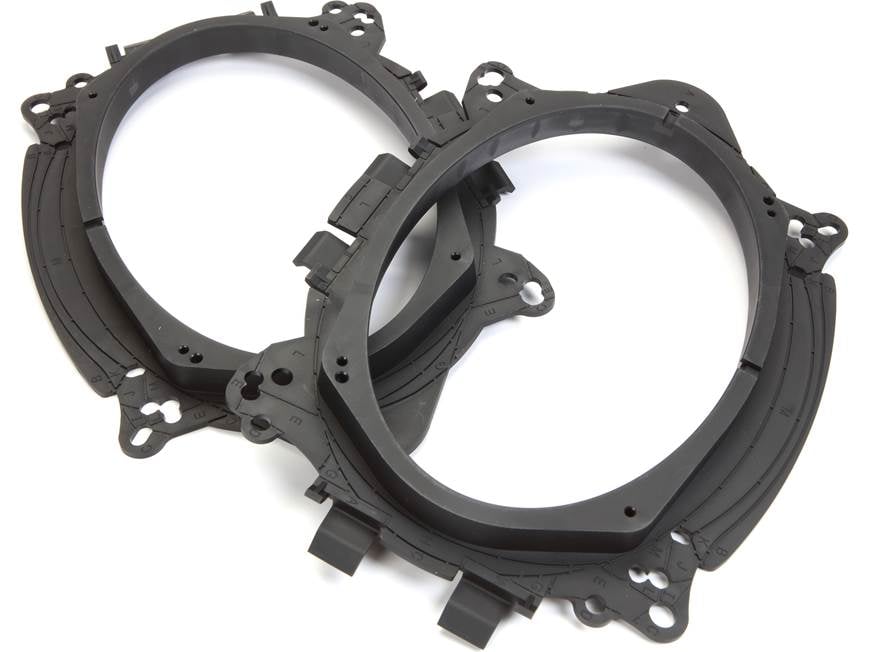

- Two 6x9 Multi-purpose adapter brackets (include GM and Toyota applications)
- Two 28" Lengths of midrange wire with in-line crossovers (each has bare wire on the input end and female quick-slides on the output end)
- Two 12" Lengths of woofer wire (each has female quick-slides on one end and bare wire on the other)
- Eight 5/8" Screws
- Eight 1" Screws
- Adhesive backed foam gaskets
- Installation instructions (English/ French/ Spanish)
- Specifications printed on box
| General | ||
|---|---|---|
|
|
Vehicle-specific | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Polypropylene | |
|
|
Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
|
|
Cone | |
| Tweeter Material | Acrylic Carbon Hybrid | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
|
|
4 | |
| Weather-resistant | No | |
| Grilles Included | Black steel mesh fixed on midrange | |
|
|
2 Years | |
|
|
2 Years | |
| Specifications | ||
|---|---|---|
| Sensitivity (1W at 1 meter) | 84 | |
| Sensitivity at 2.83 volts | N/A | |
|
|
45 - 20k Hz | |
| Maximum RMS Wattage | 100 | |
|
|
300 | |
|
|
1 5/8 | |
|
|
3 1/4 | |
|
|
0 | |
|
|
0.478 | |
|
|
6.488 | |
|
|
9.296 | |
