Product info:
- component speaker system includes two 6-1/2" woofers, 2 tweeters, and 2 external crossovers
- 6-1/2" injection-molded mineral-filled polypropylene woofer cone with rubber surround
- separate 1" edge-driven silk dome tweeter
- 2-way external crossover with 4-position tweeter level
- handles up to 100 watts RMS (150 watts peak power)
- frequency response: 53-21,000 Hz
- sensitivity: 87.37 dB
- woofer top-mount depth: 2.6"
- includes flush- and surface-mount tweeter hardware
- woofer and tweeter grilles included
- warranty: 1 year
- MFR # 010-03391-00
- Item # 13699133
JL Audio C6-650 owner's manual

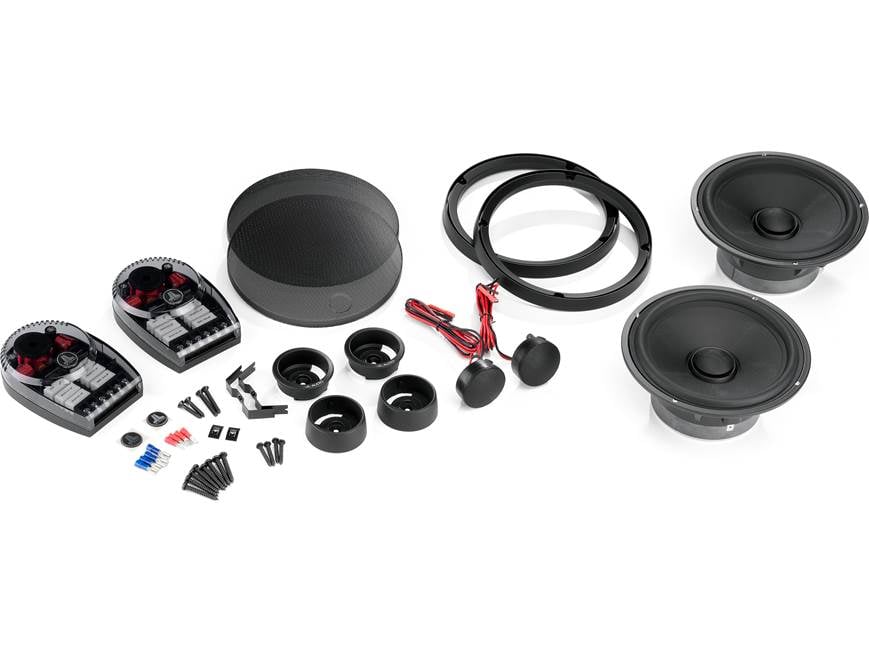

What's in the box:
- Two C6-650cw Woofers
- Two C6-100ct Tweeters (36" wires attached)

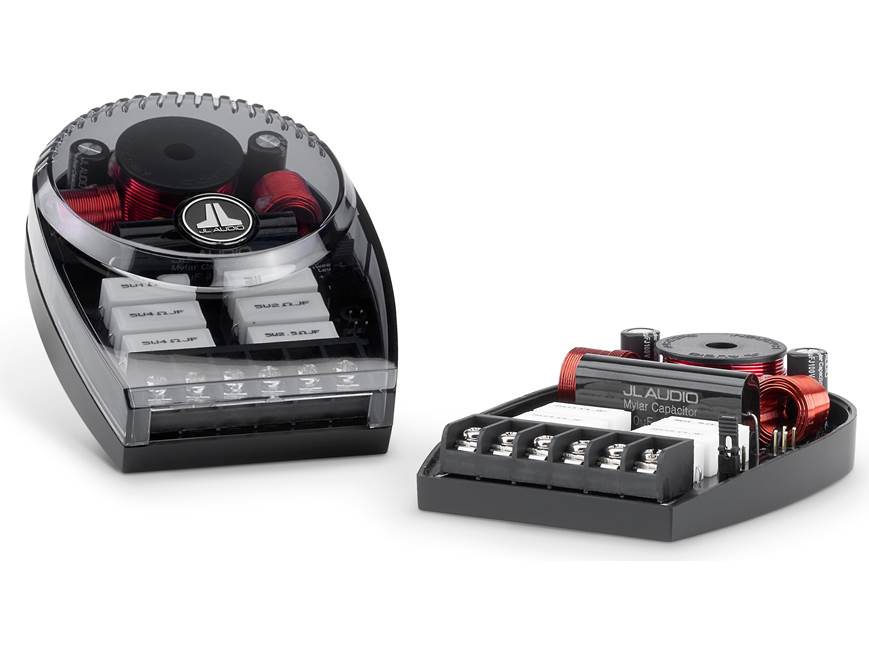

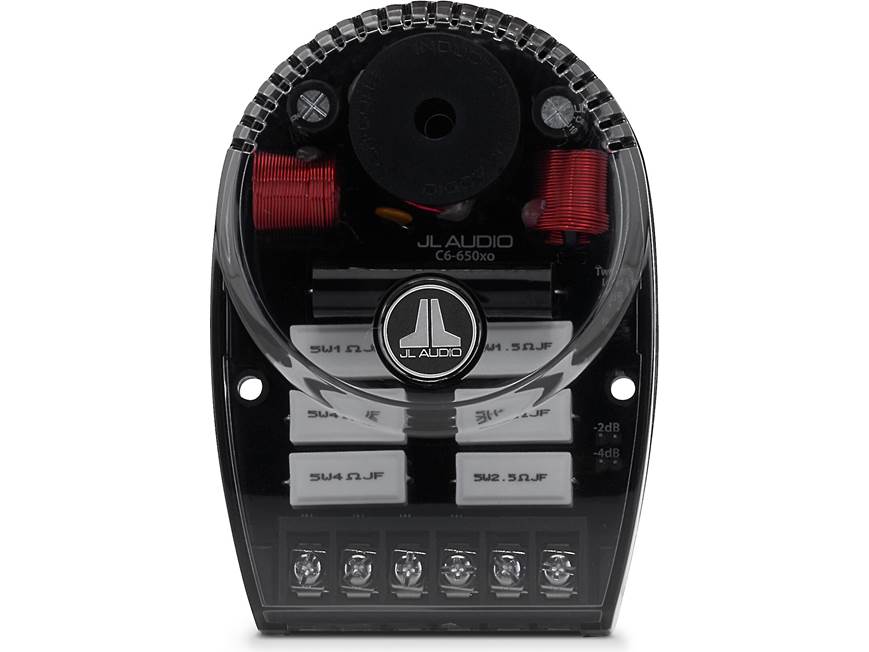

- Two C6-650-xo Crossovers
- 2 Woofer grille frames
- 2 Woofer grilles
- 2 Flush-mount tweeter housings
- 2 Surface-mount tweeter housings
- 2 Metal spring clips for flush-mount tweeter housings
- 2 Speed clips
- Two M4x30mm Machine screws
- Two 1" Flat-head screws
- Four 1" Pan-head screws
- Eight 1-1/4" Pan-head screws
- 2 Self-adhesive JL Audio badges
- 2 Crimp-on 0.187" male quick slides
- 2 Crimp-on 0.110" male quick slides
- 2 Crimp-on 0.187" female quick slides
- 2 Crimp-on 0.25" female quick slides
- Owner's Manual
| General | ||
|---|---|---|
|
|
6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Mineral-Filled Polypropylene | |
|
|
Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
|
|
1" Edge-Driven Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
|
|
4 | |
| Weather-resistant | No | |
| Grilles Included | Black, Steel mesh, Plastic mounting ring | |
|
|
1 Year | |
|
|
1 Year | |
| Specifications | ||
|---|---|---|
| Sensitivity (1W at 1 meter) | 87.37 | |
| Sensitivity at 2.83 volts | N/A | |
|
|
53 - 21k Hz | |
| Maximum RMS Wattage | 100 | |
|
|
--- | |
|
|
2 11/16 | |
|
|
2 13/16 | |
|
|
5 9/16 | |
|
|
0.363 | |
|
|
6.494 | |
|
|
6.494 | |
