Product info:

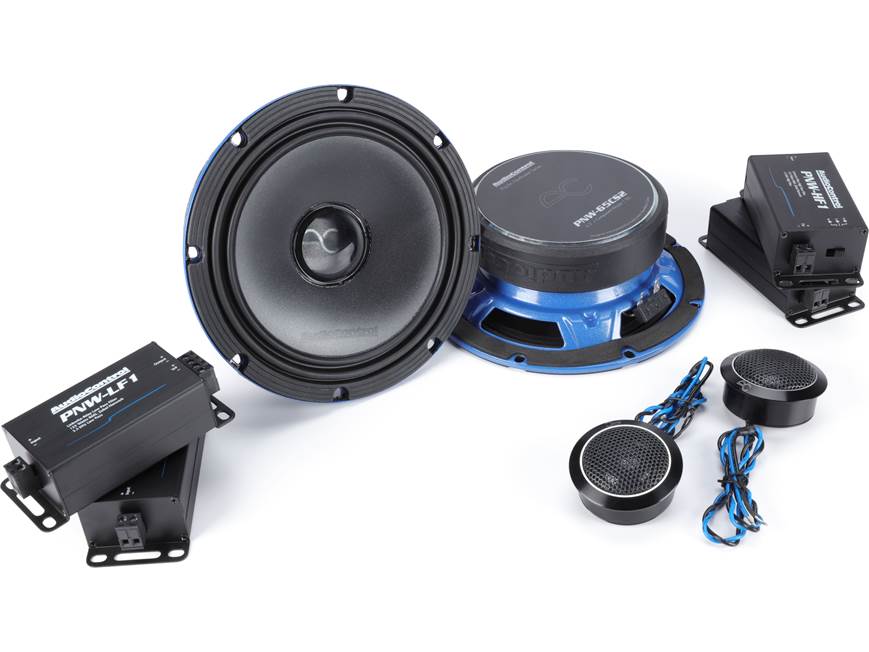

- component speaker system includes 2 woofers, 2 tweeters, 2 external crossovers, and 2 grilles

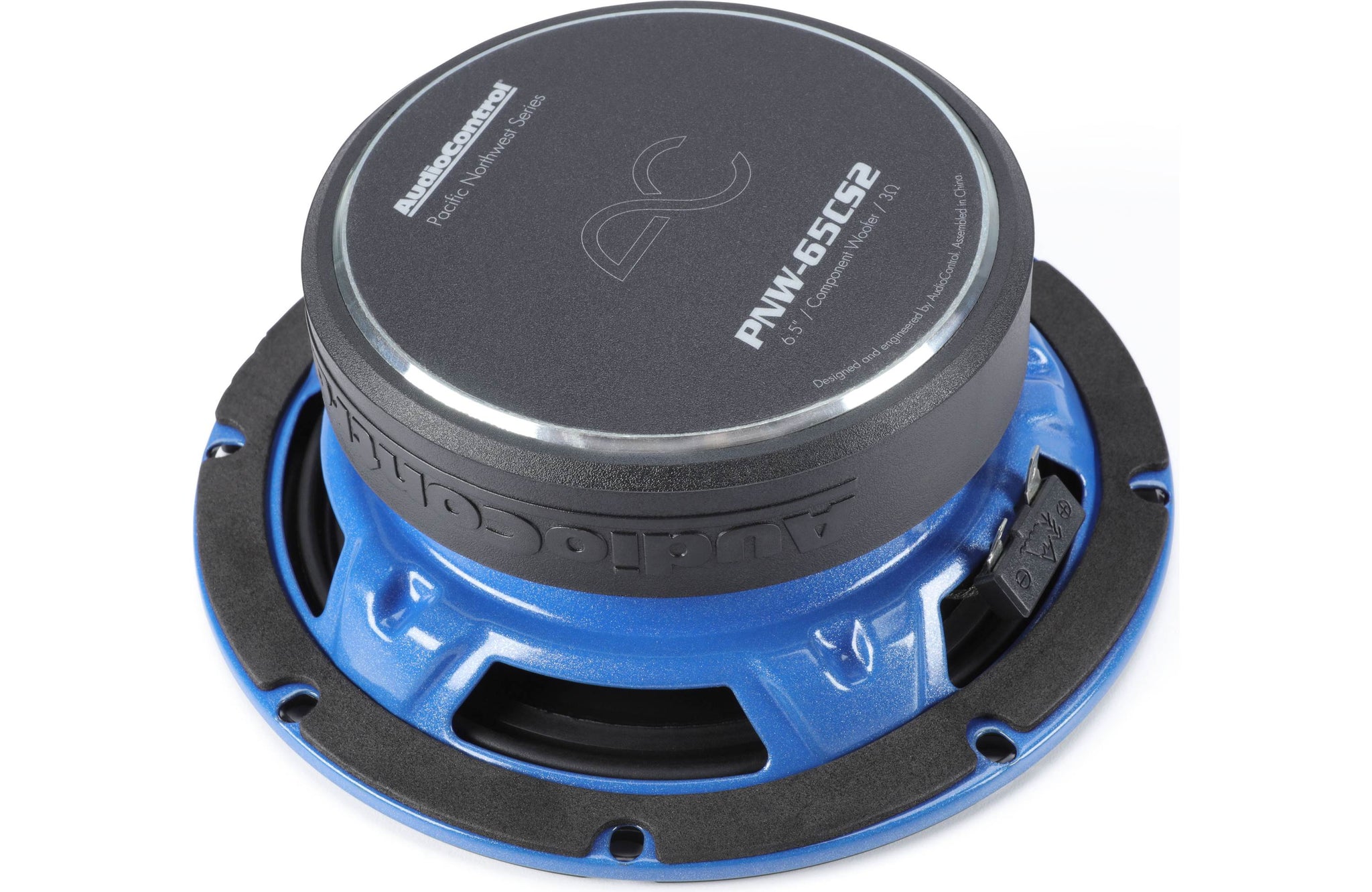

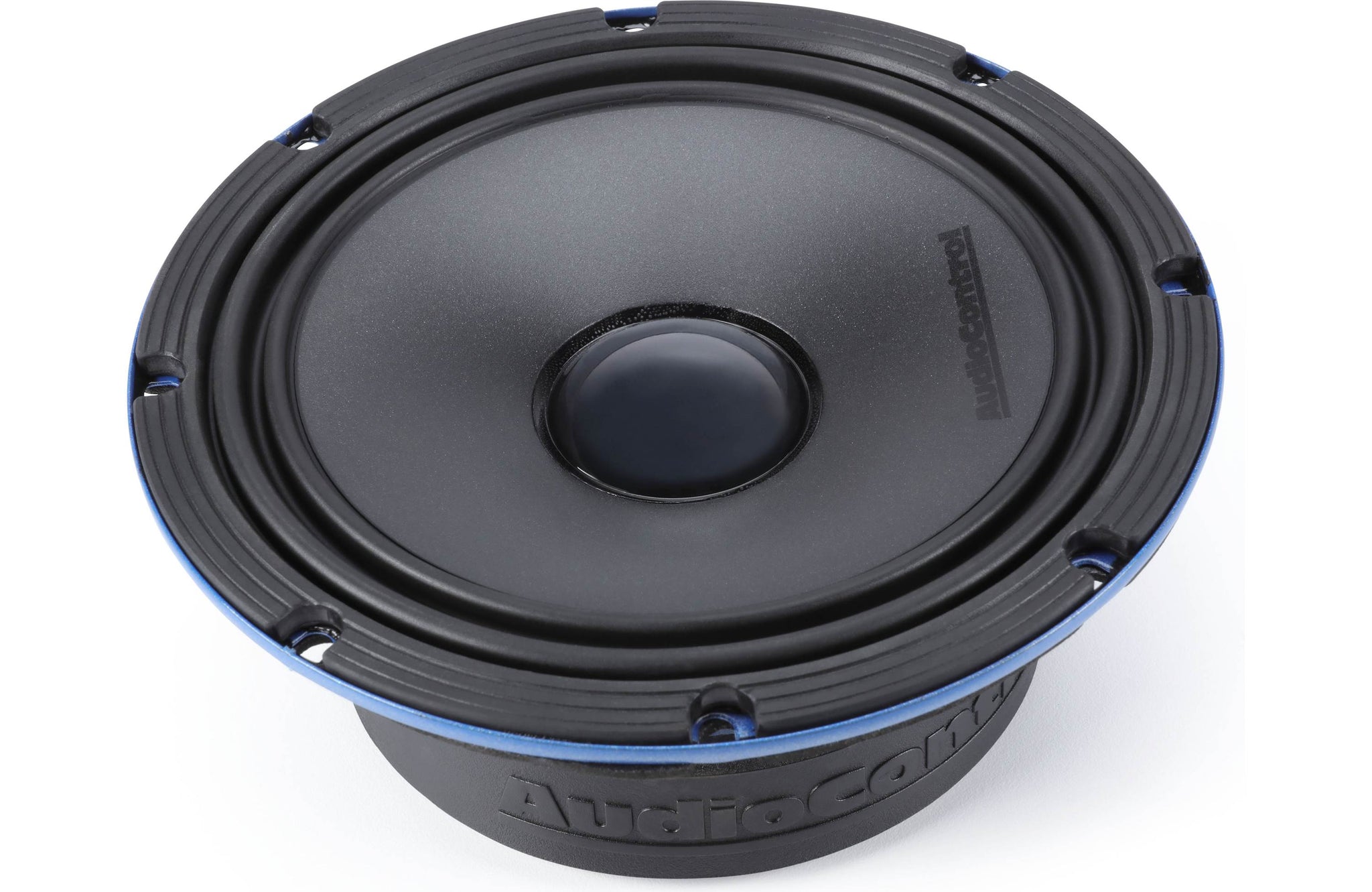

- 6-1/2" poly mica-coated woofer cone with double-roll surround

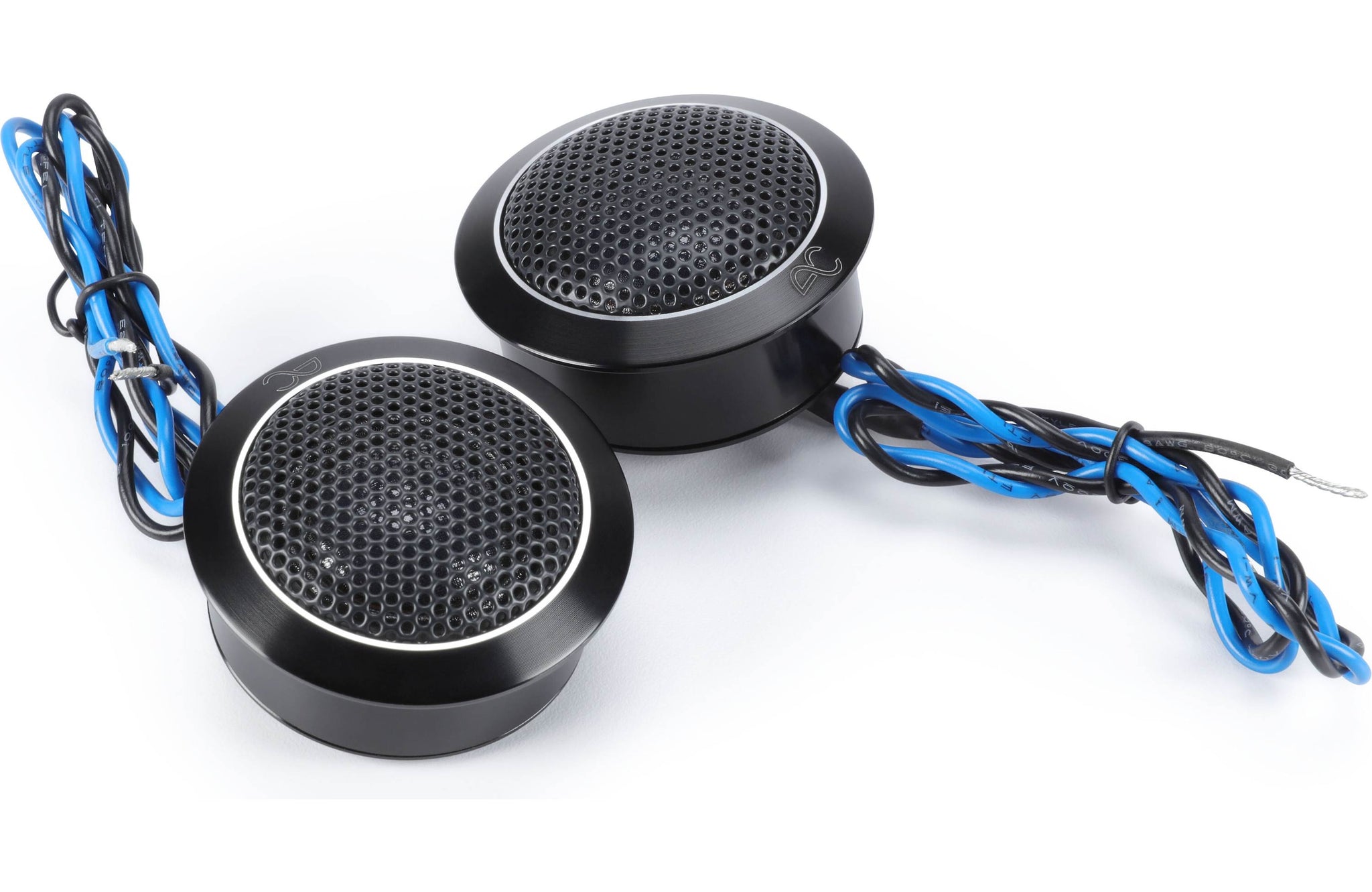

- separate 3/4" silk dome tweeter
- 2-way crossover network (3500 Hz at 12dB/octave)
- grilles and tweeter mounting hardware included
Specs:
- handles up to 100 watts RMS (125 watts peak power)
- frequency response: 60-20,000 Hz
- impedance: 3 ohms
- sensitivity: 88.8 dB
- woofer top-mount depth: 2.36"
- grilles and tweeter mounting hardware included
- warranty: 1 year
- MFR # PNW-65CS2
- Item # 161PNW65CS
AudioControl PNW-65CS2 owner's manual
What's in the box:
- Two woofers
- Two woofer grilles
- Two PNW-1 Tweeters (16" speaker wire attached)
- 2 Flush mount tweeter housings (tweeters installed)
- 2 PNW-HF1 High pass crossover networks
- 2 PNW-LF1 Low pass crossover networks
- 4 Heat shrink crossover covers
- 2 U-Brackets
- Two M4x8mm Machine screws (2.5mm Allen head)
- Sixteen 1-1/8" Screws (2.5mm Allen head)
- 16 Speed clips
- User guide
- Template
| General | ||
|---|---|---|
|
|
6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Poly Mica-Coated Paper | |
|
|
Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
|
|
Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
|
|
3 | |
| Weather-resistant | No | |
| Grilles Included | Black, Steel mesh, Plastic frame | |
|
|
2 Years | |
|
|
2 Years | |
| Specifications | ||
|---|---|---|
| Sensitivity (1W at 1 meter) | 88.8 | |
| Sensitivity at 2.83 volts | N/A | |
|
|
60 - 20k Hz | |
| Maximum RMS Wattage | 100 | |
|
|
125 | |
|
|
2 3/8 | |
|
|
2 5/8 | |
|
|
5 5/8 | |
|
|
0.28 | |
|
|
6.565 | |
|
|
6.565 | |
