Product info:

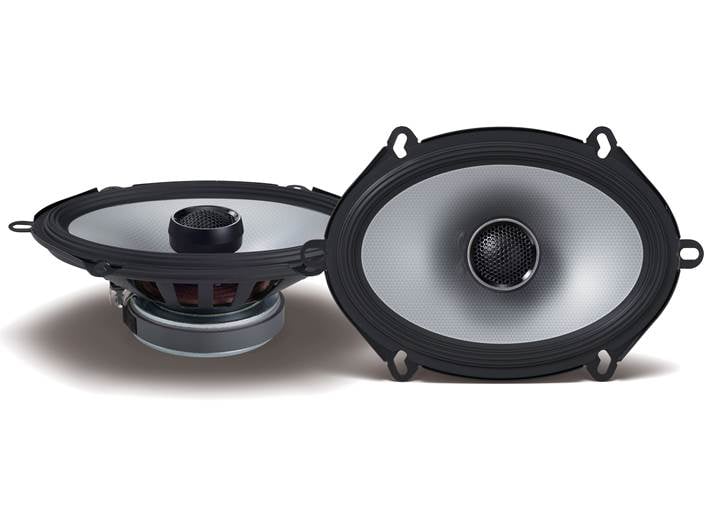

- 6"x8" 2-way speakers
- polypropylene/glass fiber/mica woofer cone with specialized rubber surround

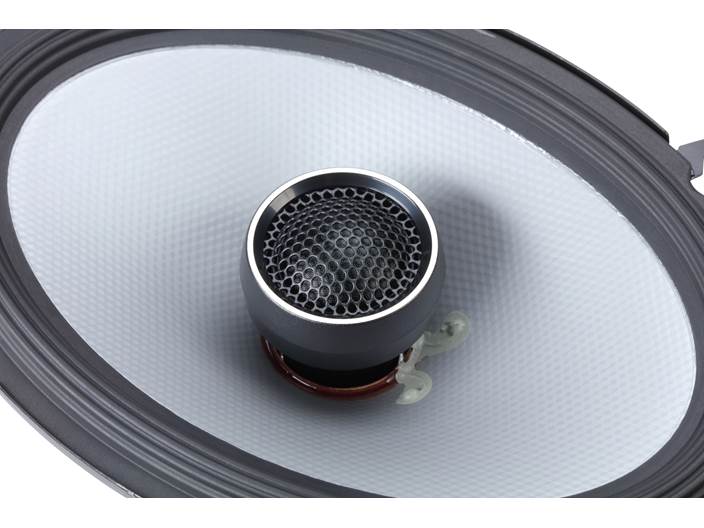

- 1" cloth dome tweeter
- handles up to 75 watts RMS (230 watts peak power)
- frequency response: 75-40,000 Hz
- impedance: 4 ohms
- sensitivity: 88 dB
- mounting depth: 2.374"
- grilles not included
- Hi-Res Audio Certified
-
- Two 2-way speakers
- 2 Bottom mount brackets
- Two 6x8 Special application brackets
- Two 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Eight 1-1/8" Screws
- Eight 3/8" Screws
- 8 Speed clips
- 8 Flat washers
- 8 Spacers
- 2 Adhesive backed gaskets
- Warranty information
- On-line product registration information
- Important Notice sheet
- Declaration of conformity
- Template and specs on box
| General | ||
|---|---|---|
|
|
6X8 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Polypropylene/Glass Fiber/Mica | |
|
|
Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
|
|
Dome | |
| Tweeter Material | Cloth | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
|
|
4 | |
| Weather-resistant | No | |
| Grilles Included | No | |
|
|
1 Year | |
|
|
1 Year | |
| Specifications | ||
|---|---|---|
| Sensitivity (1W at 1 meter) | 88 | |
| Sensitivity at 2.83 volts | N/A | |
|
|
75 - 40k Hz | |
| Maximum RMS Wattage | 75 | |
|
|
230 | |
|
|
2 3/8 | |
|
|
2 13/16 | |
| Cutout Diameter (Inches) | 7.15 x 4.884 | |
|
|
0.418 | |
|
|
5.484 | |
|
|
7.7 | |
