Product info:
- 12" Status Series subwoofer with dual 4-ohm voice coils
- pulp/mica cone with carbon-fiber dust cap
- High-Amplitude Multi-Roll (HAMR) rubber surround
- cast aluminum frame
- frequency response: 26-200 Hz
- power handling: 800 watts RMS (400 watts per coil)
- peak power handling: 2400 watts
- sensitivity: 83.7 dB
- top-mount depth: 7.35"
- cutout diameter: 11"
- sealed box volume: 0.87-2.12 cu. ft.
- ported box volume: 1.12-2.12 cu. ft.

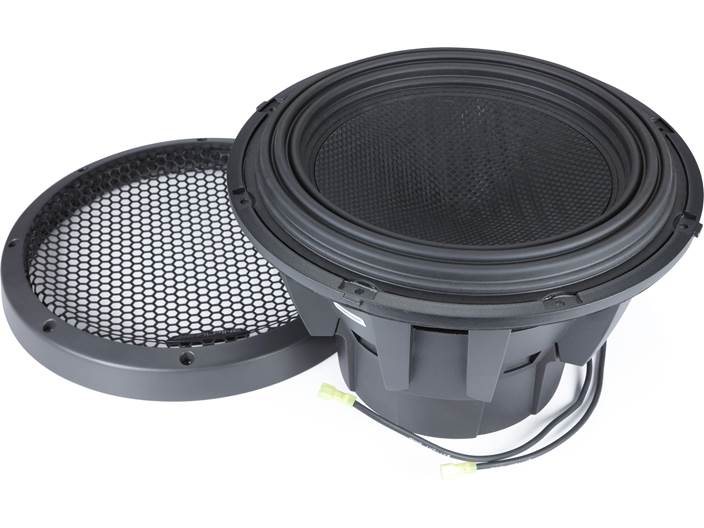

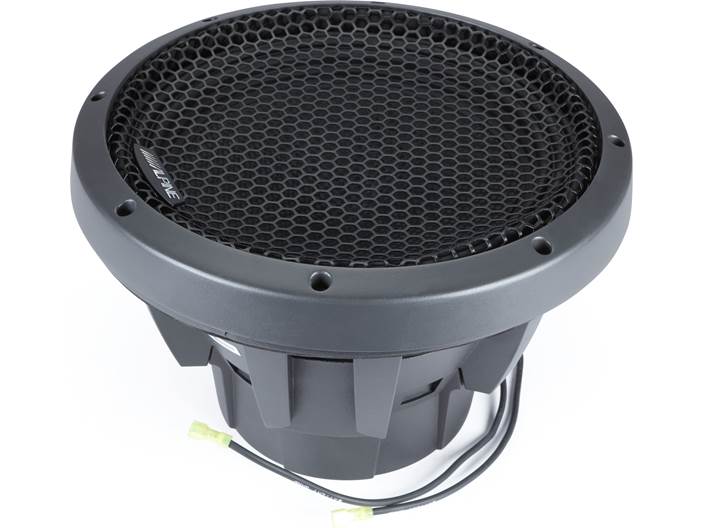

- mesh grille and aluminum trim ring included
- warranty: 1 year
- MFR # HDZ-W12
- Item # 500HDZW12
- One 12" Dual 4-ohm voice coil subwoofer
- Grille
- Aluminum trim ring
- Two voice coil jumpers (installed)
- 3mm Hex key
- Application guide (English/ French)
- On-line product registration information
- Warranty information (English/ French)
- Important Notice (English/ French)
| Features and Specs | ||
|---|---|---|
|
|
12-inch | |
|
|
2, 8 | |
|
|
Pulp-Mica | |
|
|
Rubber | |
| Basket Material | Aluminum | |
| Grille | Black, Steel mesh, Aluminum tr | |
|
|
No | |
|
|
Yes | |
|
|
83.7 dB at 1 watt |
|
|
|
26 - 200 Hz | |
|
|
800 | |
|
|
2400 | |
|
|
7 3/8 | |
|
|
N/A | |
|
|
11 | |
|
|
12.53 | |
|
|
12.53 | |
|
|
41.33 | |
|
|
29 | |
|
|
0.6 | |
|
|
20 | |
|
|
1 Year | |
|
|
1 Year | |
| Box Requirements | ||
|---|---|---|
|
|
1.32 | |
|
|
0.87 | |
|
|
2.12 | |
|
|
1.98 | |
|
|
1.12 | |
|
|
2.12 | |
|
|
N/A | |
|
|
N/A | |
